MART100KP SERIES
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
VOLTAGE-28.0 TO 400 Volts
100000 Watt Peak Pulse Power
FEATURES
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
• Glass passivated junction
• 100000W Peak Pulse Power
capability on 6.4/6.9µs waveform
• Excellent clamping capability
• Repetition rate (duty cycle):0.05%
• Low incremental surge resistance
• Fast response time: typically less
than 1.0 ps from 0 volts to BV
• High temperature soldering guaranteed:
265°C/10 seconds/.375", (9.5mm) lead
length, 5lbs., (2.3kg) tension
• 100KW Tranisent Voltage Suppressor (TVS) are
designed for aircraft applications requiring high power
transient protection.This includes various treats such as
"Waveform 4" at 6.4/69 µs per RTCA/DO-160E Section 22
P-600
1.0(25.40) MIN
.360(9.14)
.340(8.64)
DIA
.360(9.14)
.340(8.64)
.052(1.33)
.048(1.22)
1.0(25.40) MIN
MECHANICAL DATA
Case:Molded plastic over glass passivated junction
Terminals: Matte Tin Plated Axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bipolar
Mounting Position: Any
Weight: 0.07 ounce, 2.5 gram
Dimensions in inches (milimeters)
DEVICES FOR BIPOLAR APPLICATIONS
For Bidirectional use C or CA Suffix for types MART100KP28 thru types MART1000KP400
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
RATING
Peak Pulse Power Dissipation on 6.4/6.9µs
waveform
Peak Pulse Current of on 6.4/69µs waveform
Steady State Power Dissipation at Tl=75 °C
Lead Lengths.375", (9.5mm)
Peak Forward Surge Current, 8.3ms Sine-Wave
Superimposed on Rated Load, (JEDEC Method)
Operatings and Storage Temperature Range
Certified RoHS Compliant
SYMBOL
P
PPM
I
PPM
P
M
(AV)
I
FSM
T
J
, T
STG
VALUE
Minimum 100000
SEE TABLE 1
8.0
UNITS
Watts
Amps
Watts
400.0
-55 to +175
Amps
°C
10/10/2018
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
MRT100KP Series Rating and Characteristic Curves
Fig. 1 - Peak Pulse Power Rating Curve
1000
P
PPM
-Peak Pulse Power s. Pulse Time - KW
Non-repetitive Pulse
100
10
1
100ns
1µs
10µs
100µs
t
d
- Pulse Width (sec.)
Fig.2 - Pulse Derating Curve
100
87.5
75
62.5
Peak Pulse Power (P
PP
)
or Current (I
PP
)
Derating in Percentage,%
50
37.5
25
12.5
0
0
25
50
75
100
125
150
175
200
T
A
- Ambient Temperature (°C)
10/10/2018
MDE Semiconductor, Inc.
78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel: 760-564-8656 • Fax: 760-564-2414
1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com
MART100KP Series Rating and Characteristic Curves
DRAFT

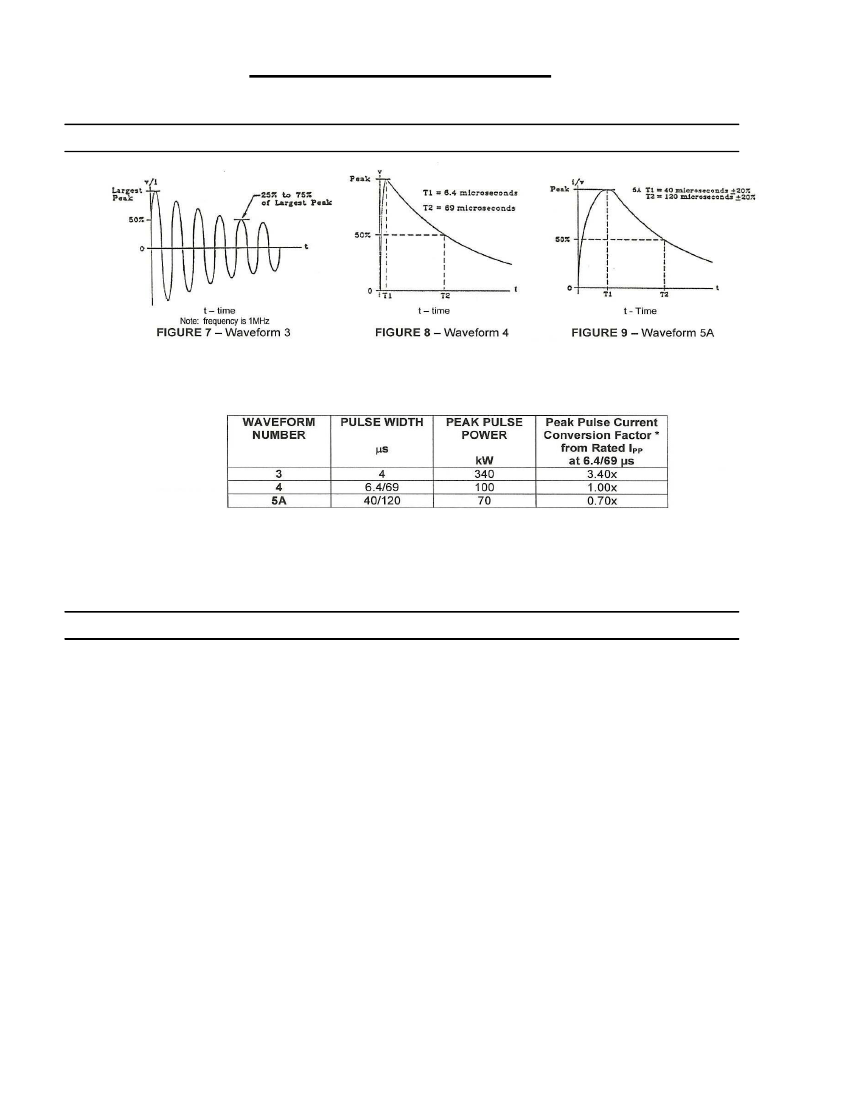

Note: The 1 Mhz damped oscillatory waveform (3) has an effective oulse width of 4 µs. Equivalent
peak pulse power at each of the pulse widths represented in the RTCA/DO-160E for waveforms 3, 4
and 5A (above) has been determined referencing Figure 1.
* Multiply by the conversion factor shown with reference to the maximum rated Ipp in the
Electrical Characteristics Table.
UPSCREENING
The specific screening flow for MART100KP upscreening includes the following process steps on
the finished product.
Temperature Cycling:
100% surge testing:
High Temp Reverse Bias:
10 cycles, -55 to +150 deg C
3 times(each direction for bidirectional)
24 hours (each direction for bidirectional)
10/10/2018
