HQ0402CG1R0B500 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> HQ0402CG1R0B500

HQ0402CG1R0B500: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.000001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size173KB，2 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

HQ0402CG1R0B500 Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.000001uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

HQ0402CG1R0B500 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Meritek Electronics
package instruction	, 0402
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.000001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0402
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

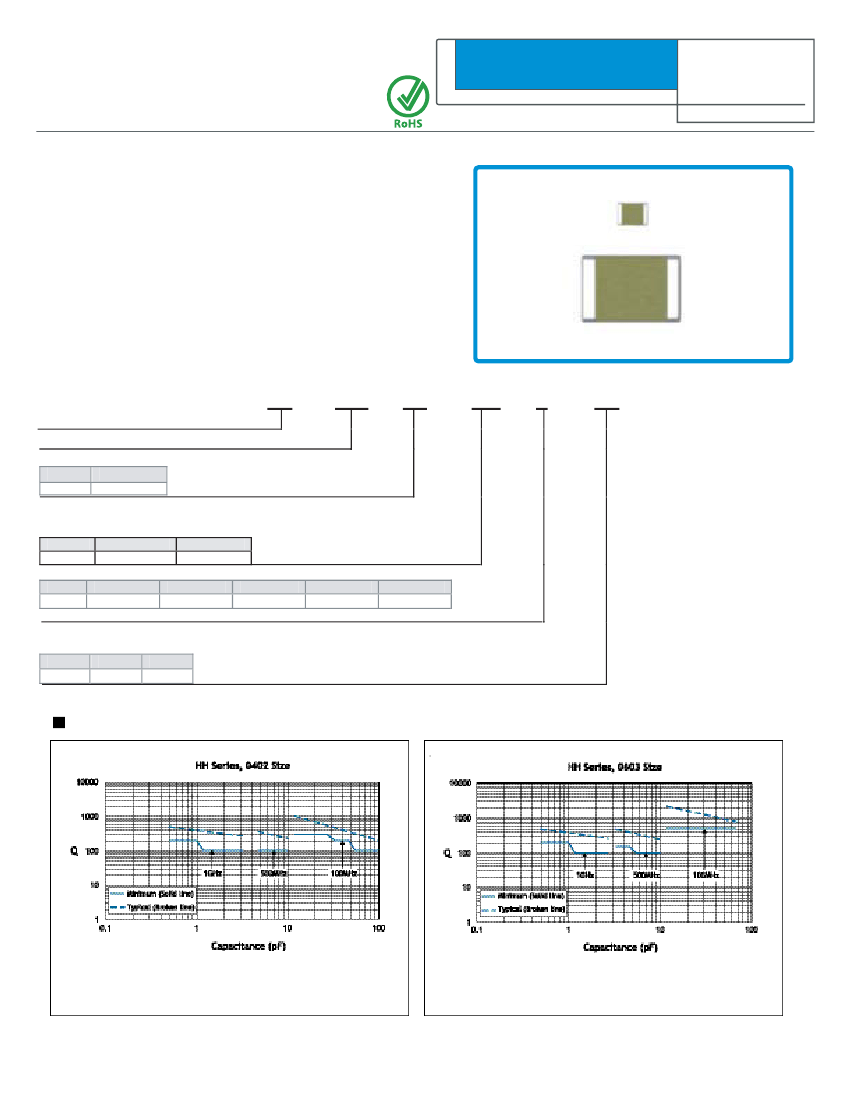

Multilayer Ceramic Capacitors

Series

(High Q)

MERITEK

EATURES

•

Surface mount device with high reliability

Hi-Q and low ESR at high frequencies

Low capacitance with tight tolerance

Excellent temperature characteristics

ART NUMBER SYSTEM

Meritek Series

Size

Dielectric

CODE

COG (NPO)

0603

4R7

500

Capacitance

Expressed in picofarads. First 2 digits are significant digits. Third digit denotes number

of zeros to follow. Use R for decimal point for values less than 10pF.

CODE

8R2

101

8.2

100

Tolerance

±.10pF

±.25pF

For values less than 10 pF use C or D

CODE

±.50pF

±2%

±5%

Rated Voltage

2 significant digits + number of zeros.

CODE

250

500

25V

50V

ELECTRICAL CHARACTERISTICS

Fig. 1 Q factor specification vs. Specific frequency for 0402

Fig. 2 Q factor specification vs. Specific frequency for 0603
