BR101 datasheet, PDF - EEWORLD Datasheet

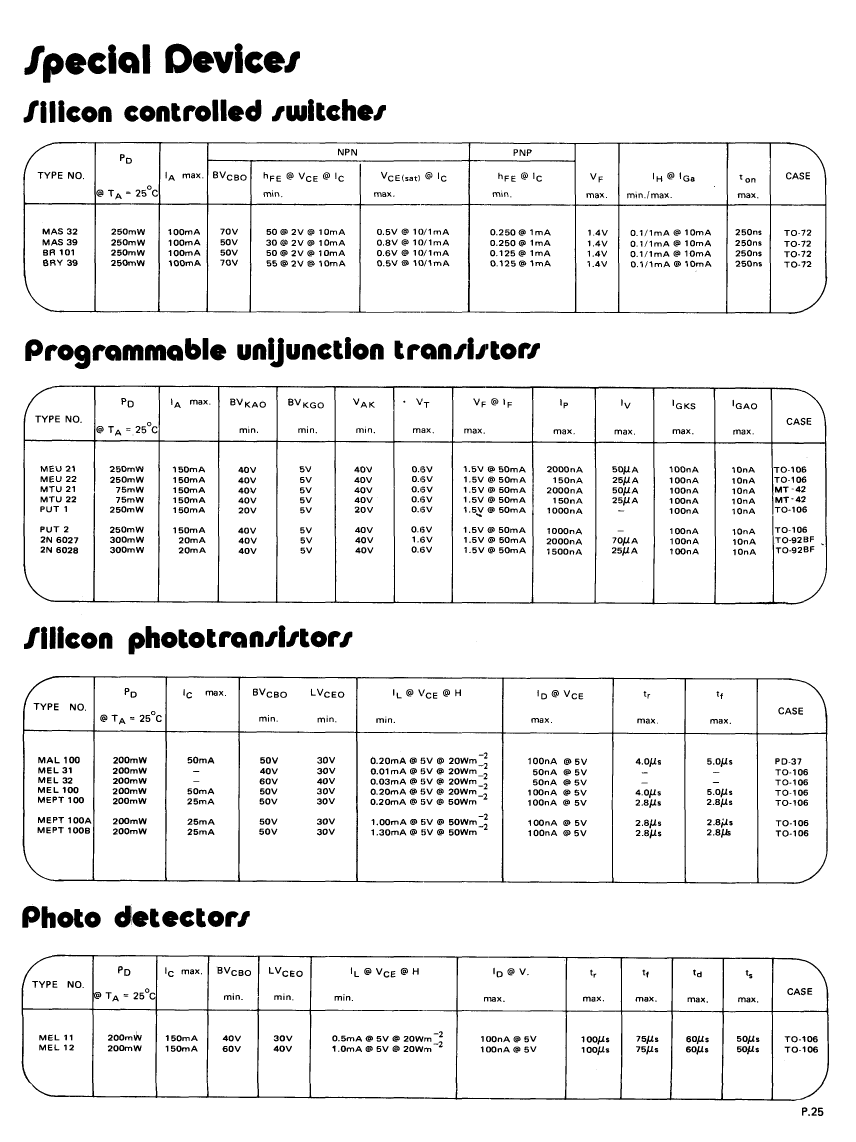

BR101: DescriptionSilicon Controlled Switch, TO-72, TO-72, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size49KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

BR101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR101	-	-	View	Buy Now

Silicon Controlled Switch, TO-72, TO-72, 3 PIN

Parameter Name	Attribute value
Maker	Micro Electronics
Parts packaging code	TO-72
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	unknow
Shell connection	ANODE
Configuration	SINGLE
DC Emitter Current (NPN) - Max.	0.1 A
DC Emitter Current (PNP) - Max.	0.1 A
Maximum holding current	1 mA
JEDEC-95 code	TO-72
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Maximum on-state current	175 A
Maximum operating temperature	155 °C
Minimum operating temperature	-60 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Off-state repetitive peak voltage	50 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SILICON CONTROLLED SWITCH

	BR101	2N6028	2N6027
Description	Silicon Controlled Switch, TO-72, TO-72, 3 PIN	Programmable UJT, TO-92, TO-92BF, 3 PIN	Programmable UJT, TO-92, TO-92BF, 3 PIN
Parts packaging code	TO-72	TO-92	TO-92
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3
Contacts	3	3	3
Reach Compliance Code	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-72	TO-92	TO-92
JESD-30 code	O-MBCY-W3	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum on-state current	175 A	150 A	150 A
Maximum operating temperature	155 °C	100 °C	100 °C
Minimum operating temperature	-60 °C	-50 °C	-50 °C
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM
Trigger device type	SILICON CONTROLLED SWITCH	PROGRAMMABLE UJT	PROGRAMMABLE UJT
Maker	Micro Electronics	-	Micro Electronics
Maximum peak current	-	0.15 µA	2 µA
Maximum power dissipation	-	0.3 W	0.3 W
Valley Current-Mi	-	25 µA	50 µA
