MIC5392/3
High-Performance Dual 150mA LDO
General Description
The MIC5392/3 is a tiny dual low-dropout linear regulator
ideally suited for portable electronics. It is ideal for general
purpose/digital applications which require high-power
supply ripple rejection (PSRR) >60dB, eliminating the need
for a bypass capacitor and providing two enable pins for
maximum flexibility. The MIC5392/3 integrates two high-
performance; 150mA LDOs into a tiny 6-pin, 1.2mm ×
1.2mm leadless DFN package, which provides exceptional
thermal package characteristics.
The MIC5392/3 is a µCap design which enables operation
with very small ceramic output capacitors for stability,
thereby reducing required board space and component
cost. The combination of low-drop-out voltage, high power
supply rejection and exceptional thermal package
characteristics makes it ideal for powering mobile phones
camera modules, image sensors, PDAs, MP3 players and
audio codec power applications.
The MIC5392/3 is available in fixed-output voltages in the
tiny 6-pin 1.2mm × 1.2mm leadless DFN package which is
2
only 1.44mm in area. Additional voltage options are
available.
Datasheets and support documentation are available on
Micrel’s web site at:
www.micrel.com.
Features
•
2.5V to 5.5V input voltage range
•
Two 150mA output current LDOs
•
High output accuracy
−
±2% initial accuracy
•
Low quiescent current (32µA per LDO)
•
Stable with 1µF ceramic output capacitors
•
Independent enable pins
•
Low dropout voltage (155mV at 150mA)
•
Thermal-shutdown protection
•
Current-limit protection
•
Internal 25Ω output discharge circuit (MIC5393)
•
1.2mm × 1.2mm Extra Thin DFN package (H ≤ 0.4mm)
•
1.2mm × 1.2mm Thin DFN package
Applications
•
•
•
•
•
•
Smart phones
Tablet PCs
GPS, PMP, PDAs, and handhelds
Audio codec power
Portable electronics
5V systems
Typical Application
Camera DSP Power Supply Circuit
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •
http://www.micrel.com
December 18, 2014
Revision 1.3
Micrel, Inc.
MIC5392/3
Ordering Information
Part Number
(1)
Manufacturing
Part Number
MIC5392-4CYMT
MIC5392-FMYMX
MIC5392-MFYMT
MIC5392-MGYMT
MIC5392-PGYMX
MIC5392-PMYMT
MIC5392-PMYMX
MIC5392-PPYMX
MIC5392-SGYMX
MIC5392-SSYMT
MIC5392-SSYMX
MIC5393-FMYMX
MIC5393-MMYMX
MIC5393-PGYMX
MIC5393-PMYMX
MIC5393-PPYMT
MIC5393-PPYMX
MIC5393-SGYMT
MIC5393-SGYMX
MIC5393-SSYMT
MIC5393-SSYMX
MIC5393-FMYMT
MIC5393-GMYMT
MIC5393-GMYMX
Marking
Code
RJ
RX
RP
RD
1R
RM
2R
3R
4R
RL
5R
U6
UV
U5
UU
UL
U3
UB
U2
UR
U4
UP
UT
U7
Voltage
1.2/1.0V
1.5/2.8V
2.8/1.5V
2.8/1.8V
3.0/1.8V
3.0/2.8V
3.0/2.8V
3.0/3.0V
3.3/1.8V
3.3/3.3V
3.3/3.3V
1.5/2.8V
2.8/2.8
3.0/1.8V
3.0/2.8V
3.0/3.0V
3.0/3.0V
3.3/1.8V
3.3/1.8V
3.3/3.3V
3.3/3.3V
1.5/2.8V
1.8/2.8V
1.8/2.8V
Junction
Temperature
Range
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
Package
(2)
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
6-Pin 1.2mm × 1.2mm Thin DFN
6-Pin 1.2mm × 1.2mm Thin DFN
MIC5392-1.2/1.0YMT
MIC5392-1.5/2.8YMX
(
4)
MIC5392-2.8/1.5YMT
MIC5392-2.8/1.8YMT
MIC5392-3.0/1.8YMX
(
4)
MIC5392-3.0/2.8YMT
MIC5392-3.0/2.8YMX
(
MIC5392-3.0/3.0YMX
(
MIC5392-3.3/1.8YMX
(
4)
4)
4)
MIC5392-3.3/3.3YMT
MIC5392-3.3/3.3YMX
(
MIC5393-1.5/2.8YMX
(
MIC5393-2.8/2.8YMX
(
MIC5393-3.0/1.8YMX
(
MIC5393-3.0/2.8YMX
(
MIC5393-3.0/3.0YMT
(
4)
3
)
3
)
3
)
3
)(
4)
3
)
3
)
MIC5393-3.0/3.0YMX
(
MIC5393-3.3/1.8YMT
(
3
)
3
)
MIC5393-3.3/1.8YMX
(
MIC5393-3.3/3.3YMT
(
3
)
3
)
MIC5393-3.3/3.3YMX
(
MIC5393-1.5/2.8YMT
MIC5393-1.8/2.8YMT
MIC5393-1.8/2.8YMX
Notes:
6-Pin 1.2mm × 1.2mm Extra Thin
DFN
1. Other voltages available. Contact Micrel for details.
2. Thin DFN and Extra Thin DFN are GREEN, RoHS-compliant package. Lead finish is NiPdAu. Mold compound is Halogen Free.
3. MIC5393 offers Auto-Discharge function.
4. Contact factory for availability.
December 18, 2014
2
Revision 1.3
Micrel, Inc.
MIC5392/3
Pin Configuration
6-Pin 1.2mm × 1.2mm Thin DFN (MT)
6-Pin 1.2mm × 1.2mm Extra Thin DFN (MX)
(Top View)
Pin Description
Pin Number
1
2
3
4
5
6
EP
Pin Name
VOUT1
VOUT2
GND
EN2
VIN
EN1
ePad
Pin Function
Output regulator 1. Connect a capacitor to ground.
Output regulator 2. Connect a capacitor to ground.
Ground.
Enable input for regulator 2. Logic High enables operation of regulator 2. Logic Low will shut down
regulator 2. Do not leave floating.
Input voltage supply. Connect a capacitor to ground.
Enable input for regulator 1. Logic High enables operation of regulator 1. Logic Low will shut down
regulator 1. Do not leave floating.
Exposed heat sink pad. Connect to ground.
December 18, 2014
3
Revision 1.3
Micrel, Inc.
MIC5392/3
Absolute Maximum Ratings
(5)
Supply Voltage (V
IN
) ........................................ –0.3V to +6V
Enable Voltage (V
EN1
, V
EN2
). ............................ –0.3V to VIN
Power Dissipation (P
D
) ........................... Internally Limited
(7)
Lead Temperature (soldering, 10sec.) ....................... 260°C
Junction Temperature (T
J
) ........................ –40°C to +125°C
Storage Temperature (T
S
) ......................... –65°C to +150°C
ESD Rating
(8)
.................................................................. 2kV
Operating Ratings
(6)
Supply Voltage (V
IN
) ..................................... +2.5V to +5.5V
Enable Voltage (V
EN1
, V
EN2
) .............................. –0.3V to V
IN
Junction Temperature (T
J
) .......................... –40°C to +85°C
Junction Thermal Resistance
1.2mm×1.2mm Thin DFN-6 (θ
JA
) ..................... 173°C/W
1.2mm×1.2mm Extra Thin DFN-6 (θ
JA
) ........... 173°C/W
Electrical Characteristics
(9)
V
IN
= V
EN1
= V
EN2
= V
OUT
+ 1V; higher of the two regulator outputs; I
OUTLDO1
= I
OUTLDO2
= 100µA; C
OUT1
= C
OUT2
= 1µF; T
J
= 25°C,
Bold
values indicate –40°C to +125°C, unless noted.
Parameter
Output Voltage Accuracy
Line Regulation
Load Regulation
Dropout Voltage
Condition
Variation from nominal V
OUT
Variation from nominal V
OUT
; –40°C to +125°C
V
IN
= V
OUT
+1V to 5.5V
I
OUT
= 100µA to 150mA
I
OUT
= 50mA
I
OUT
= 150mA
V
EN1
= High; V
EN2
= Low; I
OUT
= 0mA
V
EN1
= Low; V
EN2
= High; I
OUT
= 0mA
V
EN1
= V
EN2
= High; I
OUT1
= I
OUT2
= 0mA
V
EN1
= V
EN2
= 0V
f = 1kHz; C
OUT
= 1µF
V
OUT
= 0V
C
OUT
= 1µF, 10Hz to 100kHz
MIC5393 Only; V
EN1
= V
EN2
= 0V; V
IN
= 3.6V
200
Min.
–2.0
–3.0
0.02
0.3
50
155
32
32
57
0.05
60
325
100
25
550
Typ.
Max.
+2.0
+3.0
0.3
1
110
310
45
45
85
1
Units
%
%/V
%
mV
Ground Pin Current
Ground Pin Current in
Shutdown
Ripple Rejection
Current Limit
Output Voltage Noise
Auto-Discharge NFET
Resistance
Enable Inputs (EN1/EN2)
Enable Input Voltage
µA
µA
dB
mA
µV
RMS
Ω
Logic Low
Logic High
V
IL
≤ 0.2V
V
IH
≥ 1.2V
C
OUT
= 1µF
1.2
0.01
0.01
50
0.2
V
Enable Input Current
Turn-On Time
Notes:
1
1
125
µA
µs
5. Exceeding the absolute maximum rating may damage the device.
6. The device is not guaranteed to function outside its operating rating.
7. The maximum allowable power dissipation of any T
A
(ambient temperature) is P
D(max)
= (T
J
(max) – T
A
) / θ
JA
. Exceeding the maximum allowable
power dissipation will result in excessive die temperature, and the regulator will go into thermal shutdown.
8. Devices are ESD sensitive. Handling precautions recommended. Human body model, 1.5kΩ in series with 100pF.
9. Specification for packaged product only.
December 18, 2014
4
Revision 1.3
Micrel, Inc.
MIC5392/3

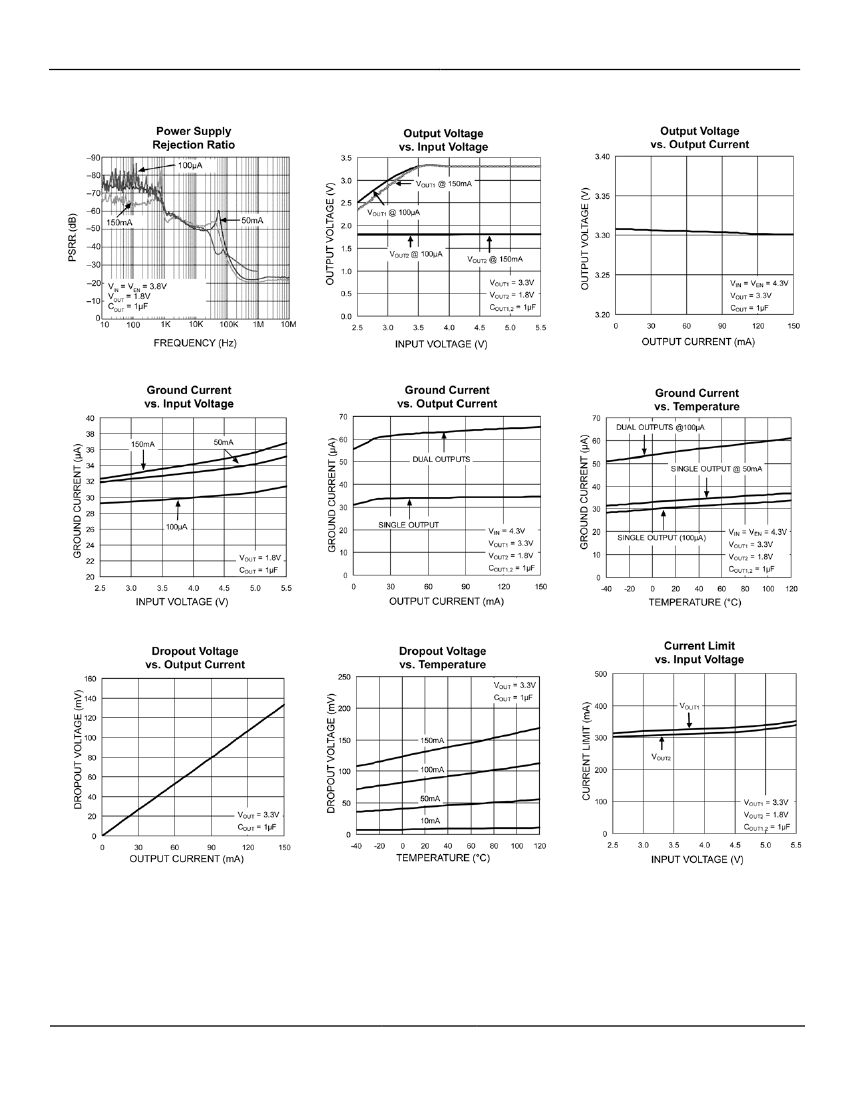

Typical Characteristics
December 18, 2014
5
Revision 1.3
