20021221-00022T9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 20021221-00022T9LF

20021221-00022T9LF: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size165KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

20021221-00022T9LF Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE

20021221-00022T9LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compli
Other features	SHROUDED
body width	0.209 inch
subject depth	0.22 inch
body length	0.675 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (1) OVER PALLADIUM NICKEL (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.1962 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	20021221
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

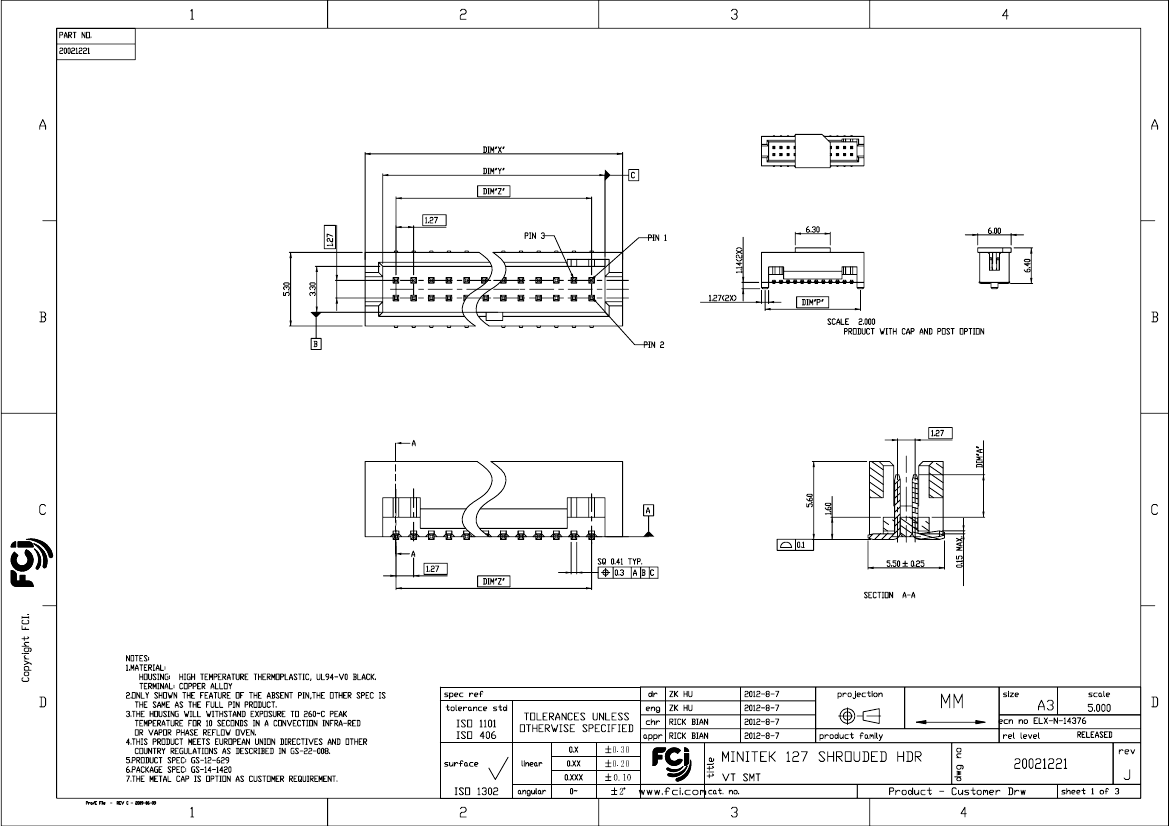

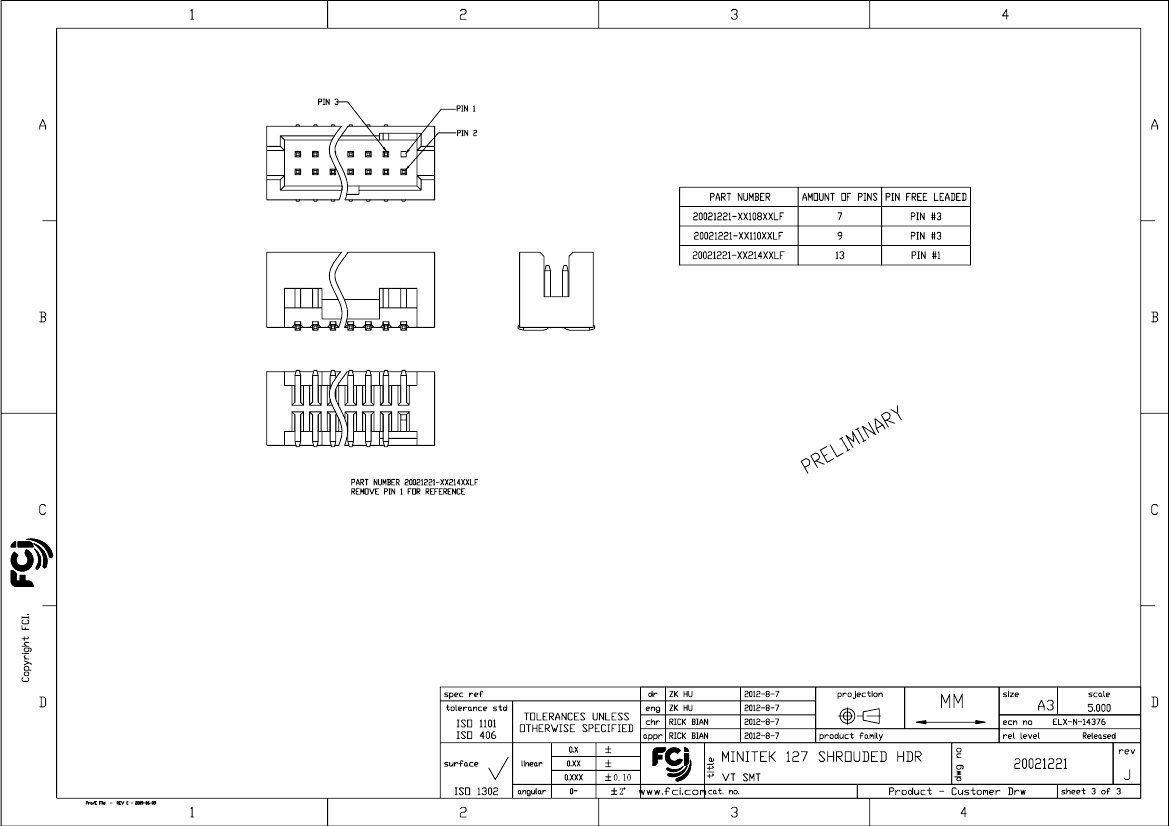

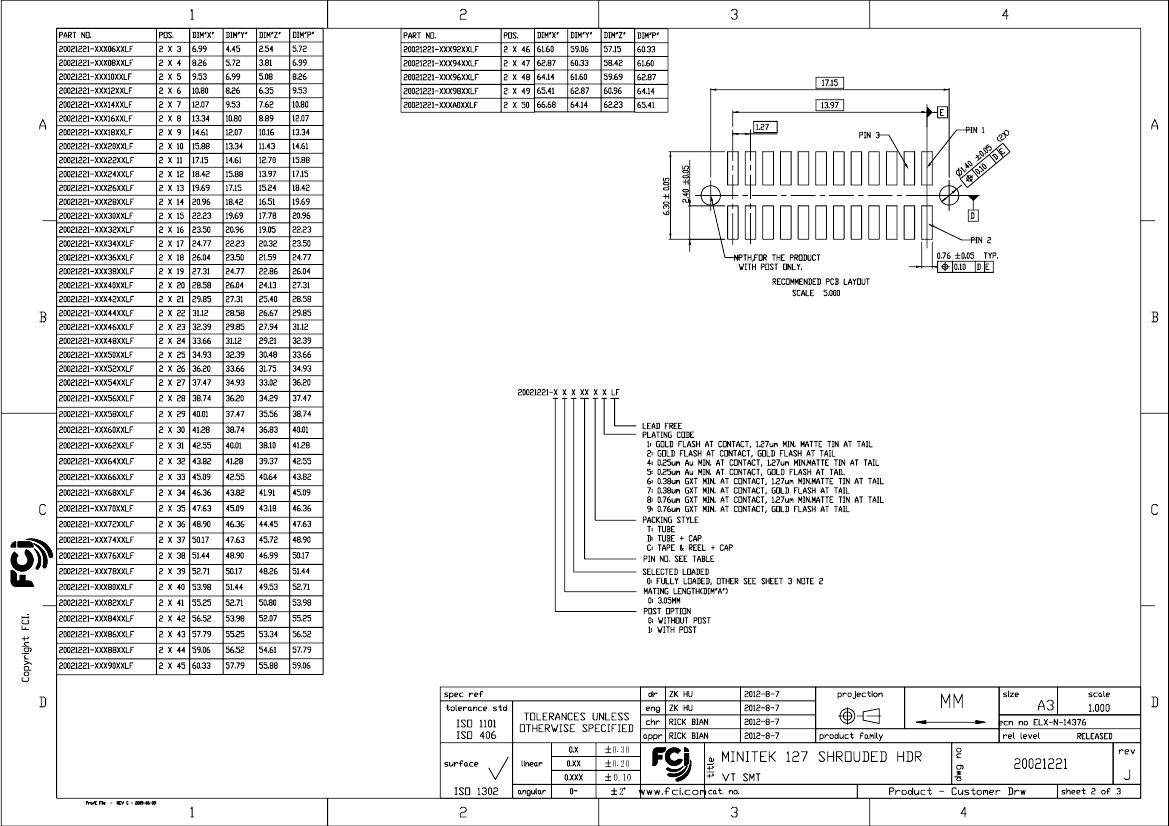

Preview

Download Datasheet

View All

¢ ¡¢

£ ¤

PDS: Rev :J

STATUS:Released

Printed: Mar 29, 2013
