HM2P95PDJ1N0E9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P95PDJ1N0E9

HM2P95PDJ1N0E9: DescriptionBoard Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size304KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P95PDJ1N0E9 Overview

Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal

HM2P95PDJ1N0E9 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	8
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	200
UL Flammability Code	94V-0

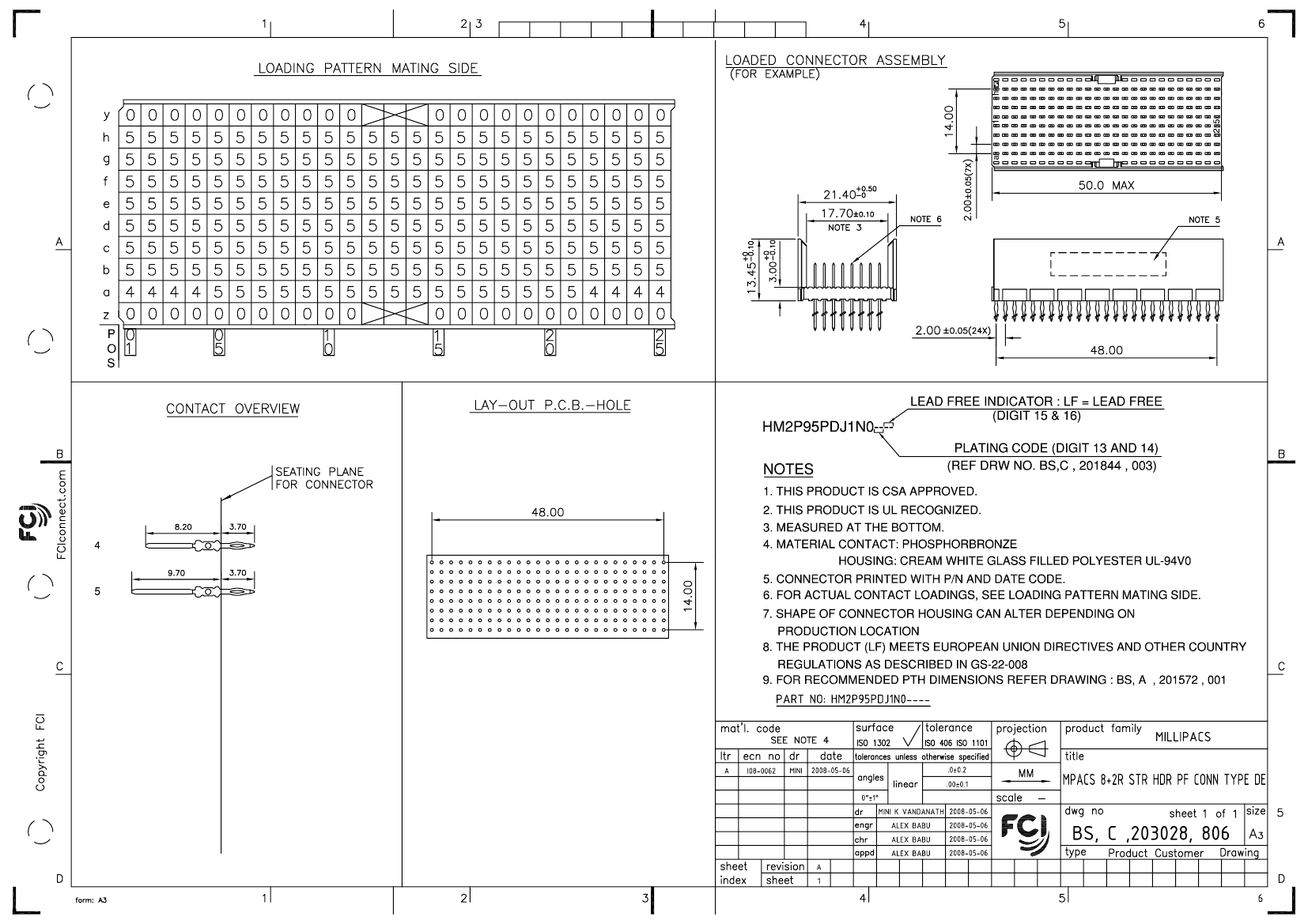

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: May 13, 2008

HM2P95PDJ1N0E9 Related Products

	HM2P95PDJ1N0E9	HM2P95PDJ1N0N9LF	HM2P95PDJ1N0Z1LF	HM2P95PDJ1N0Z1	HM2P95PDJ1N0E9LF	HM2P95PDJ1N0N9
Description	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 200 Contact(s), 8 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compli	compliant	compliant	compliant	compli	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e3	e3	e0	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	8	8	8	8	8	8
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	200	200	200	200	200	200
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
