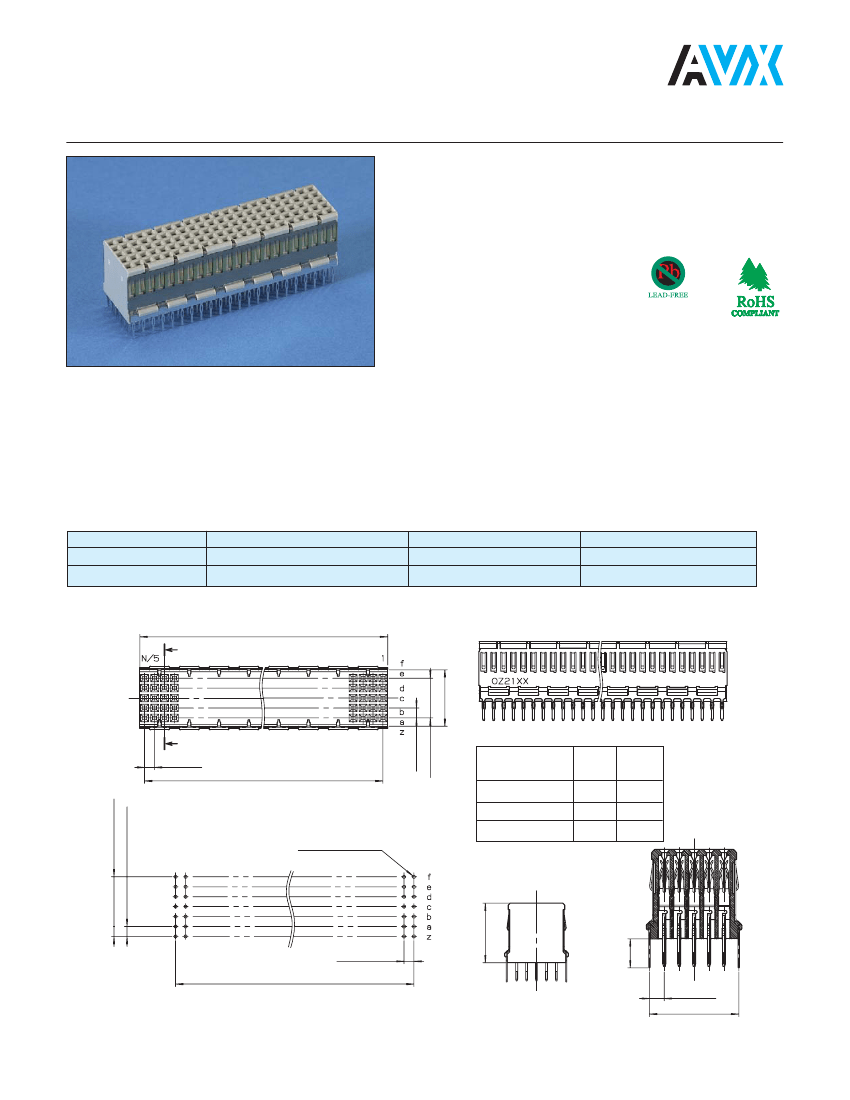

Type B Vertical Female
for Backplanes
Series 8072
•
•
•
•
95, 110, 125 contacts in a 5 x 19, 5 x 22 or 5 x 25 configuration
Available with or without side shields
Designed for gas tight press-fit installation
These connectors should be used in conjunction with a Type A
Vertical Female connector
LEAD-FREE COMPATIBLE
COMPONENT
27
27
27
27
27
27
8072
8072
8072
8072
8072
8072
095
095
110
110
125
125
001
011
000
010
000
010
XXX+
= Type B19 Vertical Female without side shields
XXX+
= Type B19 Vertical Female with side shields
XXX+
= Type B22 Vertical Female without side shields
XXX+
= Type B22 Vertical Female with side shields
863+
= Type B25 Vertical Female without side shields
863+
= Type B25 Vertical Female with side shields
Contact Area
0.1µm min. Au.65µm Pd/Ni
0.76µm min. Au
Press-fit Area
1.5-3.0µm Sn
1.5-3.0µm Sn
Under Coat
1.2-3.0µm Ni
1.2-3.0µm Ni
XXX =
Plating Code
833
863
B MAX.
X
X
2.0 TYP.
2 x 4 = 8.0
11.4
2.0 TYP.
2 x (N/5-1) = A
2 x 6 = 12.0
±0.1
2.0
±0.1
TYP.
NO. OF
POSITIONS
95
110
125
A
36.0
42.0
48.0
B
38.0
44.0
50.0
N/5 x 7 -Ø0.6
±0.05
HOLE
12.0
2.0
±0.1
TYP.
2 x 24 = A
±0.1
RECOMMENDED P.C. BOARD LAYOUT
(COMPONENT SIDE)
3.7
2.0 TYP.
2 x 6 = 12.0
31
