82DA332M050HB2D

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 3300uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size183KB，3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

82DA332M050HB2D Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 3300uF, THROUGH HOLE MOUNT, RADIAL LEADED

82DA332M050HB2D Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1991582615
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance3300 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR86 mΩ
leakage current1.6248 mA
Manufacturer's serial number82DA
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current2380 mA
surface mountNO
Terminal shapeSNAP-IN

Preview

Download Datasheet
82DA
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-in, General Purpose
FEATURES
•
Maximum CV
•
General purpose design
•
Wide voltage range
•
Molded cover available in 2 or 3 terminal design with
standoffs

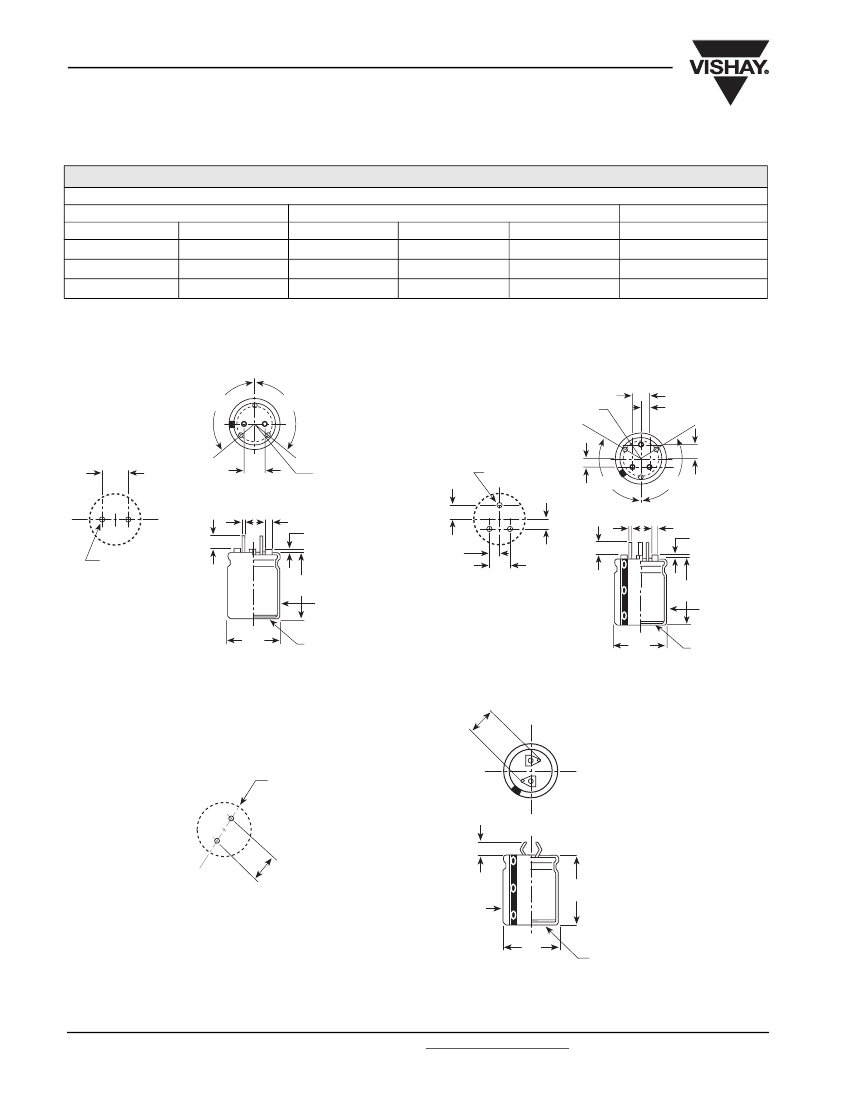

Fig.1 Component Outlines.
•
Replaces Type 82D
Pb-free
Available
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
ØD x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
Life validation test
at 85 °C
VALUE
0.87” x 1.00” [22.0 x 25.0]
to 1.57” x 3.18” [40.0 x 80.0]
- 40 °C to + 85 °C
33 µF to 270 000 µF
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 55 °C
+ 65 °C
MULTIPLIERS
2.0
1.7
1.4
1.0
FREQUENCY (Hz)
WVDC
16 - 49
50 - 199
200 - 400
50-60
0.85
0.83
0.80
300 - 1000
1.10
1.15
1.30
1000 AND UP
1.15
1.20
1.40
± 20 %
6.3 WVDC to 500 WVDC
Snap in
2000 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.5 x initial
specified limit.
Δ
DCL
≤
initial specified
limit
500 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.3 x initial
specified limit.
Δ
DCL
≤
2 x initial
specified limit
I = K CV
K = 4.0 at + 25 °C
I in µA, C in µF, V in Volts
+ 75 °C
+ 85 °C
Shelf life at 85 °C
DC leakage current
5 minute charge time
DIMENSIONS
in inches [millimeters]
CASE
CODE
HA
HB
HD
JA
JB
JC
JD
JE
KA
KB
KC
KD
KE
DIAMETER
D + 0.04 - 0 [+ 1.0 - 0]
0.87 [22.0]
0.87 [22.0]
0.87 [22.0]
1.00 [25.0]
1.00 [25.0]
1.00 [25.0]
1.00 [25.0]
1.00 [25.0]
1.18 [30.0]
1.18 [30.0]
1.18 [30.0]
1.18 [30.0]
1.18 [30.0]
LENGTH
L ± 0.08 [2.0]
1.00 [25.0]
1.18 [30.0]
1.57 [40.0]
1.00 [25.0]
1.18 [30.0]
1.38 [35.0]
1.57 [40.0]
2.00 [50.0]
1.00 [25.0]
1.18 [30.0]
1.38 [35.0]
1.57 [40.0]
2.00 [50.0]
STYLE 2
TYPICAL
WEIGHT
(
Grams
)
16.0
19.0
24.0
20.0
24.0
27.0
31.0
38.0
30.0
35.0
39.0
44.0
53.0
CASE
CODE
MB
MC
MD
ME
MF
MG
NA
NB
NC
ND
NE
NF
NG
DIAMETER
D + 0.04 - 0 [+ 1.0 - 0]
1.38 [35.0]
1.38 [35.0]
1.38 [35.0]
1.38 [35.0]
1.38 [35.0]
1.38 [35.0]
1.58 [40.0]
1.58 [40.0]
1.58 [40.0]
1.58 [40.0]
1.58 [40.0]
1.58 [40.0]
1.58 [40.0]
LENGTH
L ± 0.08 [2.0]
1.18 [30.0]
1.38 [35.0]
1.57 [40.0]
2.00 [50.0]
2.50 [63.0]
3.18 [80.0]
1.00 [25.0]
1.18 [30.0]
1.38 [35.0]
1.57 [40.0]
2.00 [50.0]
2.50 [63.0]
3.18 [80.0]
STYLE 2
TYPICAL
WEIGHT
(
Grams
)
48.0
54.0
61.0
74.0
91.0
113.0
48.0
58.0
66.0
81.0
103.0
128.0
183.0
www.vishay.com
227
Document Number: 42064
Revision: 23-May-05
For technical questions contact: aluminumcaps4@vishay.com
