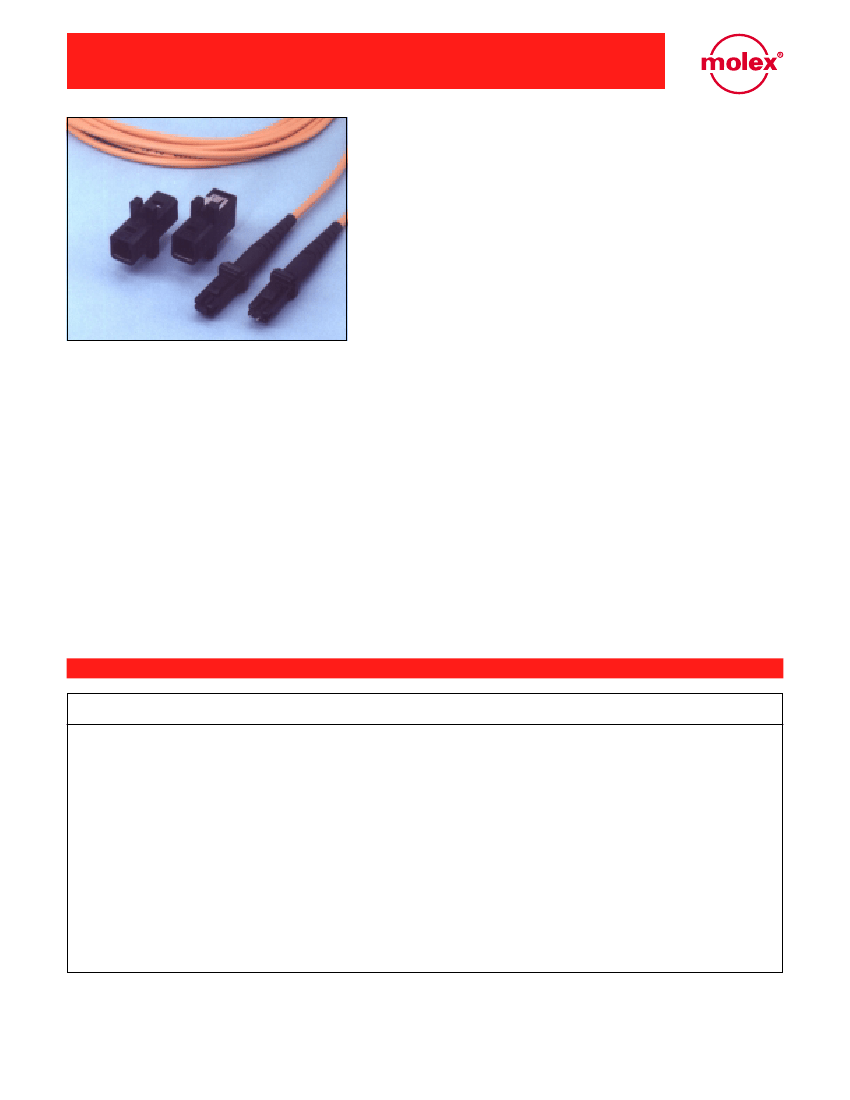

MT-RJ Connectors and Adapters
Features & Benefits
•
Versatile connector system
•
•
Increases port density required on
computer and networking related
hardware, panels, wall plates, and in
closets by 50%
Meets TIA-568A standards
Low insertion loss:
<.22 dB TYP MM
<.19 dB TYP SM
with a RJ-45 form factor
Duplex ferrule
Applications
•
Premise infrastructure
•
•
•
- Backbone
- Horizontal
Local Area Networks (LAN's)
Device terminations
Telecommunication networks
•
•
The MT-RJ connector was developed to meet growing customer demands for smaller, lower cost, and easier-to-use fiber optic
connectivity. The MT-RJ reduces the space required on panels, wall plates and in closets by 50% throughout the network.
This small form factor connector is ideal for fiber-to-the-desk applications. The design meets TIA requirements.
The MT-RJ uses an improved version of an industry standard RJ-45 type plug. This combination of a small form factor
connector with the familiar RJ-45 latching mechanism ensures the MT-RJ connector to be the perfect choice for horizontal
cabling needs to the desk-top.
Products in the MT-RJ connector solution family will include: field mountable connectors, duplex patchcords, hybrid
patchcords, pigtails, duplex adapters for MT-RJ cut-outs, as well as SC cut-outs, SixPaxs™ panels, hand polishing tooling,
and consumable kits.
The MT-RJ adapter occupies approximately the same space as a simplex SC adapter. When used in conjunction with the
SixPaxs panel, the MT-RJ duplex adapter fits most LGX* style hardware, offering more user-friendly characteristics in high
density applications.
*LGX is a trademark of Lucent Technologies
Performance and Specifications
Connector
Nominal Fiber OD
Insertion Loss
(Average standard deviation)
Return Loss (Minimum)
Cable Retention (Minimum)
Mating Durability for 200 Reconnects
Insertion Loss Change
Temperature Stability (-40°C to +75°C)
Insertion Loss Change
Tip Material
Multimode
125µm
.22, .09 dB
Singlemode
125µm
0.19, 06 dB
20 dB
Exceeds 15 lbs. / 67N
<.05 dB
45 dB
Exceeds 15 lbs. / 67N
<.03 dB
<.15 dB
<.15 dB
Composite
Composite
MOLEX FIBER OPTICS DIVISION
5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber
MT-RJ Connectors and Adapters

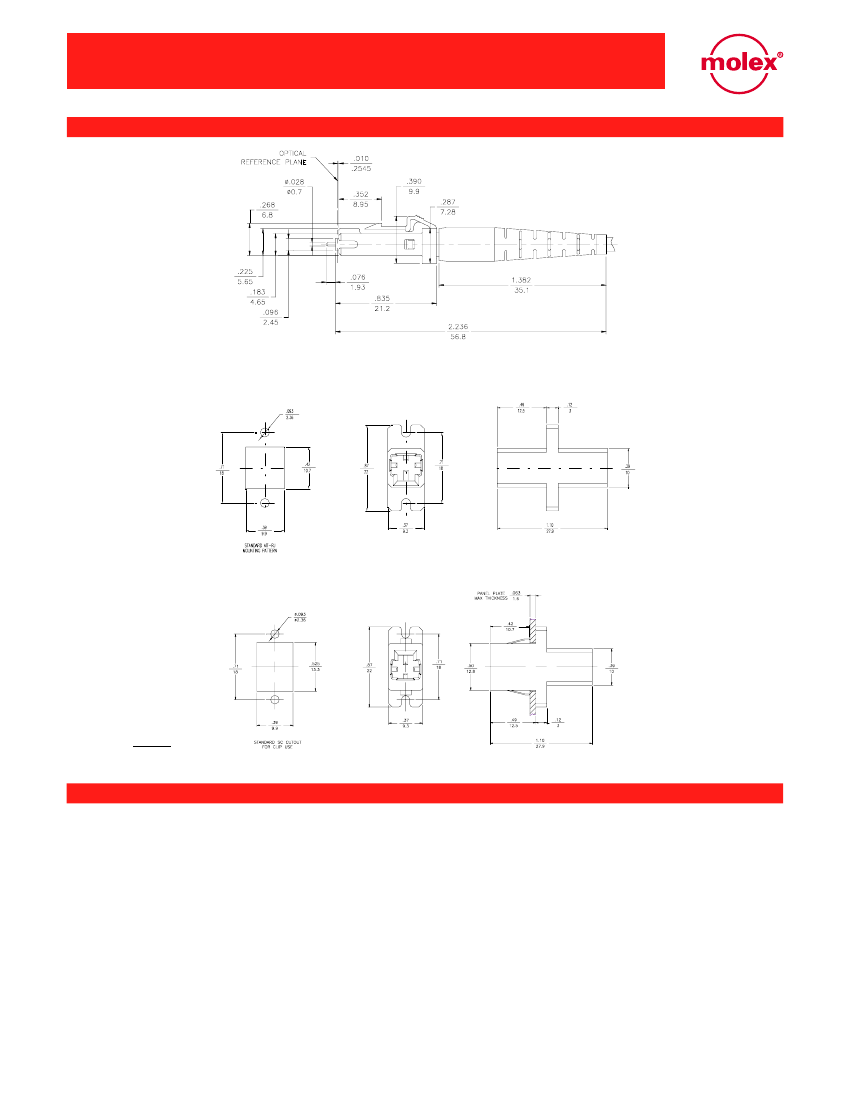

Mechanical Dimensions
MT-RJ Connector
MT-RJ Adapter for MT-RJ Cut-Out
MT-RJ Adapter for SC Cut-Out
All dimensions in
INCHES
mm
Standard Part Numbers
Order Number
86002-3000
86002-3400
86002-3030
86002-3430
86003-3000
86003-3400
86003-3030
86003-3430
86002-5000
86002-5400
86003-5000
86003-5400
86102-0000
86102-0100
86702-0000
86800-3650
86001-0083 Rev. 4
Description
MT-RJ connector, MM, male, beige boot
MT-RJ connector, MM, male, 90° beige boot
MT-RJ connector, MM, male, black boot
MT-RJ connector, MM, male, 90° black boot
MT-RJ connector, MM, female, beige boot
MT-RJ connector, MM, female, 90° beige boot
MT-RJ connector, MM, female, black boot
MT-RJ connector, MM, female, 90° black boot
MT-RJ connector, SM, male, blue boot
MT-RJ connector, SM, male, 90° blue boot
MT-RJ connector, SM, female, blue boot
MT-RJ connector, SM, female, 90° blue boot
MT-RJ adapter, standard MT-RJ cut-out
MT-RJ adapter, simplex SC cut-out with clip
MT-RJ tool kit (includes consumables)
MT-RJ adapter, SixPaxs
TM
USA/30MFO/2000.09
©2000, Molex
Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
