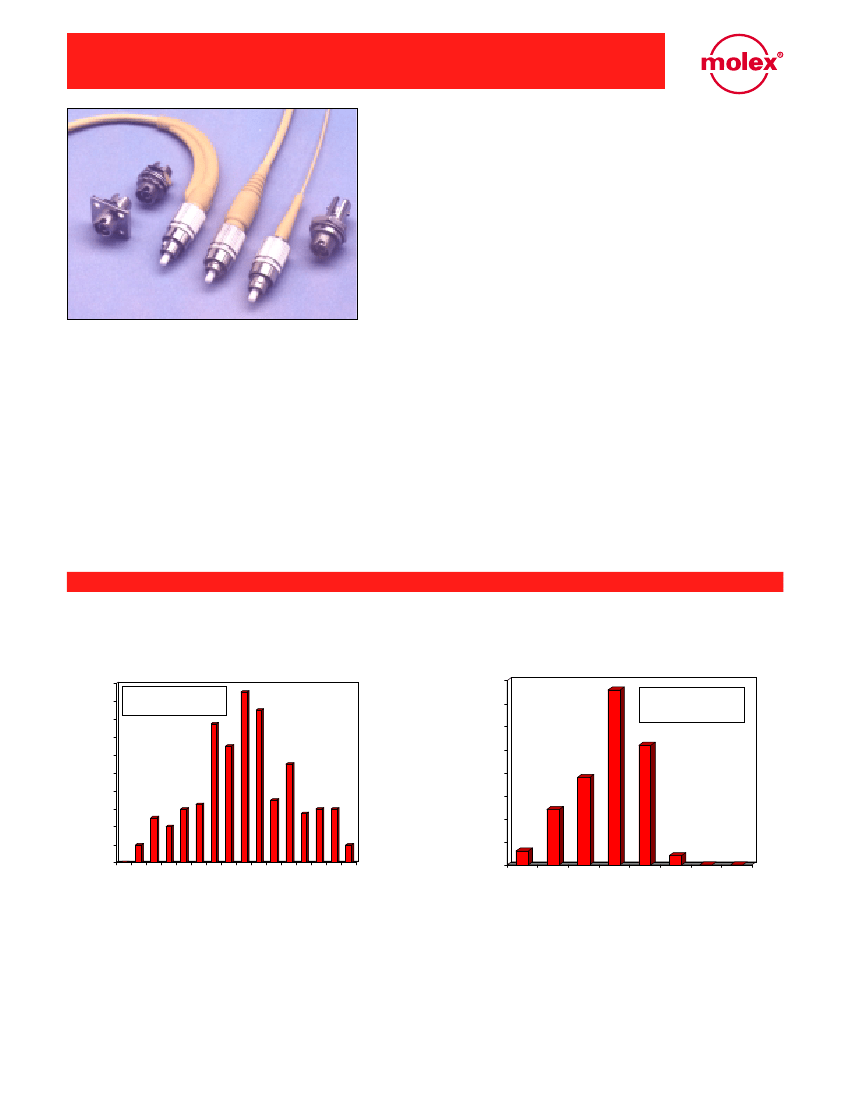

FC Connectors & Adapters
Features & Benefits
•
Designed to NTT-FC* standards
•
One-piece body design
- Reduces termination time
- Field installable - essentially
preassembled
Pre-polished ceramic ferrules
- Minimum polishing needed
- Maintains endface geometry,
-
physical contact
Low insertion loss:
< .34 dB TYP MM
< .17 dB TYP MM enhanced
< .15 dB TYP SM
Applications
•
Telecommunication networks
•
CATV networks
•
Active device termination
•
Instrumentation
•
•
FC fiber optic connectors are specifically designed for telecommunication applications. The Molex FC connector series is
designed to NTT-FC standards and provides true non-optical disconnect performance. They are fully compatible with existing
FC hardware.
The pre-assembled, one-piece body design and the pre-polished ferrules provide quick and economical terminations both in
factory and in-the-field settings. Also, with the pre-polished ferrule and the Molex termination method, a uniform endface
geometry is ensured, resulting in consistent optical performance.
Connector mating is achieved by using bulkhead feed-through adapters. These adapters combine a metal housing and either
a precision zirconia ceramic or a rugged phosphor bronze sleeve. Flange mount or “D” hole mount adapter styles are available.
*NTT-FC is a trademark of NTT Advanced Technology Corporation
Optical Performance Distribution
Insertion Loss Performance
(MM Enhanced ferrule, 62.5/125µm fiber)
20
18
16
Insertion Loss Performance
(SM ferrule, 9/125µm fiber)
40
Avg.: 0.17 dB
Std. Dev.: 0.06 dB
35
30
Avg.: 0.15 dB
Std. Dev.: 0.05 dB
14
Frequency
12
10
8
6
4
2
0
0
0.04
0.08
0.12
0.16
0.2
0.24
0.28
Frequency
25
20
15
10
5
0
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
Insertion Loss (dB)
Insertion Loss (dB)
MOLEX FIBER OPTICS DIVISION
5224 Katrine Avenue, Downers Grove, IL 60515 / Tel: 800-A1-FIBER or (630) 512-8787 Web: www.molex.com/fiber
FC Connectors & Adapters
Performance and Specifications
Characteristics
Durability
Temperature Range:
Storage
Operating
Thermal Aging
Temperature Cycling
Humidity Cycling
Vibration
Flex Test
Twist Test
Proof Test
Straight Pull Test
Side Pull Test
Stability
Impact
Units
~dB
Min.
-
Typ.
-
Max.
.04
Comments
EIA/TIA 455 - 21A, 200 cycles,
clean every 25 cycles
May be further limited by cable specifications
May be further limited by cable specifications
EIA/TIA 455 - 4A, 85ºC 14 days
EIA/TIA 455 - 3A, -40ºC to +75ºC, 42 cycles
EIA/TIA 455 - 5A, 95% RH 60ºC 14 days
EIA/TIA 455 - 11A, 10 to 50 Hz, 2 hrs./axis
Telcordia 326, 0.9kg, 100 cycles
Telcordia 326, 1.35kg load
Telcordia 326, 4.5kg at 90º, 6.8kg at 0º
Telcordia 326, 4.5kg load
Telcordia 326, 2.3kg load
Telcordia 326, .45kg at 90º, 60º, 30º & 0º
EIA/TIA 455 - 2A, 1.5 M drop, 8 cycles
ºC
ºC
~dB
~dB
~dB
~dB
~dB
~dB
~dB
~dB
~dB
~dB
~dB
-40
-40
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
+80
+80
.02
.07
.04
.01
.00
.01
.01
.05
.37
.10
.00

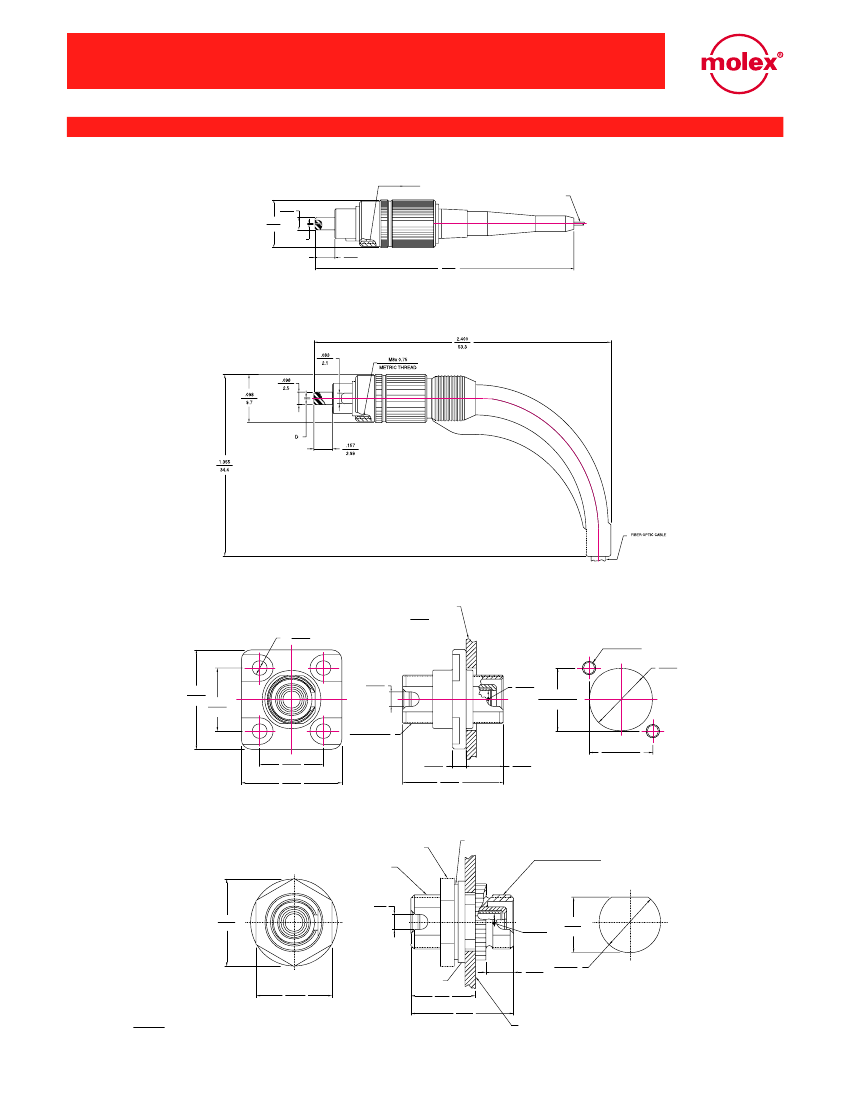

Mechanical Dimensions
FC Connector, 3.0mm Boot Style
M8x 0.75
METRIC THREAD
CABLE
ø.098
ø2.5
ø.380
ø9.7
D
.157
4.0
2.097
53.3
All dimensions in INCHES
mm
FC Connectors & Adapters
Mechanical Dimensions
FC Connector, 900µm Boot Style
M8x 0.75
METRIC THREAD
BUFFERED FIBER
ø.098
ø2.5
ø.380
ø9.7
D
.157
4.0
1.857
47.2
FC Connector, 90º Boot
FC Adapter, Square Mount Style
4x
ø.087
ø2.2
MAX PANEL THICKNESS
.060
1.5
M2x 0.4
METRIC THR.
.370
9.4
2x
.087
2.2
.098
2.5
.374±.002
9.50±0.05
.590
15.0
.374
9.5
M8x 0.75
METRIC THR.
.374±.002
.374
9.5
.590
15.0
9.50±0.05
.080
2.0
.590
15.0
.217
5.5
RECOMMENDED
MOUNTING PATTERN
FC Adapter, "D" Hole Mount Style
NUT
LOCK WASHER
M8x 0.75
ADAPTER
2 PLACES
(METRIC)
2X
.505
12.8
.087
2.2
.319
8.1
.098
ø2.5
WASHER
.438
11.1
.371
9.4
.590
15.0
.160
4.1
.354
9.0
RECOMMENDED
MOUNTING HOLE
All dimensions in INCHES
mm
PANEL
THICKNESS
MIN.: .047/
MAX.: .102/
1.2
2.6
FC Connectors & Adapters
Standard Part Numbers
Order Number
86053-0000
86053-0300
86053-0500
86053-3000
86053-3300
86053-3500
86053-4000
86053-4300
86053-4500
86053-5000
86053-5300
86053-5500
86053-5400
86053-5600
86053-7000
86053-7300
86053-7500
86152-0100
86152-0200
86156-0100
86152-1000
86156-1000
86172-0000
Description
FC connector, MM, zirconia PC
+
ferrule
FC connector, MM, zirconia PC
+
ferrule
FC connector, MM, zirconia PC
+
ferrule, buffered fiber
FC connector, MM, zirconia PC ferrule, enhanced
FC connector, MM, zirconia PC ferrule, enhanced
FC connector, MM, zirconia PC ferrule, buffered fiber, enhanced
FC connector, SM, zirconia PC ferrule
FC connector, SM, zirconia PC ferrule
FC connector, SM, zirconia PC ferrule, buffered fiber
FC
FC
FC
FC
FC
connector, SM, zirconia PC ferrule
connector, SM, zirconia PC ferrule
connector, SM, zirconia PC ferrule, buffered fiber
connector, SM, zirconia PC ferrule, 90º yellow boot
connector, SM, zirconia PC ferrule, 90º yellow boot
Hole size "D" Cable size
127µm
127µm
127µm
128µm
128µm
128µm
125µm
125µm
125µm
126µm
126µm
126µm
126µm
126µm
127µm
127µm
127µm
3.0mm
2.4mm
900µm buffered fiber
3.0mm
2.4mm
900µm buffered fiber
3.0mm
2.4mm
900µm buffered fiber
3.0mm
2.4mm
900µm buffered fiber
3.0mm
2.4mm
3.0mm
2.4mm
900µm buffered fiber
FC connector, SM, zirconia PC ferrule
FC connector, SM, zirconia PC ferrule
FC connector, SM, zirconia PC ferrule, buffered fiber
FC adapter, zirconia alignment sleeve, square mounting flange style
FC adapter, zirconia alignment sleeve, square mounting flange style, low cost
FC adapter, phosphor bronze alignment sleeve, square mounting flange style
FC adapter, zirconia alignment sleeve, "D" hole mount style
FC adapter, phosphor bronze alignment sleeve, "D" hole mount style
FC to ST adapter, zirconia alignment sleeve, "D" hole mount style
86001-0100 Rev. 1
USA/30MFO/2000.09
©2000, Molex
Molex reserves the right to make any changes to the product(s) or information contained herein without notice. No liability is assumed as a result of their use or application.
