M5M5V2132GP-5H

Description
Cache SRAM, 64KX32, 5ns, CMOS, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, TQFP-100
Categorystorage    storage
File Size168KB，14 Pages
ManufacturerMitsubishi
Websitehttp://www.mitsubishielectric.com/semiconductors/
Download Datasheet Parametric Compare View All

M5M5V2132GP-5H Overview

Cache SRAM, 64KX32, 5ns, CMOS, PQFP100, 14 X 20 MM, 0.65 MM PITCH, PLASTIC, TQFP-100

M5M5V2132GP-5H Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMitsubishi
Parts packaging codeQFP
package instructionQFP, QFP100(UNSPEC)
Contacts100
Reach Compliance Codeunknow
ECCN code3A991.B.2.A
Maximum access time5 ns
Maximum clock frequency (fCLK)133 MHz
I/O typeCOMMON
JESD-30 codeR-PQFP-G100
JESD-609 codee0
memory density2097152 bi
Memory IC TypeCACHE SRAM
memory width32
Number of functions1
Number of terminals100
word count65536 words
character code64000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize64KX32
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeQFP
Encapsulate equivalent codeQFP100(UNSPEC)
Package shapeRECTANGULAR
Package formFLATPACK
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3 V
Certification statusNot Qualified
Maximum standby current0.002 A
Minimum standby current3.14 V
Maximum slew rate0.3 mA
Maximum supply voltage (Vsup)3.47 V
Minimum supply voltage (Vsup)3.13 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED

M5M5V2132GP-5H Preview

Mar.24.'97 ver.G
INARY
n.
cificatio
PRELIM
final spe
ot
bject
This is n
s are su
Notice :
tric limit
arame
Some p
MITSUBISHI LSIs
M5M5V2132GP-5H,-5,-6,-7,-8
2097152-BIT(65536-WORD BY 32-BIT) SYNCHRONOUS BURST SRAM
When CLK is stopped and all inputs (Address, Burst control,
CLK etc. ) are fixed in CMOS level, the SRAM becomes in the
power-down state that is called "CLK stopped stand-by mode".
During CLK stopped stand-by mode, power supply current is
almost same as snooze mode even if the SRAM is selected.
When CLK is active again, the SRAM immediately recovers from
CLK stopped stand-by mode to normal operation mode.
The burst mode control (MODE), and the flow-through enable
(FT) are DC operated pins. MODE pin will allow the choice of
either an interleaved burst, or a linear burst. FT pin normally is
V
DD
. When FT is pulled Vss, the SRAM changes non-pipelined
type with flow-through output. FT input fixed to Vss is only used
for a test mode.
The burst operation is initiated by either address status
processor (ADSP) or address status controller (ADSC). The burst
advance pin (ADV) controls subsequent burst addresses.
e.
to chang
DESCRIPTION
The M5M5V2132 is a family of 2M bit synchronous SRAMs
organized as 65536-words of 32-bit. The M5M5V2132 provides a
high speed secondary cache solution for microprocessors. The
design integrates a 2-bit burst counter, input and output registers
with the ultra fast 2M bit SRAM on a single monolithic circuit. This
design reduces component count of cache data RAM solutions.
Mitsubishi's SRAMs are fabricated with high-performance, low
power Super CMOS technology, providing greater reliability. This
device operates on 3.3V power / 2.5V I/O supply or a single 3.3V
power supply , and are directly LVTTL compatible.
FEATURES
Access times / Cycle times
......................
M5M5V2132GP-5H
......................
M5M5V2132GP-5
.....................
M5M5V2132GP-6
.....................
M5M5V2132GP-7
.....................
M5M5V2132GP-8
5.0ns/7.5ns (133MHz)
5.0ns/8.5ns (117MHz)
5.5ns/10.0ns(100MHz)
7.0ns/13.3ns (75MHz)
8.0ns/15.0ns (66MHz)
...........................
875mW (typ)
Low power dissipation
...........................
3.3mW (typ)
Active(133MHz)
Stand-by
-5H,-5,-6 ....... 3.3V(3.13V ~ 3.47V )power
/ 2.5V(2.37V ~ 2.90V) I/O supply
or Single 3.3V(3.13V ~ 3.47V )power supply
....... 3.3V(3.13V ~ 3.60V )power
-7 ,-8
/ 2.5V(2.37V ~ 2.90V) I/O supply
or Single 3.3V(3.13V ~ 3.60V )power supp
Package
100pin TQFP
2
Body Size (14.0 x 20.0 mm ) Pin Pitch (0.65 mm)
Fully registered inputs and outputs (Pipeline operation)
Global write control or individual byte write control
MODE pin allows either liner or interleaved burst
Snooze mode pin (ZZ) for power down
CLK stopped stand-by mode
32-bit wide data I/O
APPLICATION
Pentium
TM
/ PowerPC
caches
TM
and High-end processor second level
FUNCTION
Synchronous circuitry allows for precise cycle control triggered by
a positive edge clock transition. Synchronous signals include : all
addresses, all data inputs, all chip selects (S
1
, S
2
, S
2
), burst
control inputs (ADSC, ADSP, ADV) and write enables (MBW, GW,
BW
1
, BW
2
, BW
3
, BW
4
). S
2
and S
2
provide easy depth expansion.
The write operation can be performed by two methods. The
global write enable (GW) will perform a write to all 32 bits. Byte
wide writes are controlled by the master byte write enable (MBW)
and the 4 individual byte write enables (BW
1-
BW
4
). The byte write
cycle will write from one to four bytes. The write cycle is internally
self-timed, eliminating the complex signal generation of an off chip
write.
Asynchronous signals are output enable (OE), snooze mode pin
(ZZ) and clock (CLK). The HIGH input of ZZ pin puts the SRAM in
the power-down state. When ZZ is pulled to LOW, the SRAM
normally operates after 30ns of the wake up period.
1
2
ENABLE
A
8
ADDRESS ADVANCE
INPUT
ADV
BURST
ADSP
CONTROL
INPUTS
ADSC
OUTPUT ENABLE
INPUT
OE
MASTER BYTE
MBW
WRITE ENABLE
GLOBAL WRITE
GW
CLOCK INPUT
CLK
89
V
DD
CHIP SELECT
INPUT
S
2
BW
1
BYTE
BW
2
WRITE
ENABLES
BW
3
BW
4
S
2
CHIP SELECT
INPUTS
S
1
ADDRESS
A
9 81
INPUTS
PIN CONFIGURATION (TOP VIEW)
ADDRESS
INPUTS
(0V)V
SS 90
98
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
97
96
95
94
93
92
91
88
87
86
85
84
83
82
A
7 99
A
6
100
NC
1
DATA
DQ
17 2
INPUTS/
OUTPUTS
DQ
18 3
V
DD
Q
4
(0V)V
SS
Q
5
DQ
19 6
DATA
DQ
20 7
INPUTS/
8
OUTPUTS
DQ
21
DQ
22 9
(0V)V
SS
Q
10
V
DD
Q
11
DATA
DQ
23 12
INPUTS/
OUTPUTS
DQ
24 13
14
15
2097152-BIT(65536-WORD BY 32-BIT) SYNCHRONOUS BURST SRAM
Outline :100P6A-A(LQFP)
M5M5V2132GP
FLOW-
THROUGH
ENABLE
FT
V
DD
NC
DQ
16 DATA
INPUTS/
DQ
15 OUTPUTS
V
DD
Q
V
SS
Q(0V)
DQ
14
DQ
13 DATA
INPUTS/
DQ
12 OUTPUTS
DQ
11
V
SS
Q(0V)
V
DD
Q
DQ
10 DATA
INPUTS/
DQ
9 OUTPUTS
V
SS
(0V)
NC
V
DD
SNOOZE
MODE
ZZ
INPUT
DQ
8 DATA
INPUTS/
DQ
7 OUTPUTS
V
DD
Q
V
SS
Q(0V)
DQ
6
DQ
5 DATA
INPUTS/
DQ
4 OUTPUTS
DQ
3
V
SS
Q(0V)
V
DD
Q
DQ
2 DATA
DQ
1
NC
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
31
INPUTS/
OUTPUTS
NC
16
(0V)V
SS 17
DATA
DQ
25 18
INPUTS/
OUTPUTS
DQ
26 19
V
DD
Q
20
(0V)V
SS
Q
21
DQ
27 22
DATA
DQ
28 23
INPUTS/
OUTPUTS
DQ
29 24
DQ
30 25
(0V)V
SS
Q
26
V
DD
Q
27
DATA
DQ
31 28
INPUTS/
OUTPUTS
DQ
32 29
NC
30
MITSUBISHI LSIs
M5M5V2132GP-5H,-5,-6,-7,-8
V
CC
Q
: 2.5V or 3.3V , NC : NO CONNECTION
NC
A
15
A
10
A
11
A
12
ADDRESS
INPUTS
A
13
A
14
NC
NC
V
DD
V
SS
(0V)
NC
NC
A
0
A
1
A
2
ADDRESS
A
3
INPUTS
A
4
A
5
BURST
MODE
MODE
CONTROL
MITSUBISHI LSIs
M5M5V2132GP-5H,-5,-6,-7,-8
2097152-BIT(65536-WORD BY 32-BIT) SYNCHRONOUS BURST SRAM

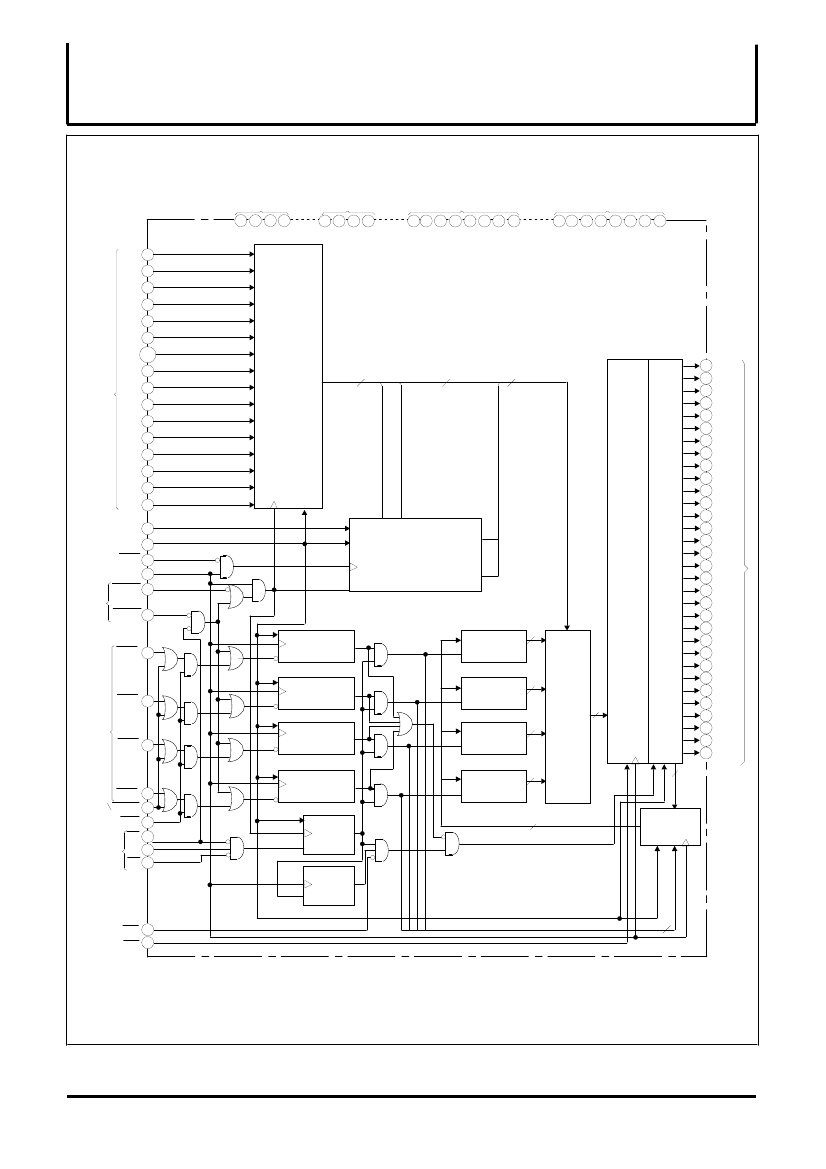

BLOCK DIAGRAM
