LL1005-FHLR10T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LL1005-FHLR10T

LL1005-FHLR10T: DescriptionGeneral Purpose Inductor, 0.1uH, 3%, 1 Element, Ceramic-Core, SMD, 1005, CHIP, 1005, ROHS COMPLIANT; CategoryPassive components inductor; File Size154KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LL1005-FHLR10T Overview

General Purpose Inductor, 0.1uH, 3%, 1 Element, Ceramic-Core, SMD, 1005, CHIP, 1005, ROHS COMPLIANT

LL1005-FHLR10T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 1005, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1005
structure	Multilayer Chi
core material	CERAMIC
DC Resistance	2.2 Ω
Nominal inductance(L)	0.1 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.2 A
self resonant frequency	870 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	3%

Preview

Download Datasheet

View All

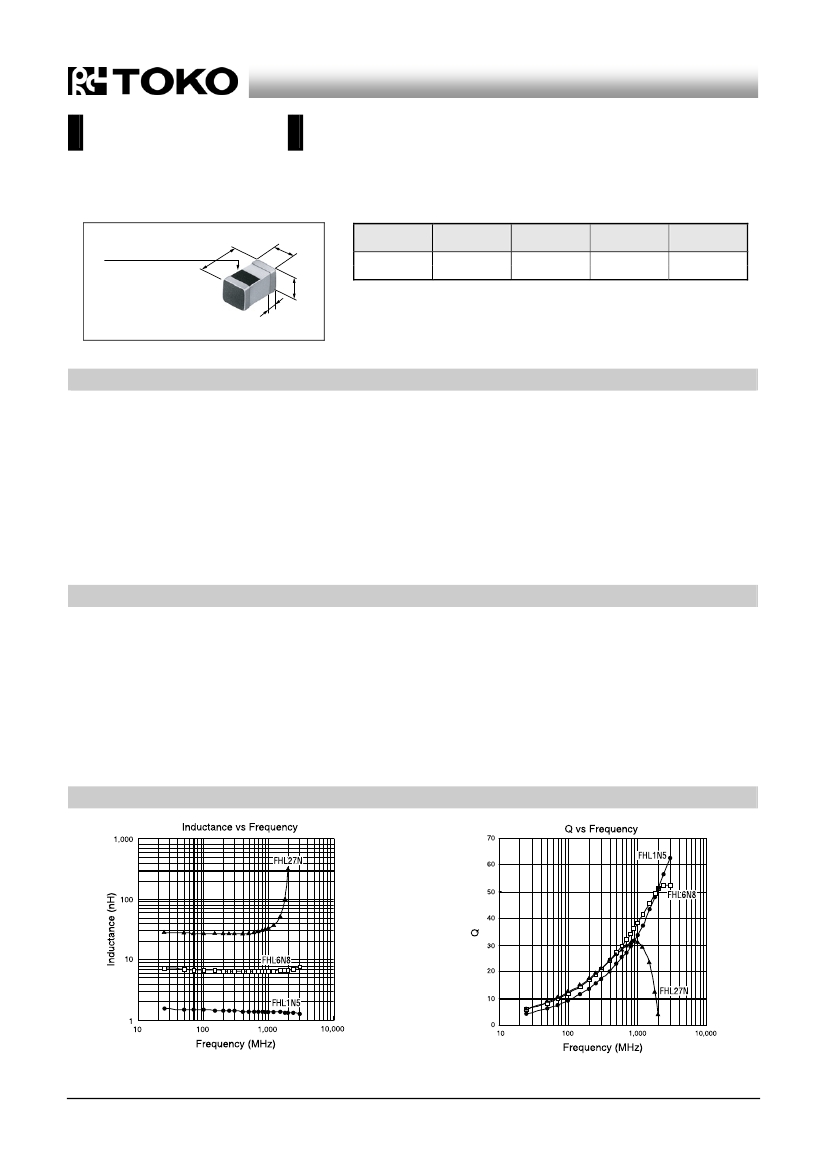

Multilayer Chip Inductors

積層チップインダクタ

LL1005-FHL

Inductance Range:

1.0~100nH (E-24 Series)、個別対応品order production available (1.1nH, 1.3nH, 1.6nH, 2.0nH, 2.4nH,

3.0nH, 3.6nH, 4.3nH, 5.1nH, 6.2nH, 7.5nH, 9.1nH)

Temperature Coefficient of L:

+ 250ppm/°C (for reference only)

Inductance

Length

L (mm)

1.0



0.05

1.0



0.05

Width

W (mm)

0.5



0.05

0.5



0.05

Thickness

T (mm)

0.5



0.05

0.5



0.1

Electrode width

A (mm)

0.25



0.1

0.25



0.1

Marking of polarity

極性表示

1.0 ~ 68nH

82 ~ 100nH



Marking of polarity:

Marking is on the upper Surface of the unit.



極性表示: 磁束方向を示します。この表示が、常に上を向くようにテ

ーピングされています。

FEATURES

特長



インダクタンス値の２周波規格化

外½寸法の狭公差化（0.05mm）

高温リフロー対応可（260°C

３回）

½用温度範囲の拡大化（－55°C½＋125°C）

高周波適用性の拡大化（½10GHz）

面実装適用性（リフロー対応）

高信頼性（セラミック一½構造、およびめっき端子電極）

RoHS指令対応



Dual frequency standard for inductance value



Tight tolerance physical dimensions (0.05mm)



Supports high temperature reflow soldering (260°C, 3

times)



Expanding operating temperature range (−55°C~+125°C)



Extended applicable frequency range (~10GHz)



Surface mounting applicability (Supports reflow soldering)



High reliability (ceramic integrated structure, and terminals

plated)



RoHS compliant

ELECTRICAL CHARACTERISTICS



Inductance Range



Inductance Tolerance



電気的特性

1.0½100nH (E-24 Series）

S級;

0.3nH

(1.0½6.2nH)

J級 ;

5%

(6.8½100nH)



Q (Typical)

15 ~ 35 (at 800MHz)



許容電流値

200½500mA



インダクタンス温度係数(参考値) ＋250ppm/°C



½用温度範囲

－55°C½＋125°C



保存温度範囲

－55°C½＋125°C



インダクタンス範囲



インダクタンス許容差

1.0~100nH (E-24 Series)

S ;



0.3nH (1.0~6.2nH)

J ;



5% (6.8~100nH)

Q (Typical)

15~35 (at 800MHz)

Rated Current

200~500mA

Inductance Temperature Coefficient +250ppm/°C

(for reference only)

Operating Temperature Range -55°C~+ 125°C

Storage Temperature Range

-55°C~+ 125°C

EXAMPLES OF CHARACTERISTICS

代表特性例

continued on next page

次頁へ続く
