PV36W200C01B00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> PV36W200C01B00

PV36W200C01B00: DescriptionTrimmer, Cermet, 0.5W, 20ohm, 300V, 10% +/-Tol, -150,150ppm/Cel, 25 Turn(s), 3820; CategoryPassive components The resistor; File Size417KB，22 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PV36W200C01B00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PV36W200C01B00	-	-	View	Buy Now

PV36W200C01B00 Overview

Trimmer, Cermet, 0.5W, 20ohm, 300V, 10% +/-Tol, -150,150ppm/Cel, 25 Turn(s), 3820

PV36W200C01B00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compli
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer P
JESD-609 code	e2
Lead diameter	0.5 mm
Lead length	6 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	25
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	10 mm
Package length	9.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mou
Package width	5 mm
method of packing	BULK
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	20 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	9000 deg
size code	3820
surface mount	NO
technology	CERMET
Temperature Coefficient	-150,150 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	300 V

Preview

Download Datasheet

View All

Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

!Note

•Please read rating and

!CAUTION

(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.

•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.

This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for

R50E13.pdf 04.6.11

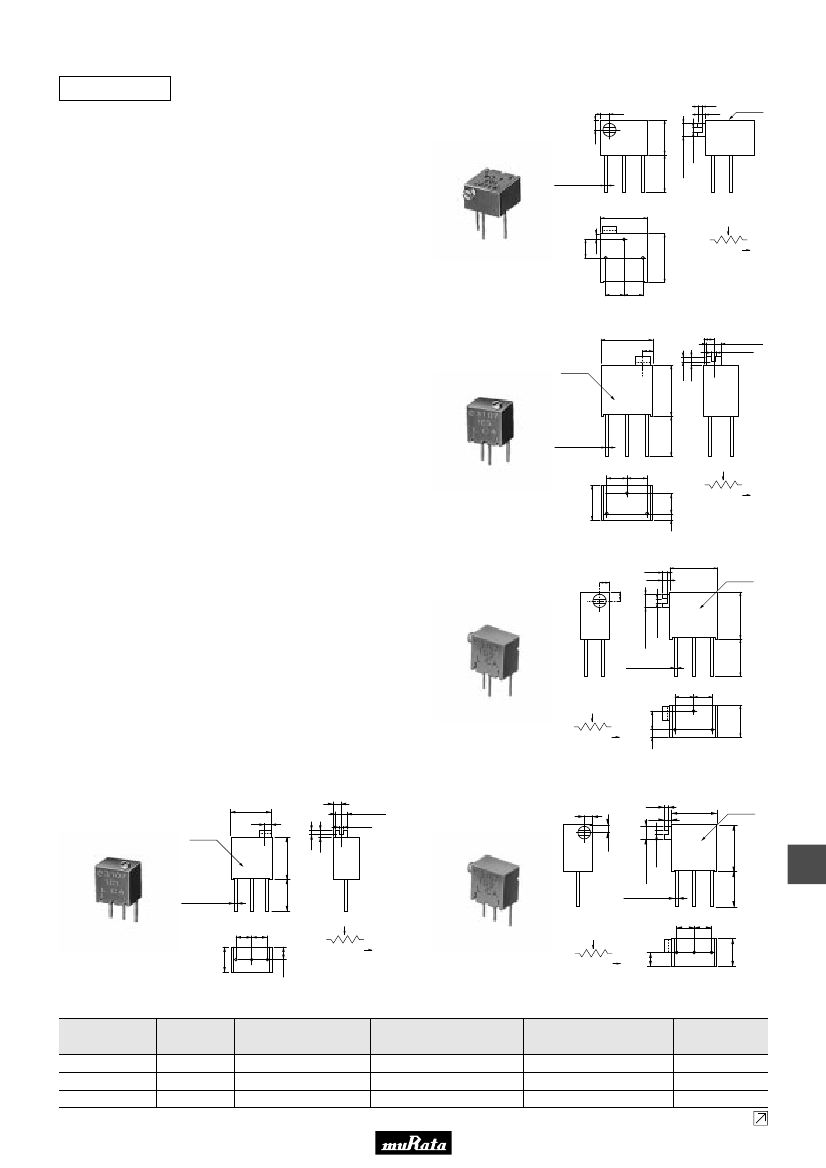

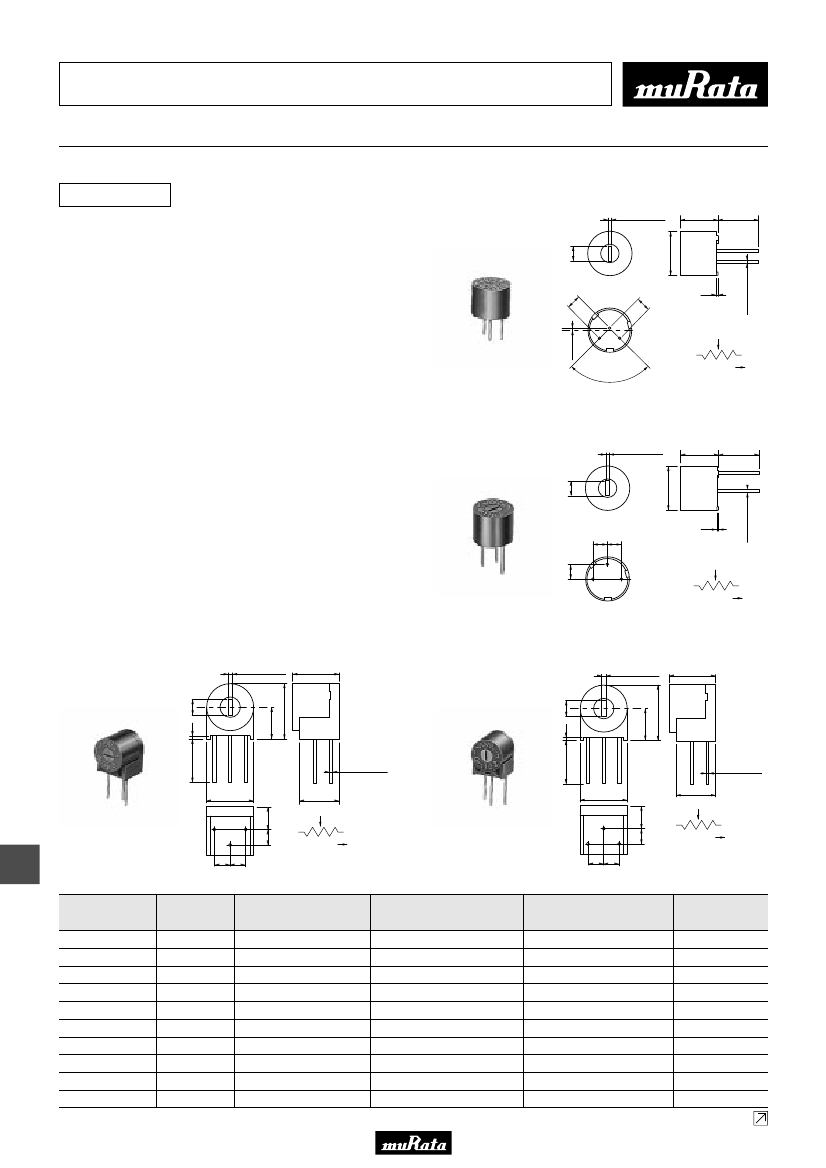

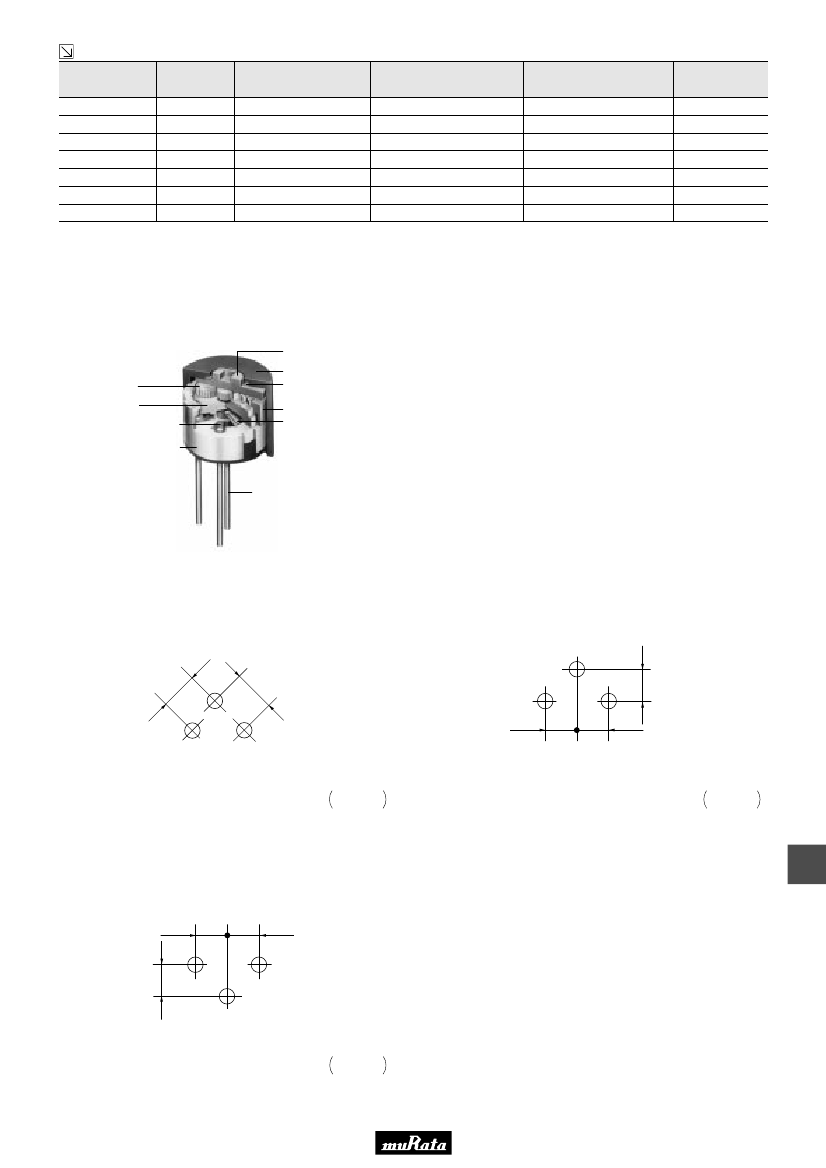

Trimmer Potentiometers

Lead Sealed Type Multi-turns PV12/PV37/PV23/PV22/PV36 Series

PV12 Series

1. The unique inner gear system recognizes the

position of the center of the shaft of the

potentiometer.

2. Sealed construction protects the interior from dust

and liquid, which achieves stable performance.

3. Available for ultrasonic cleaning after soldering

4. Clutch mechanism prevents excessive wiper rotation.

PV12H

7.6±0.1 Dia.

Features

2.5±0.1

0.6±0.1

0.7±0.1 Depth

6.6±0.1

7.0±1.0

0.5

0.4±0.1

90°±6°

CLOCKWISE

(

Tolerancein

±0.3

)

Applications

1. HDTVs

2. Professional cameras

3. CATV

4. FAX

5. Printers

6. Sensors

7. Switching power supplies

2.5±0.1

0.6±0.1

0.7±0.1 Depth

7.6±0.1 Dia.

6.6±0.1

7.0±1.0

0.5

2.5 2.5

2.5

CLOCKWISE

PV12P

(

Tolerancein

±0.3

)

0.6±0.1

0.7±0.1 Depth

0.5 2.5±0.1

9.0±0.3

7.7±0.3

0.6±0.1

0.7±0.1 Depth

0.5 2.5±0.1

9.0±0.3

7.7±0.3

5.1±0.3

7.0±1.0

3−0.5±0.1 Dia.

#2 #3

7.6±0.3

3.6

7.0±1.0

5.1±0.3

3−0.5±0.1 Dia.

#2 #3

7.6±0.3

3.6

6.3±0.3

CLOCKWISE

(

Tolerancein

±0.3

)

PV12S

2.5

PV12T

2.5 2.5

2.5

CLOCKWISE

(

Tolerance in

±0.3

)

Part Number

PV12p100A01

PV12p200A01

PV12p500A01

PV12p101A01

PV12p201A01

PV12p501A01

PV12p102A01

PV12p202A01

PV12p502A01

PV12p103A01

2.5 2.5

Power Rating

0.5W(70°C)

Soldering Method

Flow/Soldering Iron

Number of Turns

(Effective Rotation Angle)

Total Resistance Value

10ohm

±10%

20ohm

±10%

50ohm

±10%

100ohm

±10%

200ohm

±10%

500ohm

±10%

1k ohm

±10%

2k ohm

±10%

5k ohm

±10%

10k ohm

±10%

TCR

±100ppm/°C

Continued on the following page.

3−0.5±0.1 Dia.

PV36W200C01B00 Related Products

	PV36W200C01B00	PV36P253C01B00	PV36W103C01B00	PV37Z500C01B00	PV37W102C01B00	PV36Y204C01B00	PV36X100C01B00
Description	Trimmer, Cermet, 0.5W, 20ohm, 300V, 10% +/-Tol, -150,150ppm/Cel, 25 Turn(s), 3820	Trimmer, Cermet, 0.5W, 25000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3839	Trimmer, Cermet, 0.5W, 10000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3820	Res,Tapped,Cermet,50 Ohms,200WVDC,10% +/-Tol,-150,150ppm TC,2516 Case	Trimmer, Cermet, 0.25W, 1000ohm, 200V, 10% +/-Tol, -150,150ppm/Cel, 12 Turn(s), 2516	RESISTOR, TRIMMER, CERMET, 25 TURN(S), 0.5W, 200000ohm	Trimmer, Cermet, 0.5W, 10ohm, 300V, 10% +/-Tol, -150,150ppm/Cel, 25 Turn(s), 3820
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compli	compliant	compliant
structure	Trimmer P	Trimmer Pot	Trimmer Pot	Trimmer Pot	Trimmer P	Trimmer Pot	Trimmer Pot
Lead diameter	0.5 mm	0.5 mm	0.5 mm	0.4 mm	0.4 mm	0.5 mm	0.5 mm
Lead length	6 mm	6 mm	6 mm	5 mm	5 mm	6 mm	6 mm
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	10 mm	5 mm	10 mm	6.7 mm	6.7 mm	10 mm	10 mm
Package length	9.6 mm	9.6 mm	9.6 mm	6.4 mm	6.4 mm	9.6 mm	9.6 mm
Package form	PCB Mou	PCB Mount	PCB Mount	PCB Mount	PCB Mou	PCB Mount	PCB Mount
Package width	5 mm	10 mm	5 mm	4 mm	4 mm	5 mm	5 mm
method of packing	BULK	BULK	BULK	Bulk	BULK	BULK	BULK
Rated power dissipation(P)	0.5 W	0.5 W	0.5 W	0.25 W	0.25 W	0.5 W	0.5 W
resistance	20 Ω	25000 Ω	10000 Ω	50 Ω	1000 Ω	200000 Ω	10 Ω
Resistor type	TRIMMER	TRIMMER	TRIMMER	POTENTIOMETER	TRIMMER	TRIMMER	TRIMMER
rotation angle	9000 deg	9000 deg	9000 deg	4320 deg	4320 deg	9000 deg	9000 deg
size code	3820	3839	3820	2516	2516	3820	3820
technology	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET	CERMET
Temperature Coefficient	-150,150 ppm/°C	-100,100 ppm/°C	-100,100 ppm/°C	-150,150 ppm/°C	-150,150 ppm/°C	-100,100 ppm/°C	-150,150 ppm/°C
Tolerance	10%	10%	10%	10%	10%	10%	10%
Operating Voltage	300 V	300 V	300 V	200 V	200 V	300 V	300 V
Maker	Murata	Murata	-	Murata	Murata	-	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Actuator direction	VERTICAL	HORIZONTAL	VERTICAL	-	VERTICAL	VERTICAL	HORIZONTAL
Actuator type	SCREW	SCREW	SCREW	-	SCREW	SCREW	SCREW
JESD-609 code	e2	e2	e2	-	e2	e2	e2
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3	3	-	3	3	3
number of turns	25	25	25	-	12	25	25
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated temperature	70 °C	70 °C	70 °C	-	85 °C	70 °C	70 °C
resistance law	LINEAR	LINEAR	LINEAR	-	LINEAR	LINEAR	LINEAR
surface mount	NO	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	-	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal shape	WIRE	WIRE	WIRE	-	WIRE	WIRE	WIRE
series	-	PV36	-	PV37	PV37	PV36	PV36
