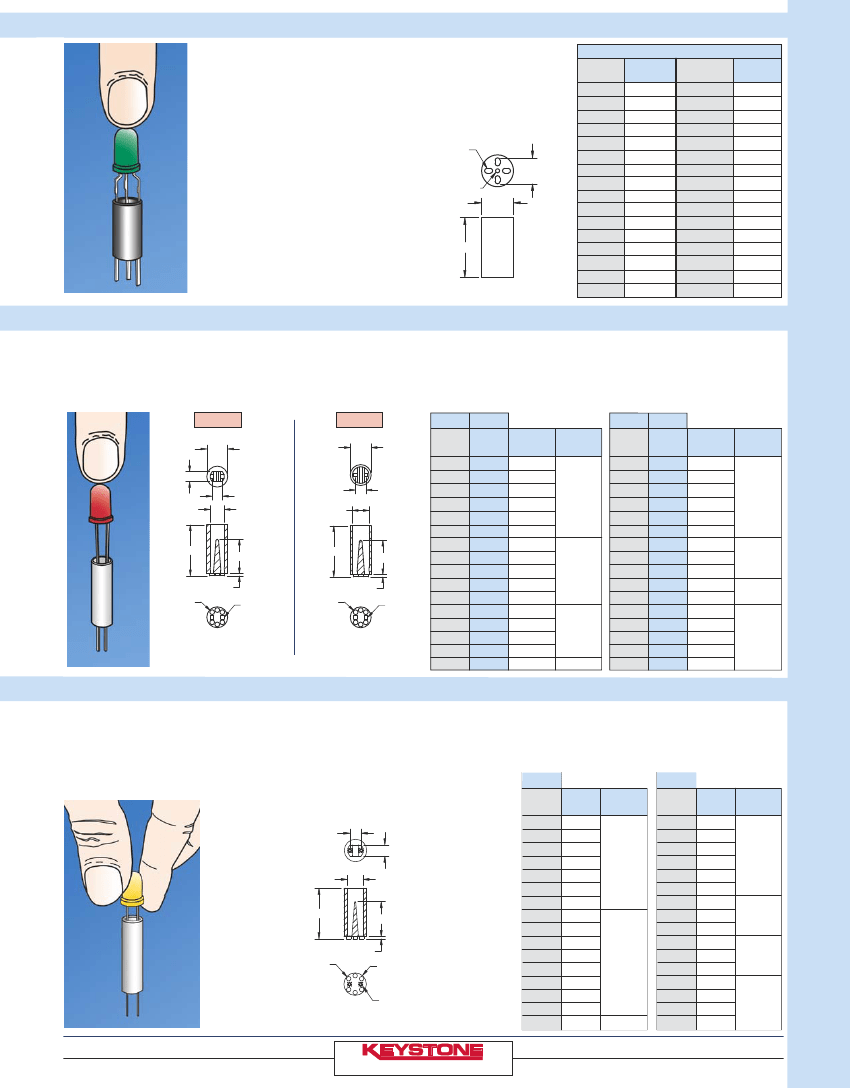

“UNIVERSAL”

FOR T-1 & T-1 3/4

•

Unique design separates leads and retains Tri-Lead

and Bi-Lead components.

•

Designed for PC board mounting of Tri-Lead and

Bi-Lead T-1 and T-1 3/4 LEDS

•

Provides height control, lead retention and stability.

•

Also suitable for mounting lamps, resistors, transistors,

diodes, capacitors, etc.

MATERIAL:

Black PVC, UL Rated 94V-0

.040 [1.02]

x .065 [1.65]

SLOT (4) PLS

.025 [0.62] DIA.

.208 [5.3]

TYP.

.255 [6.5]

DIA.

CAT.

NO.

8900

8901

8902

8903

8904

8905

8906

8907

8908

8909

8910

8911

8912

8913

8914

8915

FOR T-1 3/4 and T-1

CAT.

LENGTH

NO.

.120 (3.0)

8916

.140 (3.6)

8917

.160 (4.1)

8918

.180 (4.6)

8919

.200 (5.1)

8920

.220 (5.6)

8921

.240 (6.1)

8922

.250 (6.4)

8923

.260 (6.6)

8924

.280 (7.1)

8925

.300 (7.6)

8926

.320 (8.1)

8927

.340 (8.6)

8928

.350 (8.9)

8929

.360 (9.1)

8930

.380 (9.7)

8931

LENGTH

.400 (10.2)

.420 (10.7)

.440 (11.2)

.450 (11.4)

.460 (11.7)

.480 (12.2)

.500 (12.7)

.550 (14.0)

.600 (15.2)

.650 (16.5)

.700 (17.8)

.750 (19.1)

.800 (20.3)

.850 (21.6)

.900 (22.9)

.925 (23.5)

“SELF-ALIGNING” FOR BI-LEAD T-1 & T-1 3/4

KEY FEATURES

•

Positive self-alignment of leads on .100 (.25) centers.

•

No special tools required

MATERIAL:

Natural Nylon, UL Rated 94V-2

T-1

.197

[5.0]

DIA.

.093 [2.4]

.100 [2.5]

.133 [3.4]

DIA.

.157 [4.0]

DIA.

.100 [2.5]

•

This features an internally tapered barrier which guides the leads and

eliminates crimping or shorting.

•

The bottom bosses serve the dual purpose of heat dissipation and easy post

soldering cleanup.

LED SPACER MOUNTS

T-1 3/4

.197

[5.0]

DIA.

.020 [0.5]

.045 [1.1]

DIA BOSSES

(6) PLS.

.020 [0.5]

.032 [0.81]

SQUARE

[2] PLS

.045 [1.1]

DIA BOSSES

(6) PLS.

.032 [0.81]

SQUARE

[2] PLS

T-1 3/4

CAT.

NO.

8311

8312

8313

8314

8315

8316

8317

8318

8319

8320

8321

8322

8323

8324

8325

8326

T-1

CAT.

NO.

7351

7352

7353

7354

7355

7356

7357

7358

7359

7360

7361

7362

7363

7364

7365

7366

LENGTH

.120 (3.0)

.140 (3.6)

.160 (4.1)

.180 (4.6)

.200 (5.1)

.220 (5.6)

.240 (6.1)

.250 (6.4)

260 (6.6)

.280 (7.1)

.300 (7.6)

.320 (8.1)

.340 (8.6)

.350 (8.9)

.360 (9.1)

.380 (9.7)

REF.

.075 (1.9)

.190 (4.8)

.200 (5.1)

.325 (8.3)

T-1 3/4

CAT.

NO.

8327

8328

8329

8330

8331

8332

8333

8334

8335

8336

8337

8338

8339

8340

8341

8342

T-1

CAT.

NO.

7367

7368

7369

7370

7371

7372

7373

7374

7375

7376

7377

7378

7379

7380

7381

7382

LENGTH

.400 (10.2)

.420 (10.7)

.440 (11.2)

.450 (11.4)

.460 (11.7)

.480 (12.2)

.500 (12.7)

.550 (14.0)

.600 (15.2)

.650 (16.5)

.700 (17.8)

.750 (19.1)

.800 (20.3)

.850 (21.6)

.900 (22.9)

.925 (23.5)

REF.

.325 (8.3)

.450 (11.4)

.575 (14.6)

.690 (17.5)

“SELF-RETAINING” FOR T-1

•

Features internal retention “teeth” which secure LED leads onto spacers.

•

This features an internally tapered barrier which guides the leads and

eliminates crimping or shorting.

•

The bottom bosses serve the dual purpose of heat dissipation and easy

post soldering cleanup.

MATERIAL:

Natural Nylon, UL Rated 94V-2

KEY FEATURES

•

Internal design eliminates crimping or shorting of leads

•

Self alignment of leads on .100 (.25) centers.

•

Spacer will stay gripped to LED leads during assembly

•

No special tools required

T-1

CAT.

NO.

7030

7031

7032

7033

7034

7035

7036

7037

7038

7039

7040

7041

7042

7043

7044

7045

.100 [2.5]

.140 [3.6] DIA.

.020 [0.5]

.040 [1.0]

DIA. BOSSES

(6) PLS

.200 [5.1]

DIA.

LEAD RETAINING

AND DRAINAGE

LENGTH REF.

.120 (3.0)

.140 (3.6)

.160 (4.1)

.180 (4.6) .060 (1.5)

.200 (5.1)

.220 (5.6)

.240 (6.1)

.250 (6.4)

.260 (6.6)

.280 (7.1)

.300 (7.6)

.185 (4.7)

.320 (8.1)

.340 (8.6)

.350 (8.9)

.360 (9.1)

.380 (9.7) .310 (7.9)

T-1

CAT.

NO.

7046

7047

7048

7049

7050

7051

7052

7053

7054

7055

7056

7057

7058

7059

7060

7061

LENGTH

.400 (10.2)

.420 (10.7)

.440 (11.2)

.450 (11.4)

.460 (11.7)

.480 (12.2)

.500 (12.7)

.550 (14.0)

.600 (15.2)

.650 (16.5)

.700 (17.8)

.750 (19.1)

.800 (20.3)

.850 (21.6)

.900 (22.9)

.925 (23.5)

REF.

.310 (7.9)

.435 (11.0)

.650 (14.2)

.690 (17.5)

Tel (718) 956-8900

•

Fax (718) 956-9040

(800) 221-5510

•

kec@keyelco.com

RoHS COMPLIANT

ISO 9001 CERTIFIED

www.keyelco.com

31-07 20th Road – Astoria, NY 11105-2017
