LNC2W153MTEJBN

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 15000uF, Stud Mount, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size69KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

LNC2W153MTEJBN Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 15000uF, Stud Mount, ROHS COMPLIANT

LNC2W153MTEJBN Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codecompli
ECCN codeEAR99
capacitance15000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter90 mm
dielectric materialsALUMINUM (WET)
leakage current5 mA
length215 mm
Manufacturer's serial numberNC
Installation featuresSTUD MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
Package formScrew Ends
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)450 V
ripple current43100 mA
seriesNC
surface mountNO
Delta tangent0.2
Terminal surfaceAluminum (Al)
Terminal shapeBINDING POST

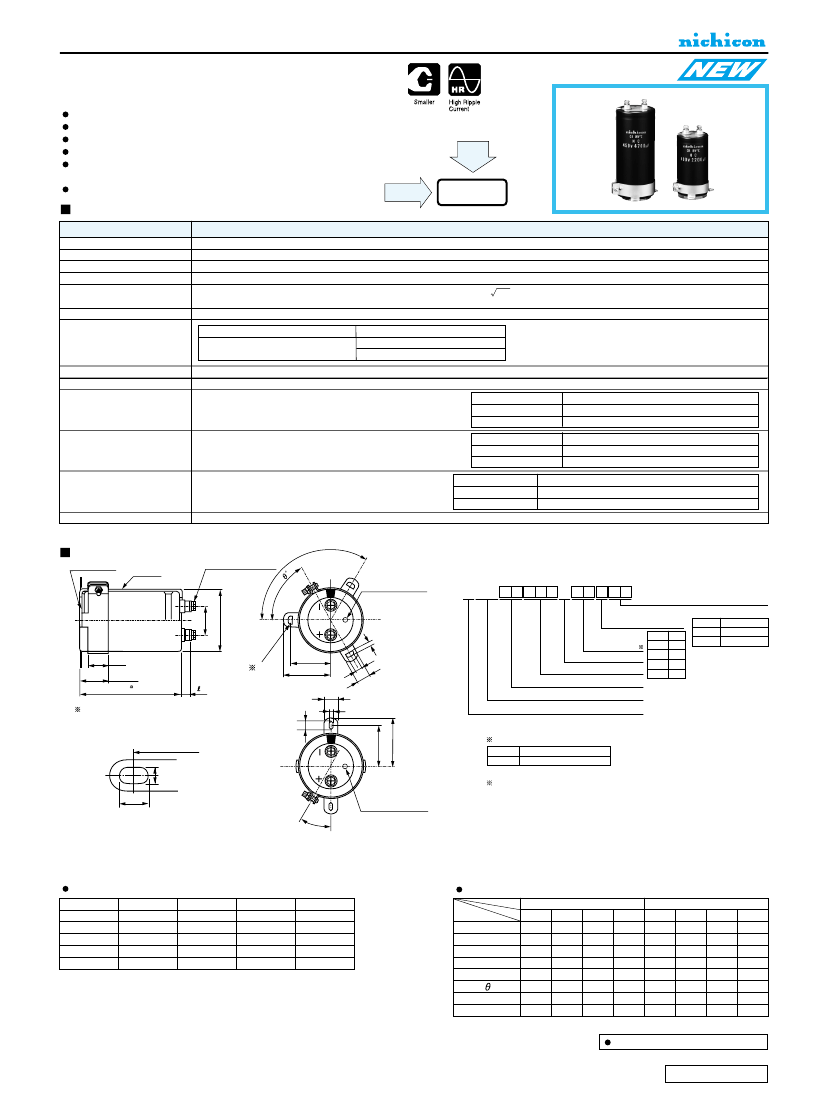

ALUMINUM ELECTROLYTIC CAPACITORS
NC
Screw Terminal Type, 85°C Smaller-sized
Higher ripple current
series
Suited for use in industrial power supplies for inverter circuritry, etc.
Load life 5000 hours application of ripple current at 85°C.
Smaller sized / High ripple current than NX, NK series.
Coped with loading of high speed charge-discharge.
Suited for high frequency regenerative voltage for AC servomotor,
general inverter.
Compliant to the RoHS directive (2002/95/EC).
QR
High speed
charge-discharge
NX
NK
Smaller
High ripple
NC
Specifications
Item
Performance Characteristics
Category
Temperature Range
Rated
Voltage Range
Rated
Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
40 to +85
°C
350 to 500V
1000 to 22000
µ
F
± 20% at 120Hz, 20°C
After 5 minutes' application of rated voltage, leakage current is not more than
3 CV
(
µ
A) or 5 mA, whichever is smaller (at 20°C).
[C : Rated Capacitance(µF), V : Voltage ( V ) ]
0.20MAX. (120Hz, 20°C)
Rated voltage (V)
350 to 500
Z
40°C / Z+20°C
8
Measurement frequency : 120Hz
Stability at Low Temperature
Insulation Resistance
Voltage proof
Impedance ratio ZT/Z20(MAX.)
The insulation resistance shall be more than 100MΩ at DC 500V application between terminal and bracket.
There is no abnormality during AC 2500V 1 minute's application between terminal and bracket.
The specifications listed at right shall be met when the capacitors are restored
to 20°C after D.C. bias plus rated ripple current is applied for 5000 hours at
85°C, the peak voltage shall not exceed the rated voltage.
After storing the capacitors under no load at 85°C for 1000 hours and
then performing voltage treatment based on JIS C 5101-4 clause 4.1
at 20°C, they shall meet the reguirements listed at right.
After an application of charge-discharge voltage for 50million times
(charge-discharge voltage difference(∆V)=rated voltage
×
0.3, cycle
3Hz)capacitors shell meet the characteristics requirement listed at right.
Printed with white color letter on black sleeve.
Capacitance change
tan
δ
Leakage current
Capacitance change
tan
δ
Leakage current
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Endurance
Shelf Life
Endurance of charge-
discharge behavior
Marking
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Drawing
Bottom plate
Hexagenal headed bolt
Sleeve
0
°
12
Type numbering system
(Example :
400V 10000µF)
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Mounting bracket
Pressure relief vent
D
+2MAX.
L NC 2 G 1 0 3 M S E H
51 to
φ
90)
Case dia. code
W
±
1
Configuration
Capacitance tolerance (
±20%
)
h
H
±
1
L
+
MAX.
±
1
P
±
2
B
A
±
2
U
S
T
T
U
Rated capacitance (10000µF)
Rated voltage (400V)
Series name
Type
φD
Code
F
51
63.5 G
76.2 H
J
90
Code less 3-leg brackets
2-leg brackets
BB
No brackets
BN
S
B
3-leg brackets for
φ90
capacitors have different
hole shapes from the ordinary ones illustrated
below.
P
A
±
2
P
Configuration
SE
TE
standard specifications
stud mount type
Please refer to page 293 for schematic of dimensions.
Please contact to us if PVC less products are required.
Pressure relief vent
30
°
7
Note) The terminal bolts and mounting brackets will be delivered
Dimension of terminal pitch (W) and length (
R
) and Nominal dia.of bolt
φD
51
63.5
76.2
90
100
W
22.0
28.6
31.8
31.8
41.5
R
6
6
6
6
10
α
3
3
3
3
4
M5
M5
M5
M5
M8
5
(mm)
Nominal dia. of bolt
Dimensions of mounting bracket
Leg shape
3--Leg
Symbol
(mm)
2--Leg
90
53
59
6.0
4.5
14
30
35
20
51
32.5
38.5
7.5
5.0
12
60
20
15
63.5
38.1
43
8.0
5.0
14
60
25
20
76.2
44.5
49.2
7.0
5.0
14
60
30
24
90
50.8
58.5
8.0
5.0
18
60
35
25
φD
P
A
T
S
U
°
H
h
51
33.2
40
6.0
4.5
14
30
25
15
63.5
40.5
46.5
7.0
4.5
14
30
35
20
76.2
46.5
53
6.0
4.5
14
30
35
20
Dimension table in next page.
CAT.8100Z-2
