NSRZ220M35V5X5TR: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, 5MMH RADIAL LEADED; CategoryPassive components capacitor; File Size83KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NSRZ220M35V5X5TR Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, 5MMH RADIAL LEADED

NSRZ220M35V5X5TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RIPPLE CURRENT IS MEASURED AT 10-500KHZ
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.0077 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	150 mA
surface mount	NO
Delta tangent	0.12
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

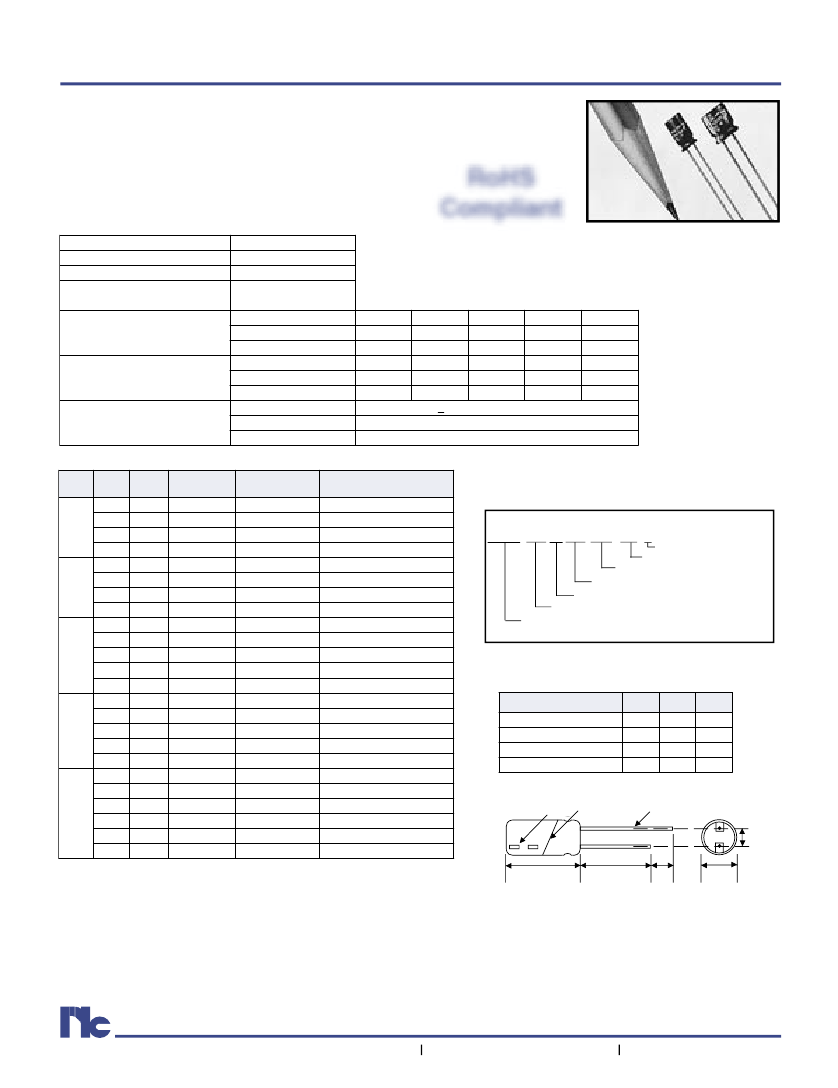

Miniature Aluminum Electrolytic Capacitors

LOW IMPEDANCE, SUBMINIATURE, RADIAL LEADS, POLARIZED

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

• VERY LOW IMPEDANCE AT HIGH FREQ AND HIGH RIPPLE CURRENT

• 5mm HEIGHT, LOW PROFILE

• SUITABLE FOR DC-DC CONVERTER OR DC-AC INVERTER

NSRZ Series

RoHS

Compliant

CHARACTERISTICS

Rated Voltage Range

Rated Capacitance Range

Operating Temperature Range

Max. Leakage Current

After 1 minute At 20

o

C

Surge Voltage & Max. Tan

δ

Low Temperature Stability

(Impedance Ratio At 120Hz)

Load Life Test

105

o

C 1,000 Hours

6.3 ~ 35Vdc

0.47 ~ 180

µF

-55~+105

O

C

0.01CV or 3

µ

A,

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

Tan

δ

at 120Hz/20

o

C

W.V. (Vdc)

Z-40

o

C/Z+20

o

C

Z-55

o

C/Z+20

o

C

Capacitance Change

Tan

δ

Leakage Current

*See Part Number System for Details

6.3

8

0.24

6.3

3

5

10

16

25

35

13

20

32

44

0.20

0.16

0.14

0.12

10

16

25

35

2

4

3

Within + 25% of initial measured value

Less than 200% of specified value

Less than specified value

STANDARD PRODUCTS TABLE: D

φ

x L (mm)

W.V.

(Vdc)

6.3

Cap

(µF)

27

56

100

180

18

33

68

120

12

22

47

68

120

8.2

15

22

33

47

4.7

8.2

10

15

22

33

Code

270

560

101

181

180

330

680

121

120

220

470

680

121

8R2

150

220

330

470

4R7

8R2

100

150

220

330

Case Size

D∅ xLmm

4x5

5x5

6.3x5

4x5

5x5

6.3x5

4x5

5x5

6.3x5

4x5

5x5

6.3x5

4x5

5x5

6.3x5

10

16

25

35

Max. Z(

Ω)

Max. Ripple Current (mA)

100KHz & 20

o

C

10K-500KHz & 105

o

C

1.80

80

0.76

150

0.44

230

0.47

230

1.80

80

0.76

150

0.44

230

0.47

230

1.80

80

0.81

150

0.44

230

0.44

230

0.47

230

1.80

80

0.81

150

0.81

150

0.44

230

0.47

230

1.80

80

1.80

80

0.81

150

0.81

150

0.81

150

0.44

230

PART NUMBER SYSTEM

NSRZ 220 M 35V 5x5 TR F

Pb Free/RoHS Compliant

Tape and Reel

Size (D∅ x L)

Rated Voltage

Tolerance Code

Capacitance Code

Series

*"F" suffix denotes RoHS compliant parts

LEAD SPACING AND DIAMETER (mm)

Case Dia. (D

∅)

Leads Dia. (d

∅)

Lead Spacing (F)

Dim.

α

Dim.

β

Polarity Marking

4

0.45

1.5

0.5

1.0

5

0.45

2.0

0.5

1.0

6.3

0.45

2.5

0.5

1.0

Insulation Sleeve

dφ ± 0.05

F ± 0.5

L +

β

max.

15mm Min.

4mm

Min.

Dφ ±

α

SLEEVE COLOR: DARK BROWN

®

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com

97

NSRZ220M35V5X5TR Related Products

	NSRZ220M35V5X5TR	NSRZ560M6.3V5X5TR	NSRZ680M10V6.3X5TR	NSRZ8R2M35V4X5TR
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, 5MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 56uF, Through Hole Mount, 5MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, 5MMH RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 8.2uF, Through Hole Mount, 5MMH RADIAL LEADED
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Nichicon	Nichicon	Nichicon	Nichicon
Reach Compliance Code	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	RIPPLE CURRENT IS MEASURED AT 10-500KHZ	RIPPLE CURRENT IS MEASURED AT 10-500KHZ	RIPPLE CURRENT IS MEASURED AT 10-500KHZ	RIPPLE CURRENT IS MEASURED AT 10-500KHZ
capacitance	22 µF	56 µF	68 µF	8.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e0	e0	e0	e0
leakage current	0.0077 mA	0.003528 mA	0.0068 mA	0.00287 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	6.3 V	10 V	35 V
ripple current	150 mA	150 mA	230 mA	80 mA
surface mount	NO	NO	NO	NO
Delta tangent	0.12	0.24	0.2	0.12
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal shape	WIRE	WIRE	WIRE	WIRE
