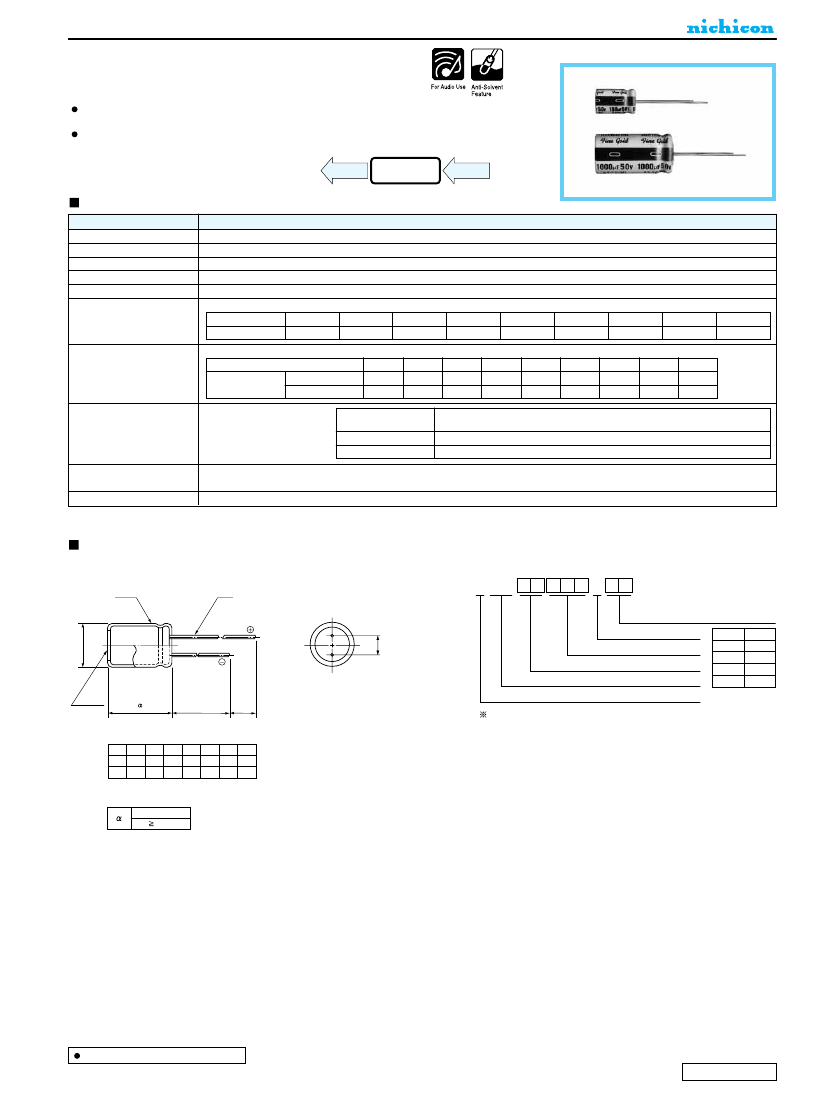

ALUMINUM ELECTROLYTIC CAPACITORS
FG
High Grade Standard Type, For Audio Equipment
series
"Fine Gold" MUSE acoustic series suited for high grade
audio equipment, using state of the art etching techniques.
Rich sound in the bass register and clearer high end, most
suited for AV equipment like DVD, MD.
KZ
High Grade
FG
High Grade
FW
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Performance Characteristics
– 40 ~ +85°C
6.3 ~ 100V
0.1 ~ 10000µF
± 20% at 120Hz, 20°C
After 1 minute's application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
For capacitance of more than 1000µF add 0.02 for every increase of 1000µF.
Rated voltage (V)
tan
δ
(MAX.)
Measurement frequency : 120Hz, Temperature : 20°C
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
80
0.09
100
0.08
Measurement frequency : 120Hz
Rated voltage (V)
Stability at Low Temperature
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
63
2
3
80
2
3
100
2
3
Impedance ratio
ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
Z– 40°C / Z+20°C
Endurance
After 1000 hours'
application of rated voltage
at 85°C, capacitors meet
the characteristic
requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial measurement for units of not more than 16V or
φ
6.3
Within ±15% of the initial measurement for units of not less than 25V or above
φ
6.3
150% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After leaving capacitors under no load at 85°C for 1000 hours, they meet the specified
value for endurance characteristics listed above.
Printed with black color letter on gold sleeve.
Radial Lead Type
Type numbering system (Example : 10V 47
µ
F)
1
2
3
4
5
6
7
8
9 10
11
Sleeve
φ
d
U FG 1 A 4 7 0 M D J
Configuration
φD
+
0.5MAX
P
±
0.5
Capacitance tolerance (±20%)
Rated Capacitance (47µF)
Rated voltage (10V)
Series name
φD
5
6.3
8 · 10
12.5 ~ 18
Code
DJ
EJ
PJ
HJ
Pressure
relief vent
(φ6.3up)
Type
L+
MAX
15
MIN
4
MIN
Please contact to us if Eco-Products are required.
(mm)
φD
5 6.3 8 10 12.5 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
φd
0.6 0.6 0.6 0.6 0.8 0.8 0.8
(L < 20) 1.5
(L 20) 2.0
Please refer to page 19, 20, 21 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.
Dimension table in next page.
CAT.8100T
