UPW1C221MPH1TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> UPW1C221MPH1TA

UPW1C221MPH1TA: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size191KB，8 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

UPW1C221MPH1TA Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED

UPW1C221MPH1TA Parametric

Parameter Name	Attribute value
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	220 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	0.1056 mA
Manufacturer's serial number	PW
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	360.75 mA
surface mount	NO
Delta tangent	0.16
Terminal surface	TIN LEAD
Terminal shape	WIRE

Preview

Download Datasheet

View All

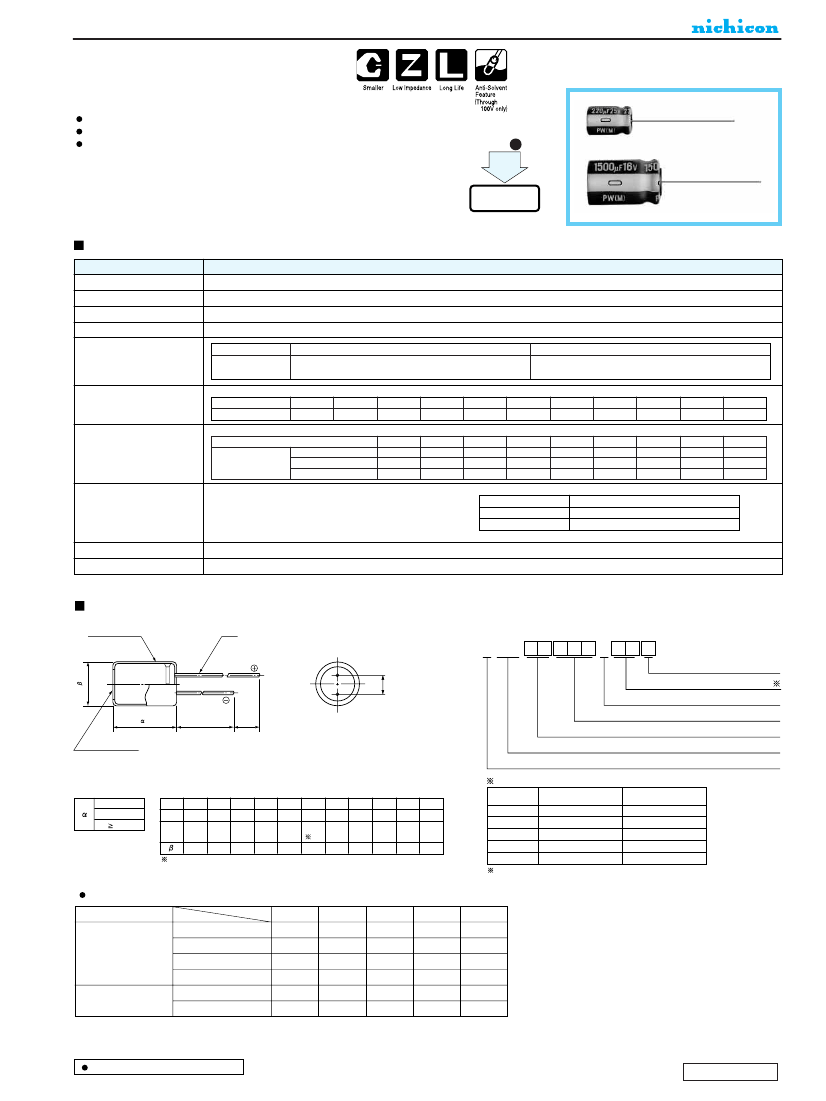

ALUMINUM ELECTROLYTIC CAPACITORS

Low lmpedance, High Reliability

For Switching Power Supplies

series

Smaller case size and lower impedance than PM series.

Low impedance and high reliability withstanding 2000 hours to 8000 hours.

Capacitance ranges available based on the numerical values in E12 series

under JIS.

Smaller

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V), – 40 ~ + 105˚C (160 ~ 400V), – 25 ~ +105˚C (450V)

6.3 ~ 450V

0.47 ~ 15000µF

± 20% at 120Hz, 20˚C

Rated voltage (V)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

160 ~ 450

CV < 1000 :

I =

0.1CV+40 (µA) max. (1 minute's)

CV > 1000 :

I =

0.04CV+100 (µA) max. (1 minute's)

Measurement frequency : 120Hz, Temperature : 20˚C

Leakage Current

Leakage current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

tan

Rated voltage (V

)

tan

(

MAX.

)

6.3

0.22

0.19

0.16

6.3 · 10

—

0.14

16 · 25

—

0.12

35 · 50

—

0.10

0.09

100

0.08

250

—

160 ~ 250 315 · 350 400 · 450

0.15

0.20

0.25

120Hz

Stability at Low Temperature

Rated voltage (V)

–

25˚C / Z+20˚C

–

40˚C / Z+20˚C

Impedance ratio

–

55˚C / Z+20˚C

63 · 100 160 · 200

—

315 · 350

—

400

—

450

—

Endurance

Shelf Life

Marking

After an application of D.C. bias voltage plus the rated ripple

current for 8000 hours (2000 hours for D = 4, 5 and 6.3,

Capacitance change

Within ±20% of initial value

3000 hours for D = 8, 5000 hours for D = 10, 7000 hours for

tan

200% or less of initial specified value

D = 12.5) at 105˚C the peak voltage shall not exceed the

Leakage current

Initial specified value or less

rated D.C.voltage, capacitors meet the characteristic

requirements listed at right.

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified value for endurance characteristics listed

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 680µF)

9 10 11

U PW 1 A 6 8 1 MP D

MAX

Size code

0.5

Configuration

Capacitance tolerance (±20%)

L+

MAX

Pressure relief vent

MIN

Rated Capacitance (680µF)

Rated voltage (10V)

6.3up (No pressure relief vent for 7mmL products)

Configuration

(mm)

Series name

Type

(L = 7) 1.0

(L < 20) 1.5

(L 20) 2.0

1.5

0.45

0.5

2.0

6.3

2.5

3.5

0.6

0.5

5.0

0.6

0.5

12.5

5.0

0.6

0.8

0.5

7.5

0.8

0.5

7.5

0.8

0.5

10.0

1.0

0.5

10.0

1.0

12.5

1.0

4·5

6.3

8 · 10

12.5 ~ 18

20 ~ 25

Pb-free leadwire

Pb-free PET sleeve

Sn-Pb finished leadwire

PVC sleeve (containing Pb)

0.5

(0.45) (0.45)

0.5

: Applied to L>25 products

( ): Applied to 7mmL products

ED (7mm L : DD)

EH (7mm L : DH )

Please contact to us if other configurations are required.

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

50Hz

0.20

0.55

0.70

0.80

0.90

120Hz

0.30

0.65

0.75

0.85

1.00

300Hz

0.50

0.75

0.80

0.90

1.25

1.10

1kHz

0.80

0.85

0.90

0.95

1.40

1.13

10kHz ~

1.00

1.60

1.15

..~

6.3 ~ 100

68 ~ 330.

390 ~ 1000.

.1200

~ 15000

160 ~ 450

0.47 ~ 2200

330 ~ 470.

Please refer to page 19, 20, 21 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100T-1
