MURD315T4 datasheet, PDF - EEWORLD Datasheet

MURD315T4: Description3A, 150V, SILICON, RECTIFIER DIODE, COMPACT, PLASTIC, DPAK-3; CategoryDiscrete semiconductor diode; File Size114KB，3 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

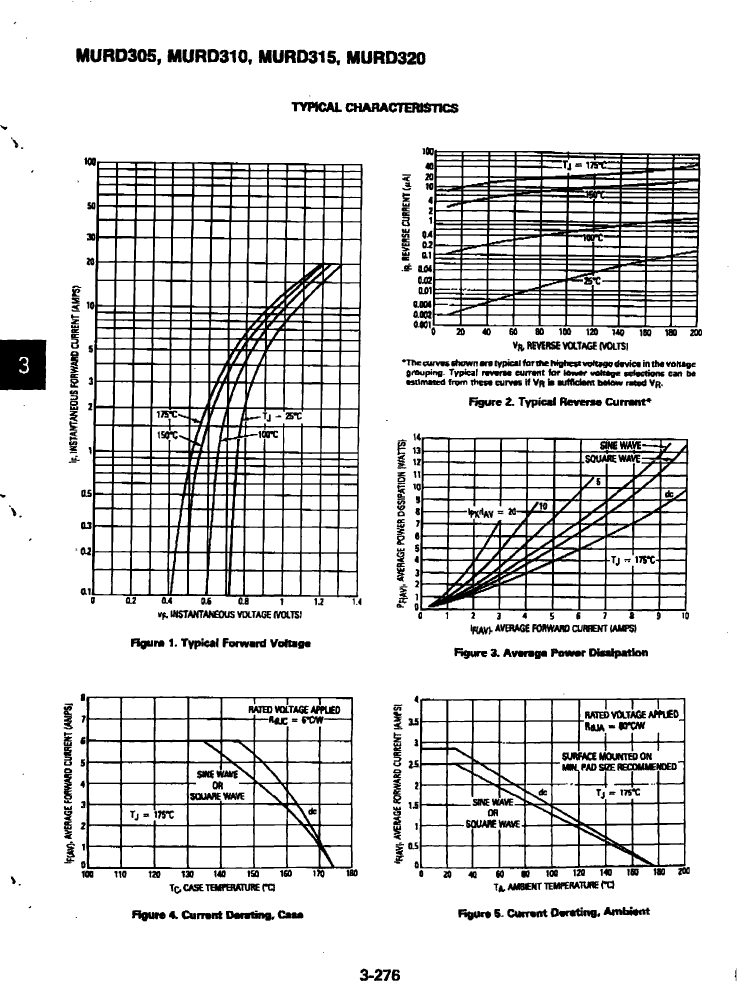

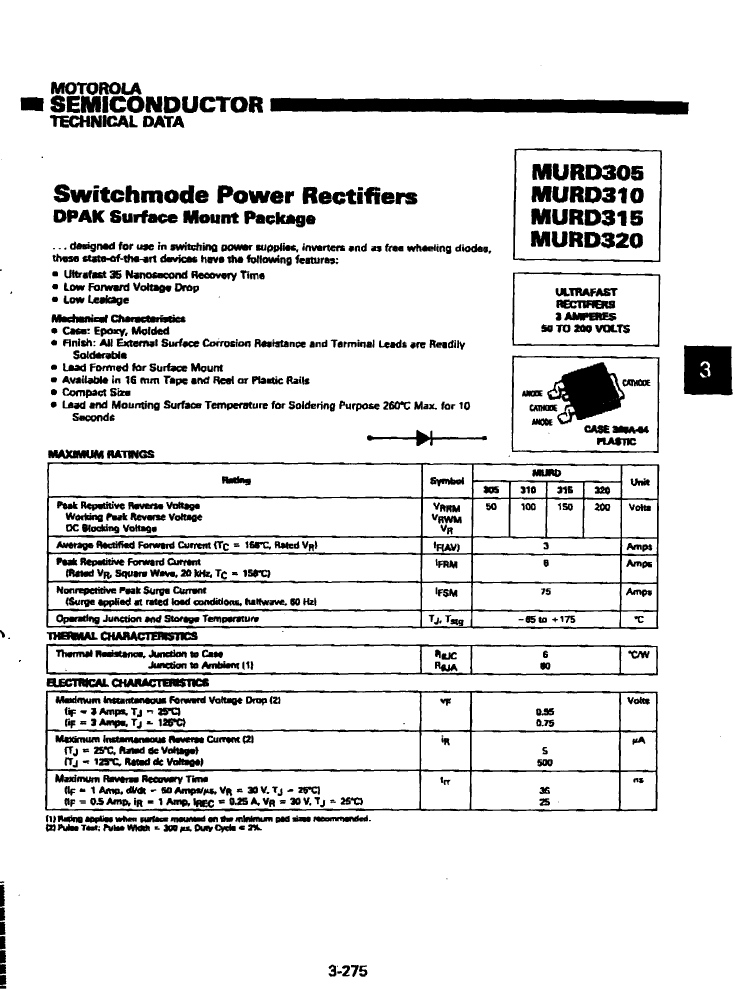

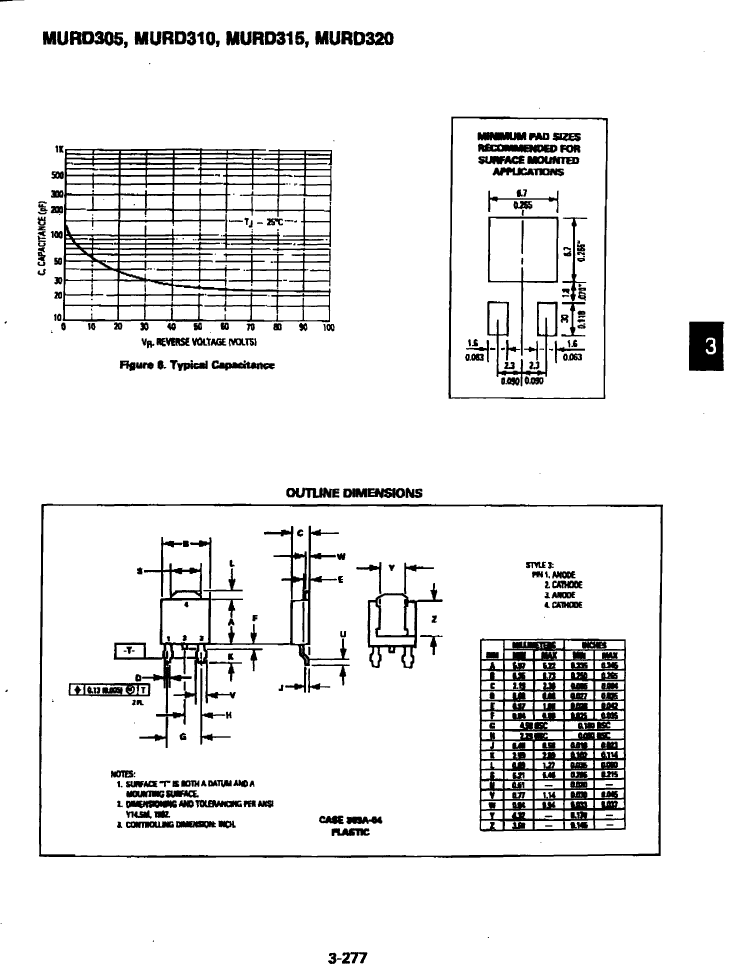

MURD315T4 Overview

3A, 150V, SILICON, RECTIFIER DIODE, COMPACT, PLASTIC, DPAK-3

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TO-247
package instruction	COMPACT, PLASTIC, DPAK-3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
application	ULTRA FAST RECOVERY POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	75 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse recovery time	0.036 µs
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

	MURD315T4	MURD310T4
Description	3A, 150V, SILICON, RECTIFIER DIODE, COMPACT, PLASTIC, DPAK-3	DIODE 3 A, 100 V, SILICON, RECTIFIER DIODE, COMPACT, PLASTIC, DPAK-3, Rectifier Diode
Is it Rohs certified?	incompatible	incompatible
Maker	ON Semiconductor	ON Semiconductor
Parts packaging code	TO-247	TO-247
package instruction	COMPACT, PLASTIC, DPAK-3	COMPACT, PLASTIC, DPAK-3
Contacts	3	3
Reach Compliance Code	_compli	not_compliant
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY POWER	ULTRA FAST RECOVERY POWER
Shell connection	CATHODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V
JESD-30 code	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e0
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	75 A	75 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	175 °C	175 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	240
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	100 V
Maximum reverse recovery time	0.036 µs	0.036 µs
surface mount	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	30
