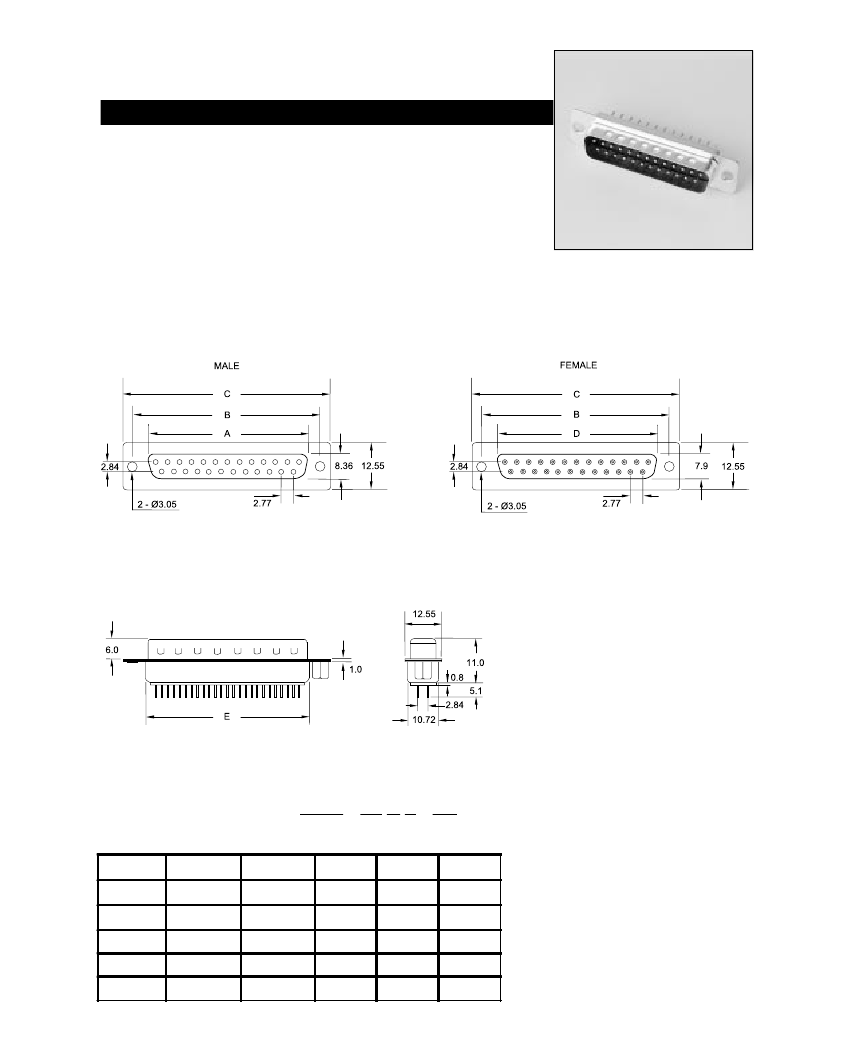

Series: DMS
PCB Straight D-Sub
Series options:
A = 4-40 Jack screws assembled on connector
B = Board locks
C = Clinch nuts (bottom side)
J = 4-40 Jack screws (bulk packed)
M = Machined pins
T = Threaded inserts (top side)
MALE
FEMALE
C
C
B
A
B
D
2.84
8.36
12.55
2.84
7.9
12.55
2 - Ø3.05
2.77
2 - Ø3.05
2.77
12.55
6.0
1.0
0.8
5.1
2.84
E
10.72
11.0
Ordering example:
Positions
09
15
25
37
50
A
16.92
25.25
38.96
55.42
52.86
B
24.99
33.32
47.04
63.50
61.11
DMS - 25 S 1 - AT
C
30.81
39.10
53.10
69.32
66.90
D
16.33
24.66
38.38
54.84
52.34
E
19.28
27.51
41.30
57.71
55.30
Specifications
D-Sub Connector Series:
D
Ratings:
Current
Dielectric strength
Contact resistance
Insulator resistance
5A
AC 1000V for 1 minute
30mΩ max. at DC 100mA
1000MΩ min. at DC 500V
Material:
Plastic
Color
Contact male
Contact female
Shell
Temperature
PBT Glass-filled, UL94V-0
Black
Brass
Phosphor Bronze
Tin
-55°C / +105°C, 260°C for 5 sec. (solder bath resistant)
ORDERING PROCEDURE
1
-
2
3
4
-
5
1) Series
2) Number of Positions (see chart for available positions)
3) Gender:
P = Male
S = Female
4) Plating:
1 = Full Flash Gold
6 = Selective Flash Gold
7 = Selective 10µ Gold*
8 = Selective 30µ Gold*
* May Require Minimums
5) Series options:
A = 4-40 Jack screws assembled on connector
B = Board locks
C = Clinch nuts
F = Ferrite
G = Grounding straps
J = 4-40 Jack screws (bulk packed)
M = Machined pins
P = All plastic
T = Threaded inserts
Please refer to following pages for ordering examples.
