564-180.0M-3N-TP210 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 564-180.0M-3N-TP210

564-180.0M-3N-TP210: DescriptionPECL Output Clock Oscillator, 180MHz Nom, J-LEADED, 6 PIN; CategoryPassive components oscillator; File Size130KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric Compare View All

564-180.0M-3N-TP210 Overview

PECL Output Clock Oscillator, 180MHz Nom, J-LEADED, 6 PIN

564-180.0M-3N-TP210 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
Reach Compliance Code	compli
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	180 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL
Output load	50 OHM
physical size	14.8mm x 9.8mm x 5.9mm
longest rise time	2 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

564-180.0M-3N-TP210 Preview

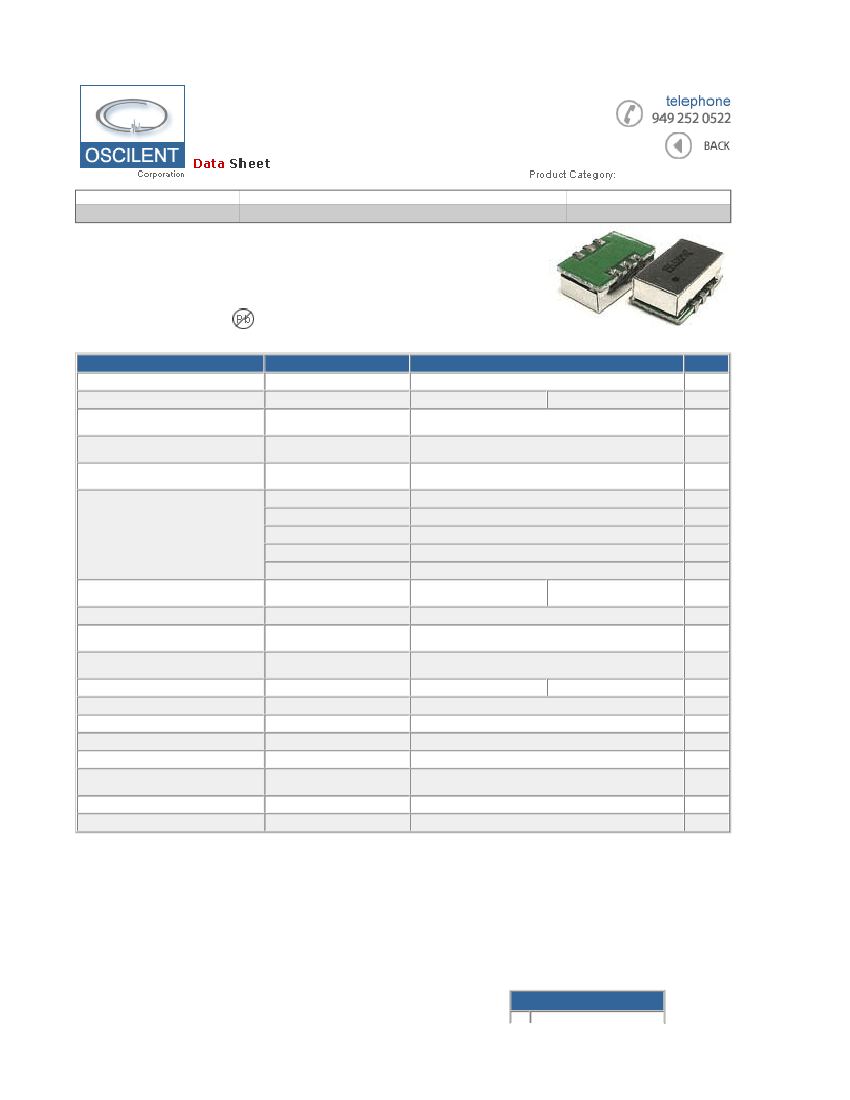

Oscilent Corporation | 564 Series VCXO - Voltage Control Crystal Oscillator

Page 1 of 2

VCXO Surface Mount

Series Number

Package

Description

Last Modified

564

FEATURES

- Wide voltage control range

- Wave form symmetry of 40/60%

- PECL output

- Industry standard PCB J-Lead 6 Pad

- RoHs / Lead Free compliant

6 Pad PCB J-Lead

PECL Output

Jan. 01 2007

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Output Logic

Input Voltage (VDD)

Frequency Range (f

)

Operating Temperature (T

OPR

)

Storage Temperature (T

STG

)

Absolute Pull Range (APR)

CONDITIONS

(a) Frequency Tolerance

(b) Temperature Stability

(d) Load Stability

Input Current (I

)

Aging

Rise Time (T

)

Fall Time (T

)

External Control Voltage (Vc)

Output Voltage High "1" VOH

Output Voltage Low "0" VOL

Load

Duty Cycle

Start-Up Time (T

)

Jitter

Linearity

@ 25°C

20% to 80% of Waveform

PECL

50% of Waveform

RMS

0.3 ~ 3.0

VDD - 1.025 min.

VDD - 1.620 max.

50 ±10 (Std.) / 50 ±5 (Option)

10 max.

3.5 max.

±20 (Std.) / Custom Spec. Avail.

CHARACTERISTICS

Positive ECL Square Wave (PECL)

3.3 ±10%

5.0 ±10%

UNITS

VDC

MHz

°C

PPM

PPM/Y

0.5 ~ 4.5

VDC

Ohms

19.440 ~ 180.0 (Inverted Mesa UM-1)

0 ~ +70 (Std.) / -40 ~ 85 (Option)

-55 ~ +125

±30 (Std.), ±50, ±75, ±100 max.

Inclusive of Overall Stability

Inclusive of Overall Stability (Operating Temperature)

Inclusive of Overall Stability (VDD ±5%)

Inclusive of Overall Stability (RL ±5%)

80 max.

±1 max.

2 max.

120 max.

PIN CONNECTIONS

Oscilent Corporation | 564 Series VCXO - Voltage Control Crystal Oscillator

Page 2 of 2

#1 Voltage Control

Enable (low) /Disable

(high)

#3 GND

#4 OUTPUT

#5 Complimentary Output

#6 Vcc

PART NUMBER GUIDE

Series

Number

Frequency

Voltage Supply

Option

Operating Temp. (°

Duty Cycle

Absolute Pulling

Range

Linearity

564

Oscilent

VCXO

PECL

PCB J-Lead

- 120.0 M

Enter your desired

frequency

e.g.

120.0M for 120.000

MHz

-3

5 = 5VDC

3 = 3.3VDC

Blank* = 0~+70

N = -40~+85

-T

Blank*= 50±10%

T = 50±5%

P1 = 50PPM

P2 = 100PPM

P4 = 30PPM

P5 = 75PPM

20 = 20%

10 = 10%

NOTE:

- Deviations on all parameters available. Please consult Oscilent for details.

DEFINITIONS:

- Click on the characteristic names above for definitions of that particular characteristic.

*STANDARDS:

- "Blank" part number selections indicate standard variables for that particular characteristic.

PACKAGING:

- Standard tube packaging, add

-TR

for Tape/Reel. Click

here

for tape/reel specifications

Series No.:

564

Crystal Oscillators

Quartz Crystal

TCXO

VCXO

IF SAW Filter

RF SAW Filter

Ceramic Resonator

Crystal Filter

Ceramic Filter

SAW Filter / SAW Devices

Site Map

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

564-180.0M-3N-TP210 Related Products

	564-180.0M-3N-TP210	564-19.44M-3N-P410	564-180.0M-5N-TP510	564-180.0M-5-P120	564-19.44M-3-P110
Description	PECL Output Clock Oscillator, 180MHz Nom, J-LEADED, 6 PIN	PECL Output Clock Oscillator, 19.44MHz Nom, J-LEADED, 6 PIN	PECL Output Clock Oscillator, 180MHz Nom, J-LEADED, 6 PIN	PECL Output Clock Oscillator, 180MHz Nom, J-LEADED, 6 PIN	PECL Output Clock Oscillator, 19.44MHz Nom, J-LEADED, 6 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compli	compliant	compliant
Other features	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE	ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TUBE
Maximum control voltage	3 V	3 V	4.5 V	4.5 V	3 V
Minimum control voltage	0.3 V	0.3 V	0.5 V	0.5 V	0.3 V
maximum descent time	2 ns	2 ns	2 ns	2 ns	2 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
Frequency offset/pull rate	100 ppm	30 ppm	75 ppm	50 ppm	50 ppm
linearity	10%	10%	10%	20%	10%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	180 MHz	19.44 MHz	180 MHz	180 MHz	19.44 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-
Oscillator type	PECL	PECL	PECL	PECL	PECL
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
physical size	14.8mm x 9.8mm x 5.9mm	14.8mm x 9.8mm x 5.9mm	14.8mm x 9.8mm x 5.9mm	14.8mm x 9.8mm x 5.9mm	14.8mm x 9.8mm x 5.9mm
longest rise time	2 ns	2 ns	2 ns	2 ns	2 ns
Maximum supply voltage	3.63 V	3.63 V	5.5 V	5.5 V	3.63 V
Minimum supply voltage	2.97 V	2.97 V	4.5 V	4.5 V	2.97 V
Nominal supply voltage	3.3 V	3.3 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	60/40 %	55/45 %	60/40 %	60/40 %
Maker	Oscilent	Oscilent	Oscilent	-	-
