Sav-Con
®
Connector
Savers
Sav-Con
®
Connector Savers
MIL-DTL-38999 Series II
94 0 L 004 M 16 G 35 P A 131
Series No.
Class
0 = General Duty
1 = Environmental
2 = Hi Rel
L = Lock Ring (Optional)
- = Standard
Basic Part No.
Finish Symbol
(See Page G- 6)
1.20
(30.5)
MAX
Modification Code* (Omit for None)
Alternate Position
A, B, C, D (Omit for Normal)
P = Pins, Plug Side
S = Sockets, Plug Side
Insert Arrangement
G = EMI Ground Spring (Optional)
- = Standard
Shell Size
EMI Ground Spring
(Optional)
Interfacial Seal
(Class 1 & 2)

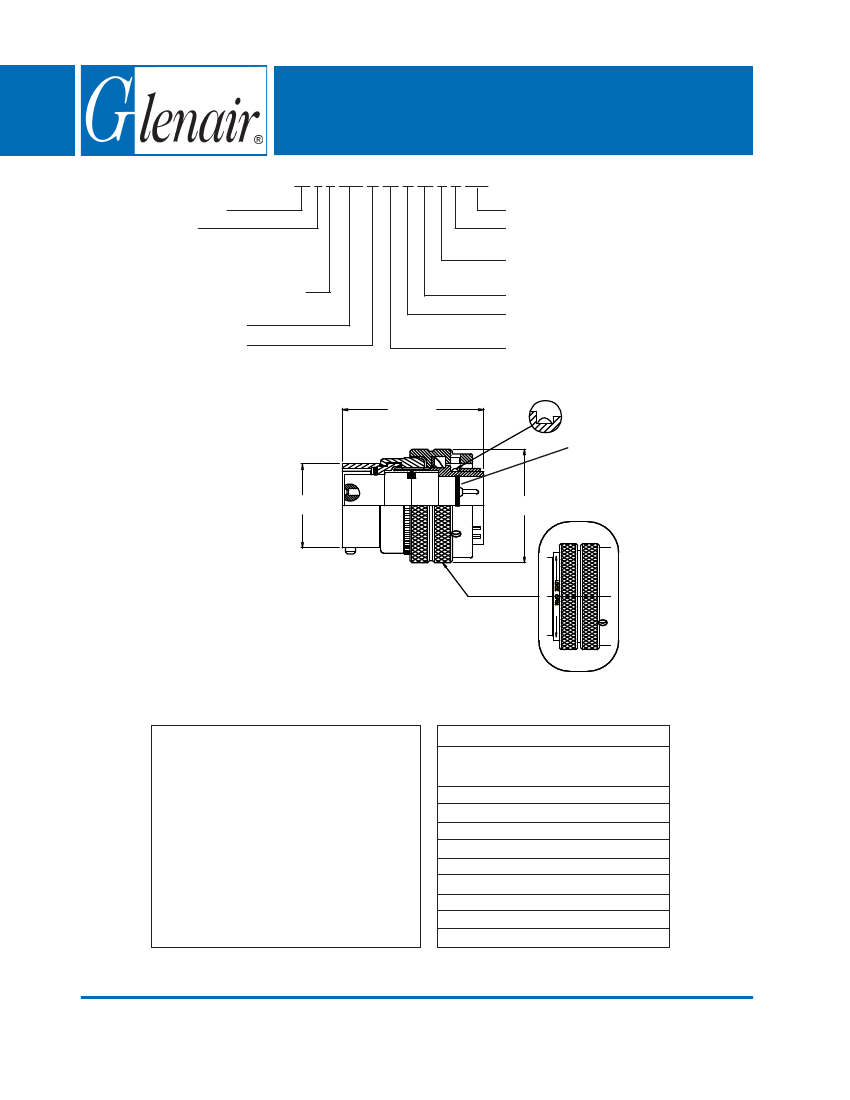

RECEPTACLE END
A
B
PLUG END
LOCK RING
(Optional)
*Add Modification Code 131 for Dry Lubricant on inside surfaces of Coupling Nut.
May not be suitable for space applications.
TABLE I
Shell
Size
A
Max
.474 (12.0)
.591 (15.0)
.751 (19.1)
.875 (22.2)
1.001 (25.4)
1.126 (28.6)
1.251 (31.8)
1.376 (35.0)
1.501 (38.1)
B
Max
.750 (19.1)
.859 (21.8)
1.031 (26.2)
1.156 (29.4)
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.777 (45.1)
Intermateable with the following
connectors:
40M38277; PAN 6433-1;
PATT 614;
NFC C93-422 (HE309)
08
10
12
14
16
18
20
22
24
Metric Dimensions (mm) are indicated in parentheses.
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-14
