QuickNet
™
PanMPO
™
Round
Interconnect Cable Assemblies
technical information
PanMPO
™

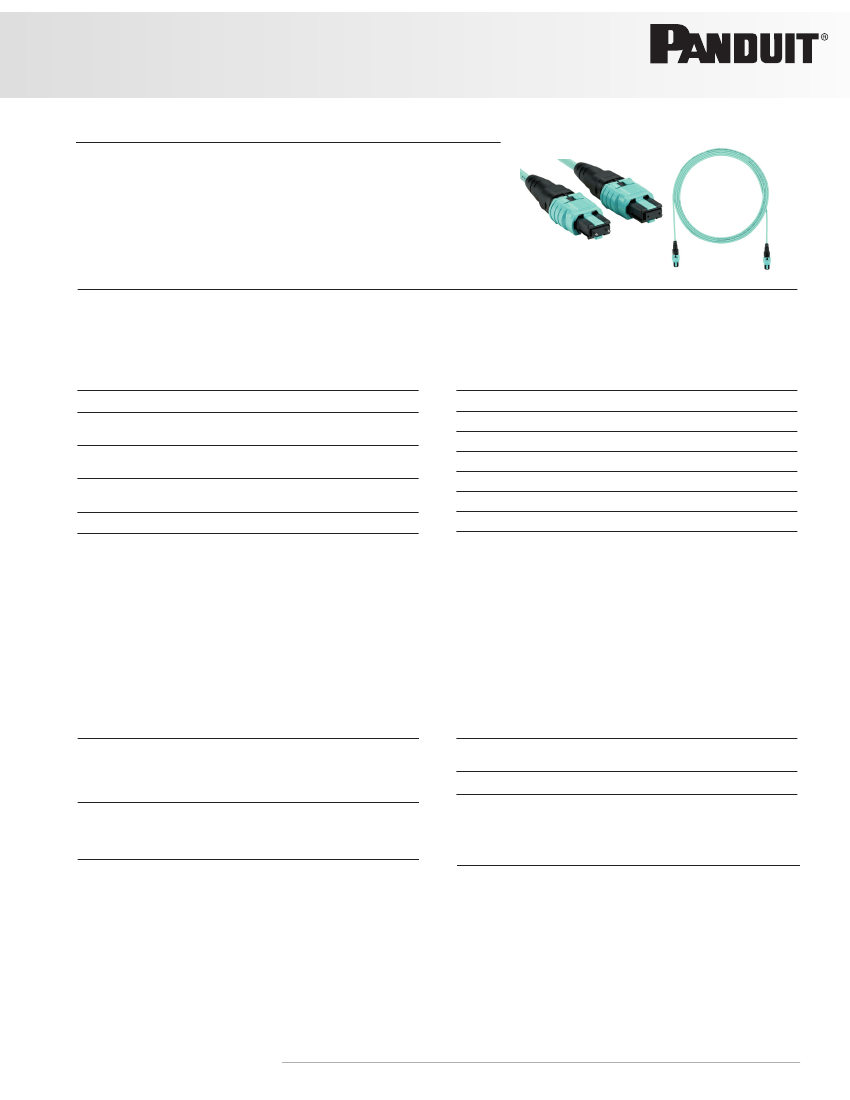

Round Interconnect Cable Assemblies are pre-terminated 12-fiber cable
assemblies. The unique design of the PanMPO
™
Connector allows for rapid gender
and polarity change in the field, in support of standards-compliant cable plant migration
from 10G cassette-based systems to 40G MPO connector-based parallel optics cable
plant. PanMPO
™
Interconnect Assemblies meet the demands of 10G Ethernet and higher
speed 40G Ethernet and high speed ANSI Fibre Channel systems while maintaining
compliance to the recommendations of TIA 568C for both Serial Duplex and Parallel
Optics wiring schemes.
S P E C I F I C AT I O N S H E E T
application
Method A and Method B TIA-568-C compliant for 40G parallel optics multimode applications. 10G Horizontal cabling systems with cassettes
and/or harnesses; Horizontal cabling systems and patch cords for 40G parallel optic multimode systems. In horizontal cabling applications,
intended for use in FiberRunner
®
or equivalent protected pathway. Provides easy migration path from 10G serial to 40G parallel optics for
horizontal cabling applications.
construction
Cable type:
Cable
jacket ratings:
Fiber types:
Connector types;
end ‘A’ and end ‘B’:
Fiber count:
Jacket color:
3.0mm indoor round
Optical Fiber Nonconductive Plenum (OFNP)
Low Smoke Zero Halogen (LSZH)
Multimode:
OM3 50/125µm
OM4 50/125µm
physical properties
Cable outside diameter (OD):
Minimum bend radius:
Cable retention strength:
Flex:
Twist:
Connector durability:
Gender reversal durability:
Aqua
Aqua
Polarity reversal durability:
3.0mm
30mm
50N
100 cycles at 4.9N
10 cycles at 15N
500 mating cycles*
50 cycles
50 cycles
PanMPO Female or PanMPO Male
12
OM3:
OM4:
optical properties
Maximum cable
attenuation:
Multimode:
3.5dB/km at 850nm
1.5dB/km at 1300nm
environmental properties
Storage and
shipping temperature:
Installation temperature:
-40°C to 70°C
0°C to 40°C
-10°C to 60°C
Maximum connector
insertion loss:
Standard
Multimode:
Optimized
Multimode:
Multimode:
Operating temperature:
0.50dB
0.35dB
OM3 26dB
OM4 26dB
Minimum connector
return loss:
standards
Meets or exceeds TIA/EIA-568-C.3,
TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, RoHS Compliant
*With proper cleaning and inspection.
w w w.pand uit.co m
QuickNet
™
PanMPO
™
Round Interconnect Cable Assemblies
part number
Example: FZTRP7N7NANM001 = Fiber OM4, 12-fibers, 3.0mm round indoor, plenum rated, PanMPO female to PanMPO female, polarity
method A, no pulling eye, 1 meter
CHARACTER
EXAMPLE
1
F
2
Z
3
T
4
R
5
P
6
7
7
N
8
7
9
N
10
A
11
N
12
M
13
0
14
0
15
1
1 – Fiber Product
F = Fiber
2 –
Fiber Type
X = OM3 50/125
Z = OM4 50/125
3 – Fiber Count
T = 12-fibers
4 – Cable Type
R = 3.0mm round indoor
5 – Jacket Type
L = Low Smoke Zero Halogen (LSZH)
P = Optical Fiber Nonconductive
Plenum (OFNP)
6 – Connector Type End ‘A’
7 = PanMPO female
8 = PanMPO male
7 – Connector Variant (end A)
N = No variant
8 – Connector Type End ‘B’
7 = PanMPO female
8 = PanMPO male
9 – Connector Variant (end B)
N = No variant
10 – Construction/Performance
A = Polarity A – standard IL
B = Polarity B – standard IL
X = Polarity A – optimized IL
Y = Polarity B – optimized IL
11 – Other
N = No pulling eye
12 – Unit of Length
F = Feet
M = Meters
13, 14, 15 – Length
1 – 30m (001-030)
3 – 100 feet (003-100)

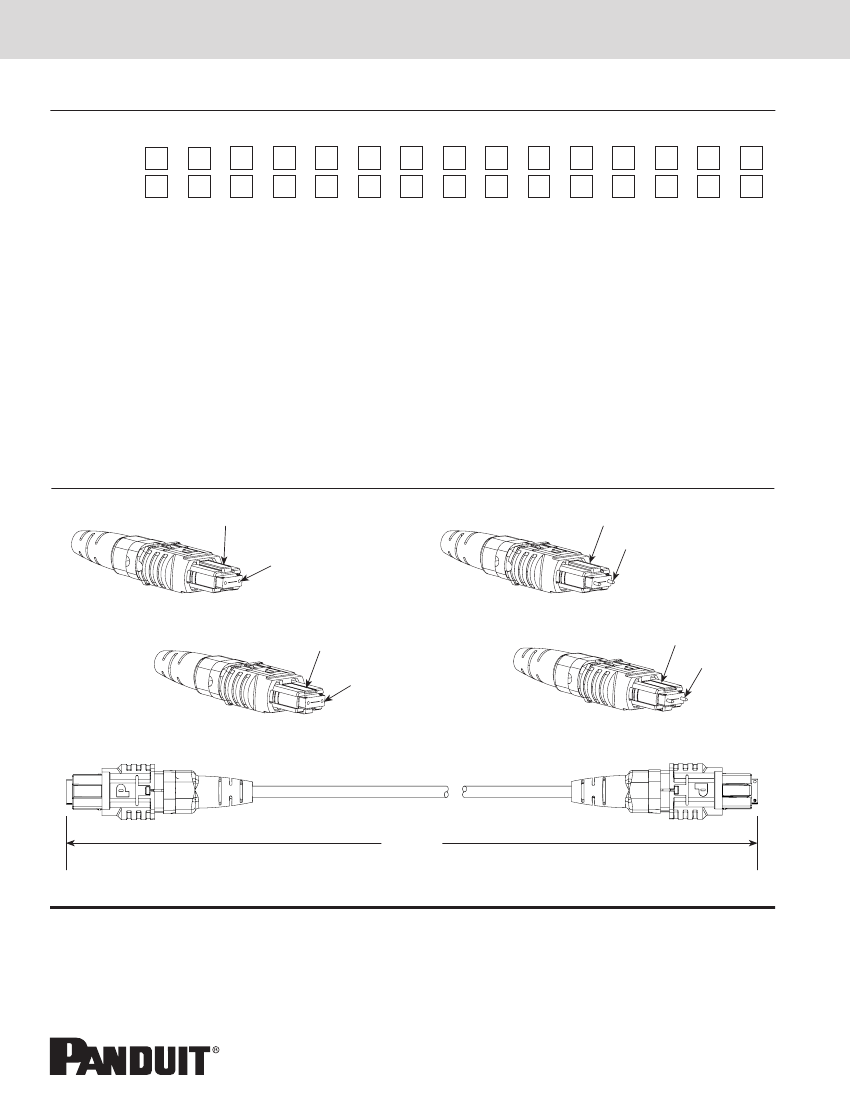

cable assembly detail
Key Up
Female
Key Up
Male
Key Down
Female
Key Down
Male
Length
