942L008NF12-24 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > 942L008NF12-24

Preview

942L008NF12-24: DescriptionConnector Savers; File Size83KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

942L008NF12-24 Overview

Connector Savers

Preview

Download Datasheet

View All

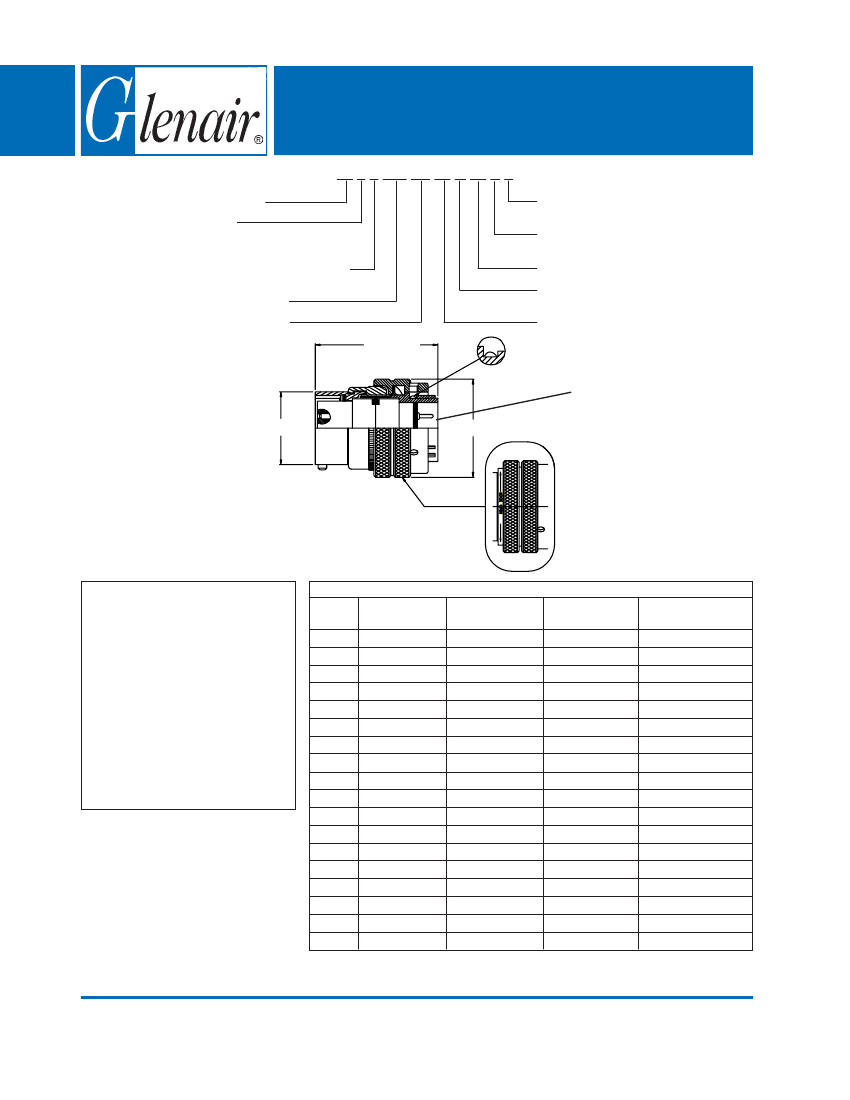

Sav-Con

®

Connector

Savers

LN 29729 (SJT)

Sav-Con

®

Connector Savers

94 1 L 008 NF 28 G 22 P X

Series No.

Class

1 = Environmental

2 = Hi Rel

L = Lock Ring (Optional)

- = Standard

Basic Part No.

Finish Symbol

(See Page G-6)

Alternate Position

W, X, Y, Z (Omit for Normal)

P = Pins, Plug Side

S = Sockets, Plug Side

Insert Arrangement

G = EMI Ground Spring (Optional)

- = Standard

Shell Size

EMI Ground Spring

(Optional)

Interfacial Seal

2.000

(50.8)

MAX

RECEPTACLE END

A

B

PLUG END

Lock Ring

(Optional)

TABLE I

Shell

Size

08S

08L

12S

12

14S

14

16S

16

18

20

22

24

28

32

36

40

44

48

A

Ref

.500 (12.7)

.625 (15.9)

.750 (19.1)

.875 (22.2)

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.375 (34.9)

1.500 (38.1)

1.750 (44.5)

2.000 (50.8)

2.250 (57.2)

2.500 (63.5)

2.750 (69.9)

3.000 (76.2)

B

Max

1.750 (44.5)

2.125 (54.0)

1.750 (44.5)

2.125 (54.0)

1.750 (44.5)

2.125 (54.0)

C

Max

.844 (21.4)

.969 (24.6)

1.062 (27.0)

1.156 (29.4)

1.250 (31.8)

1.344 (34.1)

1.469 (37.3)

1.594 (40.5)

1.719 (43.7)

1.969 (50.0)

2.219 (56.4)

2.469 (62.7)

2.719 (69.1)

2.969 (75.4)

3.219 (81.8)

D Thread

Class 2A

1/2 - 28 UNEF

5/8 - 24 UNEF

3/4 - 20 UNEF

7/8 - 20 UNEF

1 - 20 UNEF

1 1/8 - 18 UNEF

1 1/4 - 18 UNEF

1 3/8 - 18 UNEF

1 1/2 - 18 UNEF

1 3/4 - 18 UNS

2 - 18 UNS

2 1/4 - 16 UNS

2 1/2 - 16 UN

2 3/4 - 16 UN

3 - 16 UN

Intermateable

with the following

connectors:

PAN 6433-2, PATT 615,

NFC C93-422 (HE306),

VG 96912

Metric Dimensions (mm) are indicated in parentheses.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

G-24
