803-99-094-10-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-99-094-10-001

803-99-094-10-001: DescriptionBoard Connector, 94 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Parametric View All

803-99-094-10-001 Overview

Board Connector, 94 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

803-99-094-10-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	PRECI-DIP
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (197)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	94

Preview

Download Datasheet

View All

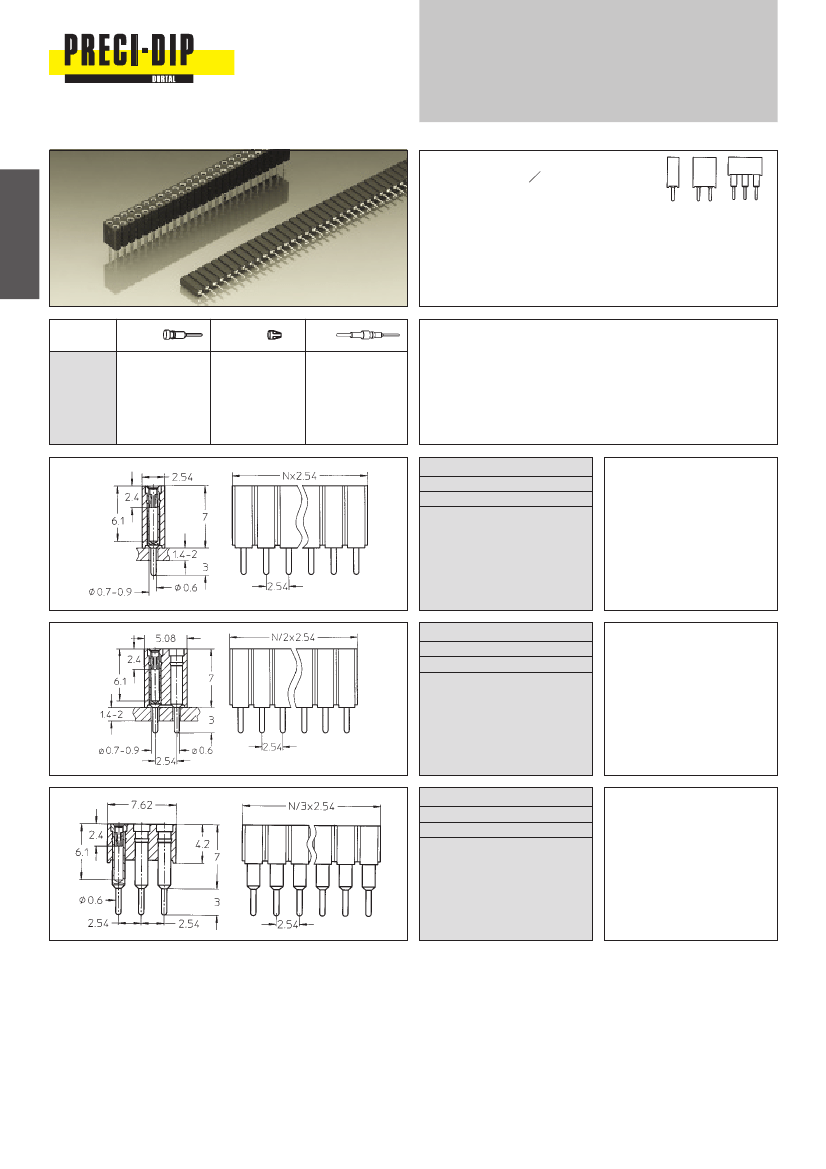

Series 800

PCB connectors 2.54 mm

Single row / double row / triple row

Solder tail

Receptacles, solder tail

Accept square pins

0.635 mm

and round pins

∅

0.70–0.80 mm

For corresponding pin connectors see

pages 30 to 35

Platings

Sleeve

µm

Sn Pb

µm

Sn Pb

µm

Sn Pb

Clip

0.25

µm

0.75

µm

Sn Pb

Ordering information

Replace

xxx

with the number of poles, e.g. 803-91-xxx-10-001

for a double row version with 8 pins per row becomes:

803-91-016-10-001

801-91-xxx-10-001

801-93-xxx-10-001

801-99-xxx-10-001

Straight receptacle: solder tail,

single row

Availability from: 1 to 50 contacts

Standard number of contacts 24,

28, 29, 30, 36, 42, 48, 50

Option

On request with clinched

(right/left) solder tails

803-91-xxx-10-001

803-93-xxx-10-001

803-99-xxx-10-001

Straight receptacle: solder tail,

double row

Availability from: 4 to 100

contacts

Standard number of contacts 72

and 100

805-91-xxx-10-001

805-93-xxx-10-001

805-99-xxx-10-001

Straight receptacle: solder tail,

triple row

Availability from: 9 to 96 contacts

Standard number of contacts 96
