PR4000P-75SG179C datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PR4000P-75SG179C

PR4000P-75SG179C: DescriptionRISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179; CategoryThe embedded processor and controller Microcontrollers and processors; File Size883KB，24 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

PR4000P-75SG179C Overview

RISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179

PR4000P-75SG179C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pyramid Semiconductor Corporation
Parts packaging code	PGA
package instruction	HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179
Contacts	179
Reach Compliance Code	unknow
ECCN code	3A001.A.3
Other features	8 PIPELINE STAGES
Address bus width	64
bit size	64
boundary scan	YES
maximum clock frequency	75 MHz
External data bus width	64
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	R-CPGA-P179
JESD-609 code	e0
length	4.735 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	7
Number of serial I/Os
Number of terminals	179
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA179,18X18
Package shape	RECTANGULAR
Package form	GRID ARRAY
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.23 mm
speed	75 MHz
Maximum slew rate	1820 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	4.32 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

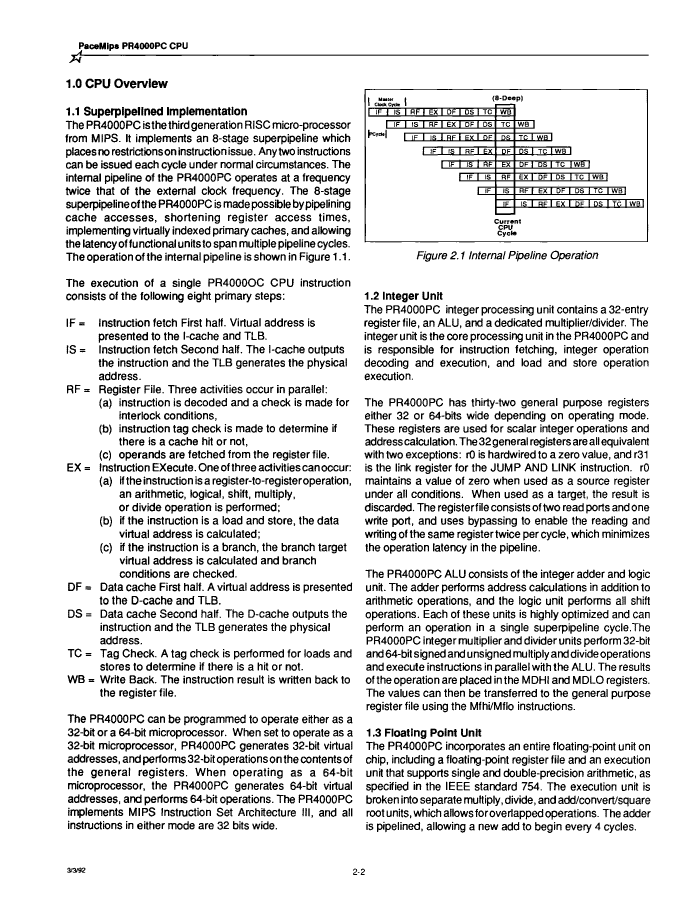

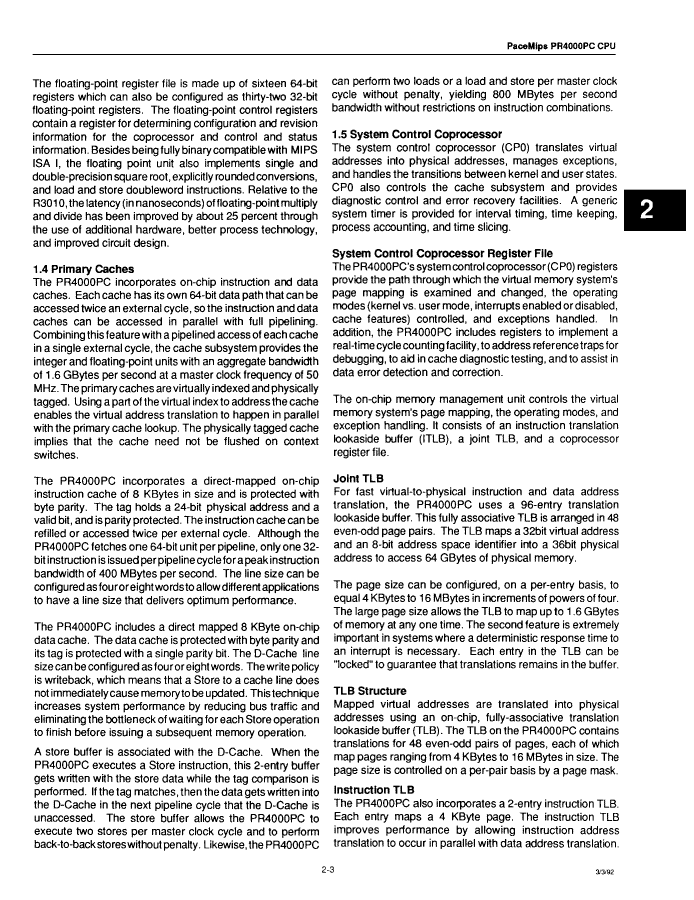

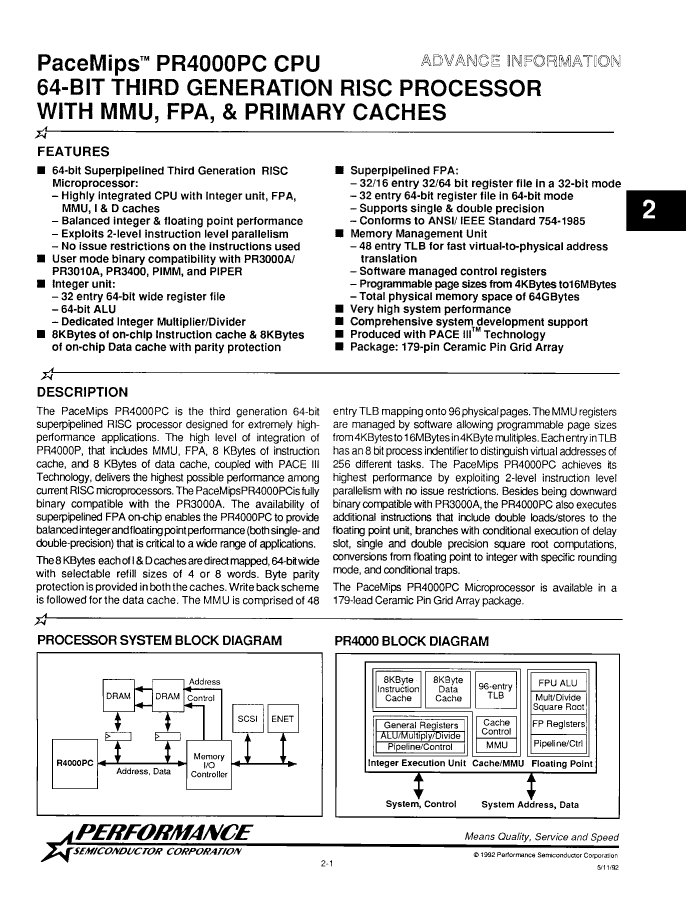

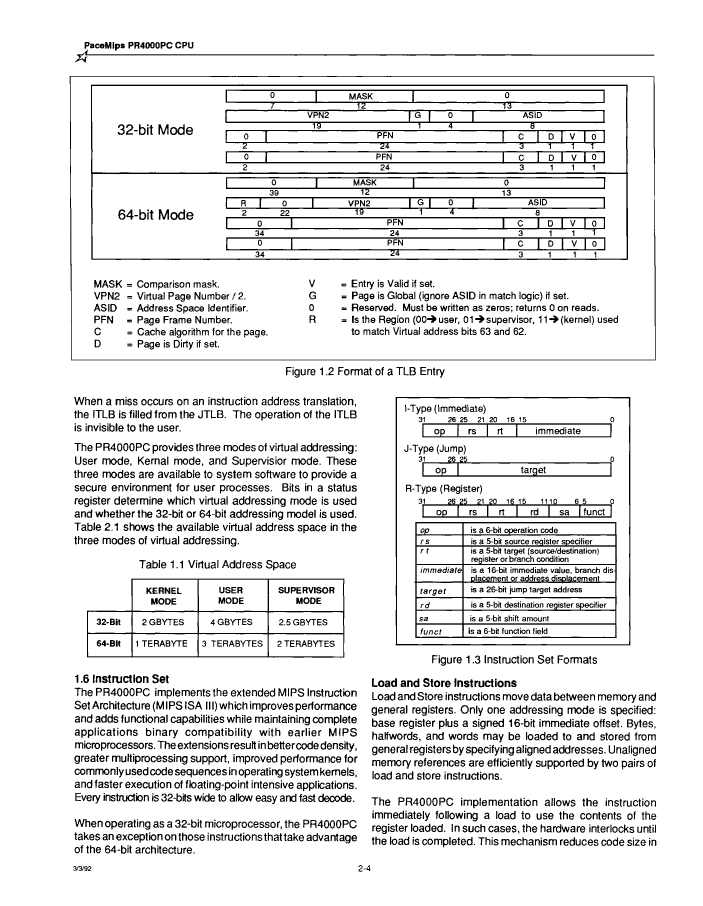

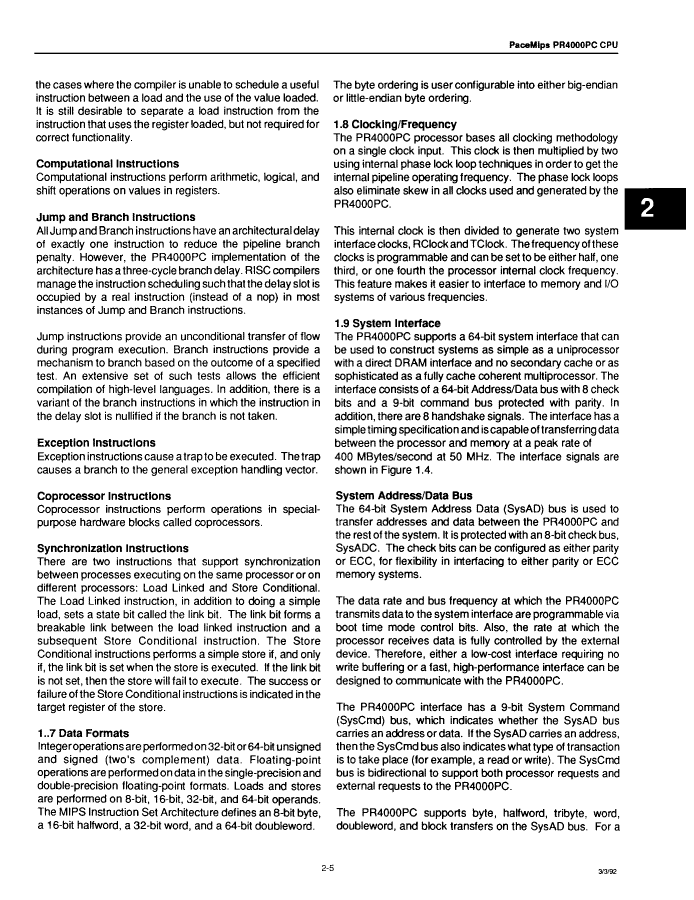

Preview

Download Datasheet

View All

PR4000P-75SG179C Related Products

	PR4000P-75SG179C	PR4000P-50SG179M	PR4000P-50SG179B	PR4000P-50SG179C
Description	RISC Microprocessor, 64-Bit, 75MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179	RISC Microprocessor, 64-Bit, 50MHz, CMOS, CPGA179, HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	PGA	PGA	PGA	PGA
package instruction	HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179	PGA,	PGA, PGA179,18X18	HERMETIC SEALED, CAVITY-DOWN, CERAMIC, PGA-179
Contacts	179	179	179	179
Reach Compliance Code	unknow	unknown	unknown	unknown
ECCN code	3A001.A.3	3A001.A.2.C	3A001.A.2.C	3A001.A.3
Other features	8 PIPELINE STAGES	8 PIPELINE STAGES	8 PIPELINE STAGES	8 PIPELINE STAGES
Address bus width	64	64	64	64
bit size	64	64	64	64
boundary scan	YES	YES	YES	YES
maximum clock frequency	75 MHz	50 MHz	50 MHz	50 MHz
External data bus width	64	64	64	64
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-CPGA-P179	R-CPGA-P179	R-CPGA-P179	R-CPGA-P179
JESD-609 code	e0	e0	e0	e0
length	4.735 mm	4.735 mm	4.735 mm	4.735 mm
low power mode	NO	NO	NO	NO
Number of terminals	179	179	179	179
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA	PGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.23 mm	5.23 mm	5.23 mm	5.23 mm
speed	75 MHz	50 MHz	50 MHz	50 MHz
Maximum supply voltage	5.25 V	5.5 V	5.5 V	5.25 V
Minimum supply voltage	4.75 V	4.5 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	MILITARY	MILITARY	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
width	4.32 mm	4.32 mm	4.32 mm	4.32 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Maker	Pyramid Semiconductor Corporation	-	Pyramid Semiconductor Corporation	Pyramid Semiconductor Corporation
