2028-03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2028-03

2028-03: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

2028-03 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE

2028-03 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	N-M; SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

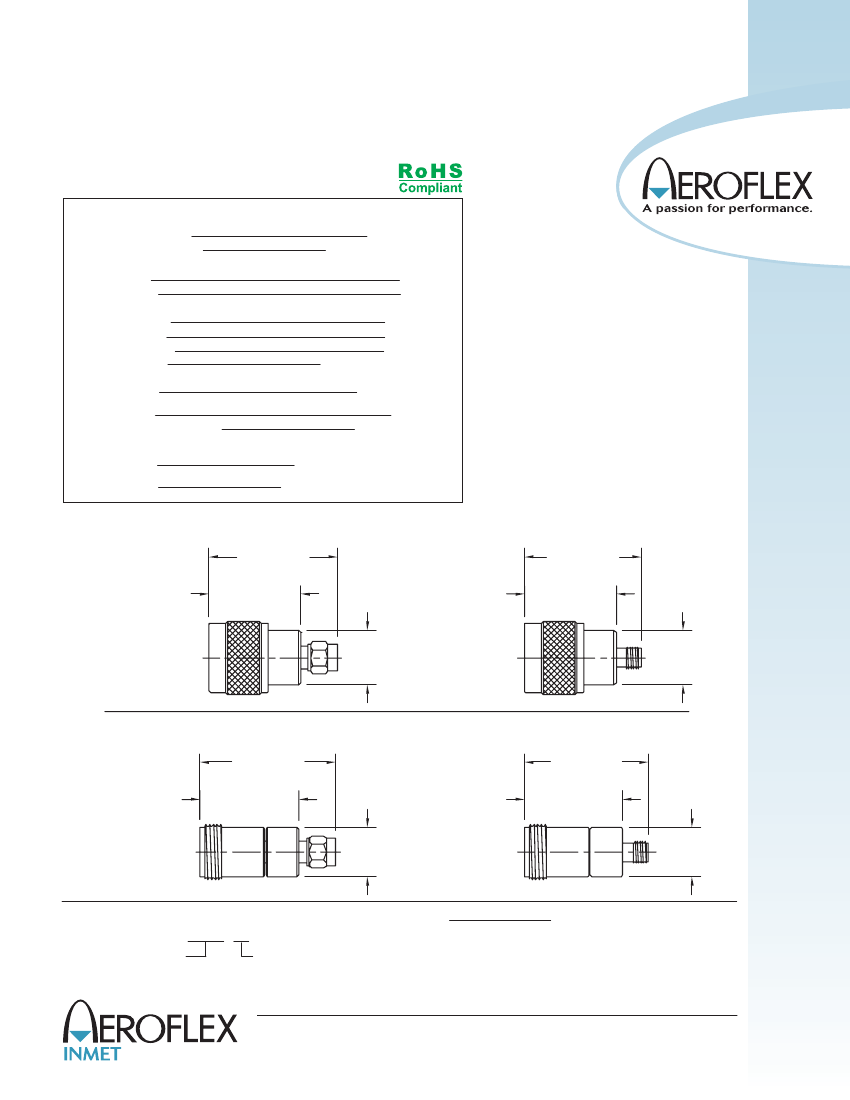

ATTENUATORS

SMA / TYPE N, DC - 18 GHz, Between Series

SPECIFICATIONS:

Models: 2028, 2029, 2030 & 2031

Electrical:

Frequency Range

Standard dB Values

Atten. Accuracy

0 - 6 dB

7 - 20 dB

VSWR

DC - 4 GHz

4 - 10 GHz

10 - 18 GHz

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 18 GHz

0 - 10, 12, 15 & 20 dB

In 1 dB Increments

±0.3 dB

±0.5 dB

1.10:1 Max

1.20:1 Max

1.30:1 Max

2 Watts Avg. @ 25°C

Derated Linearly to 0.5 Watts @ +125

250 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-65°C to +125°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

Model Number:

2029-XX

Type N Male / SMA Female

Mechanical:

Connectors

Mates with MIL-STD-348

Conductors

Model Number:

2028-XX

Type N Male / SMA Male

1.45 ±.05

[36.8 ±1.3]

1.03 ±.02

[26.2 ±0.5]

1.32 ±.05

[33.4 ±1.3]

1.03 ±.02

[26.2 ±0.5]

Ø.62

[15.8]

Ø.62

[15.8]

Model Number:

2030-XX

Type N Female / SMA Male

Model Number:

2031-XX

Type N Female / SMA Female

1.53 ±.05

[38.9 ±1.3]

1.11 ±.02

[28.2 ±0.5]

.56

[14.2]

1.40 ±.05

[35.6 ±1.3]

1.11 ±.02

[28.2 ±0.5]

.56

[14.2]

HOW TO ORDER:

Model Number:

20XX-YY

Base Number

dB Value

Ordering Example:

Model Number:

2029-20

20 dB; Type N Male / SMA Female

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

2028: REV H

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • sales@aeroflex-inmet.com
