UPD42S17405LG3-A60 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> UPD42S17405LG3-A60

Preview

UPD42S17405LG3-A60: DescriptionIC,DRAM,EDO,4MX4,CMOS,TSOP,24PIN,PLASTIC; Categorystorage storage; File Size634KB，34 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

UPD42S17405LG3-A60 Overview

IC,DRAM,EDO,4MX4,CMOS,TSOP,24PIN,PLASTIC

UPD42S17405LG3-A60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	26
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-G24
length	17.14 mm
memory density	16777216 bi
Memory IC Type	EDO DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	1.2 mm
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.62 mm

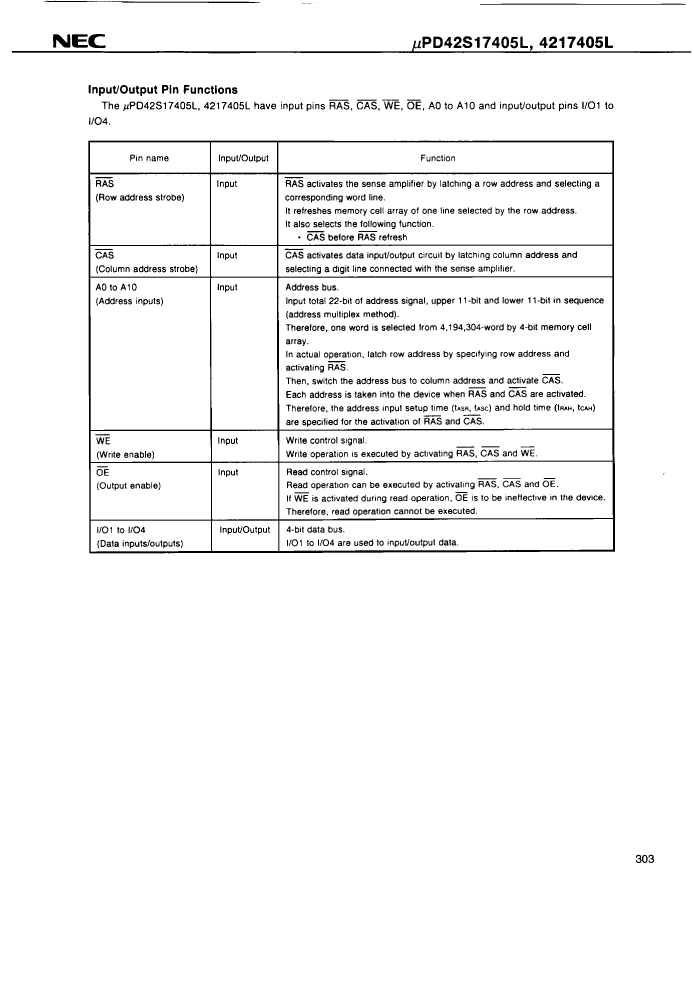

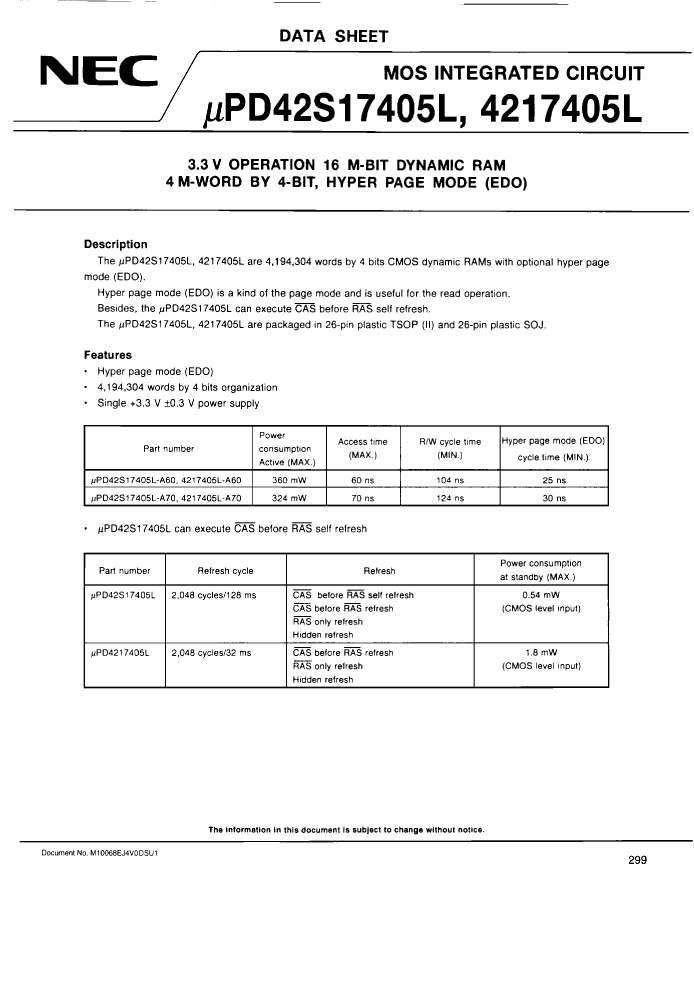

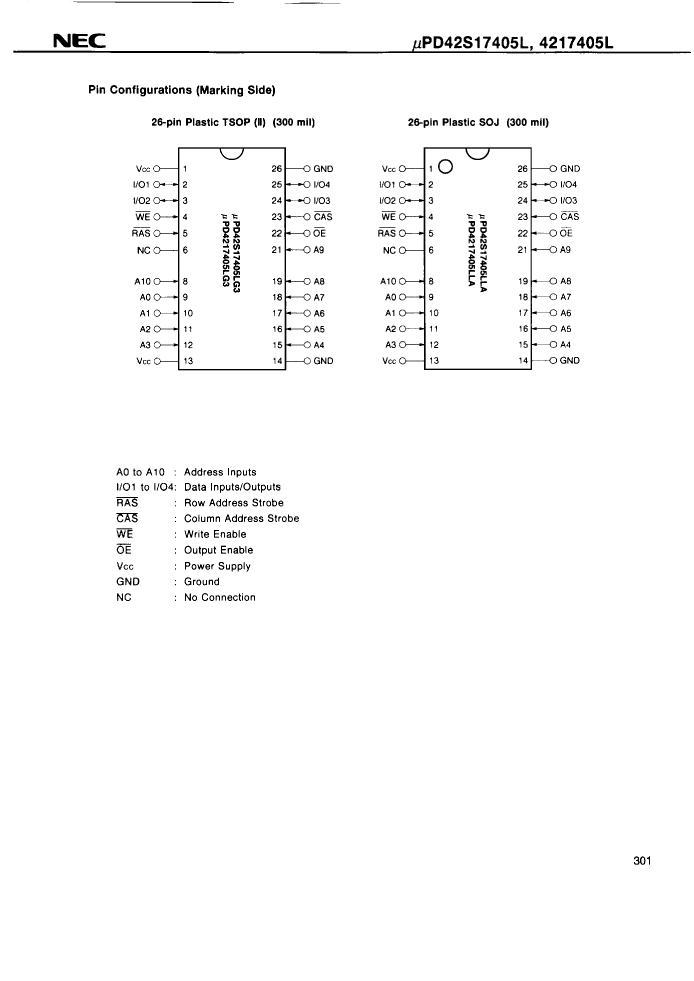

UPD42S17405LG3-A60 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UPD42S17405LG3-A60 Related Products

	UPD42S17405LG3-A60	UPD4217405LG3-A70	UPD42S17405LG3-A70
Description	IC,DRAM,EDO,4MX4,CMOS,TSOP,24PIN,PLASTIC	IC,DRAM,EDO,4MX4,CMOS,TSOP,24PIN,PLASTIC	4MX4 EDO DRAM, 70ns, PDSO24, 0.300 INCH, PLASTIC, TSOP2-26/24
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	TSOP2	TSOP2	TSOP2
package instruction	TSOP2,	TSOP2,	TSOP2,
Contacts	26	26	26
Reach Compliance Code	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	70 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
length	17.14 mm	17.14 mm	17.14 mm
memory density	16777216 bi	16777216 bit	16777216 bi
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM
memory width	4	4	4
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	24	24	24
word count	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	4MX4	4MX4	4MX4
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048
Maximum seat height	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
self refresh	YES	-	YES
