METALLIZED POLYCARBONATE FILM CAPACITORS
WRAP AND FILL – OVAL AXIAL LEADS
METALLIZED POLYCARBONATE
SELF HEALING, HIGH RELIABILITY
HIGH STABILITY
LOW CAPACITANCE CHANGE OVER WIDE TEMPERATURE
RANGE
HIGH VOLUMETRIC EFFICIENCY
PRECISION CIRCUITS REQUIRING LOW LOSSES, LIGHT
DUTY, LOW FREQUENCY ENERGY DISCHARGE,
COUPLING AND DECOUPLING
STYLE “A2”
POLYESTER TAPE WRAP, END FILLED WITH EPOXY
ROUND-CYLINDRICAL SHAPE, AXIAL LEADS
DESIGNED TO MEET THERMAL SHOCK, VIBRATION AND MOISTURE RESISTANCE
SPECIFICATIONS
Metallized polycarbonate capacitors are also available in in oval-rectangular, axial-lead “Style A1”.
Hermetically sealed units are available. Please contact factory or representative.
SPECIFICATIONS
CONSTRUCTION:
Metalized Polycarbonate capacitors are available only in extended foil (non-inductive)
construction.
PACKAGING:
Polyester tape wrap with epoxy endfills gives the best possible volume density for this type
unit.
LEADS:
Copperweld (steel, coated with 30% copper by weight and tinplated with 60-40 Sn-Pb) is standard
and may be soldered or welded in circuit assembly.
TEMPERATURE RANGE:
May be operated at rated DC voltage from -55°C to 125°C without derating
voltage.
ELECTRICAL (NON-DESTRUCTIVE) TEST:
1. Capacitance shall be measured at or referred to 1000 ± 20 Hz at 25 ± 5°C for capacitance values
up to and including 1.0 uf. Capacitance values greater than 1.0 MFD shall be measured at 60 ± 6
Hz.
Ref: MIL-STD-202E, Method 305.
2. Dissipation factor shall be measured as described for capacitance and shall not exceed 0.3% to 1
MFD, 0.5% greater than 1 MFD. Typical values throughout the temperature range, are given on
curves.
3. Insulation resistance shall be measured as follows:
50 - 100V at 25°C 25,000 MEG/MFD, need not exceed 50,000 Megohms.
200V + at 25°C 50,000 MEG/MFD, need not exceed 100,000 Megohms.
Ref: MIL-STD-202E, Method 302.
4. Dielectric Strength: Capacitors shall withstand specified DC test potential for 1 minute through a
limiting resistance of 1 Ohm/Volt.
Terminal to Terminal -- 150% of DC Rating.
Terminal to Case -- 200% of DC Rating.
Ref: MIL-STD-202E, Method 301.
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
5. Dielectric Absorption: Shall not exceed 0.2% when tested to MIL-C-19978D.
Ref: MIL-C-19978D, Paragraph 3.22.
ENVIRONMENTAL TESTS:
1. Vibration: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method 204.
2. Moisture Resistance: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method
103B, condition B, with 500 VDC or rated voltage applied, whichever is less.
3. Life Test: Will withstand 140% of the Rated DC Voltage at 125°C for 250 hours with not more
than 1 failure in 12 units.
4. Lead Pull Test: The leads on these capacitors shall withstand a steadily applied axial pull of 5 lbs.
for one minute.
CUSTOM DESIGN
Available on short notice -- special shapes, values, characteristics, combination sections and networks.
Non-metallic cases or fabricated steel and brass with glass-to-metal seals. Engineering service is expert
and prompt.
APPLICATIONS
Metallized polycarbonate capacitors, in Style "A2" oval wrap and fill cases offer the user the best possible
volume density for cord wood type assemblies. These units have consistently met the environmental
requirements of MIL-C-55514A and moisture resistance per MIL-STD-202E, Method 103B.
Metallized polycarbonate capacitors combine the reliability of self-healing action with high dielectric
strength and insulation resistance of polycarbonate film.
Metallized polycarbonate capacitors are designed primarily for DC application -- blocking, coupling,
decoupling, bypass, DC line filtering, where RF and audio components are small in comparison to DC
rating. However, they have been used successfully in such AC power applications as power factor
correction and AC line filtering.
Metallized polycarbonate capacitors operate at all temperatures from -55°C to + 125°C and are intended
for utilization in sealed or encapsulated assemblies.
APPLICATION GUIDE: [AC VOLTAGE RATING, -55˚C to +125˚C. AMBIENT]
VOLTAGE
EQUIVALENT VAC [RMS] RATING AT
RATING
60 Hz
400 Hz
50V
N/A
N/A
100V
63 VAC
45 VAC
200V
160 VAC
95 VAC
400V
200 VAC
170 VAC
600V
240 VAC
190 VAC
(AC voltage assumed to be pure sine wave)
1000 Hz
N/A
40 VAC
80 VAC
140 VAC
160 VAC

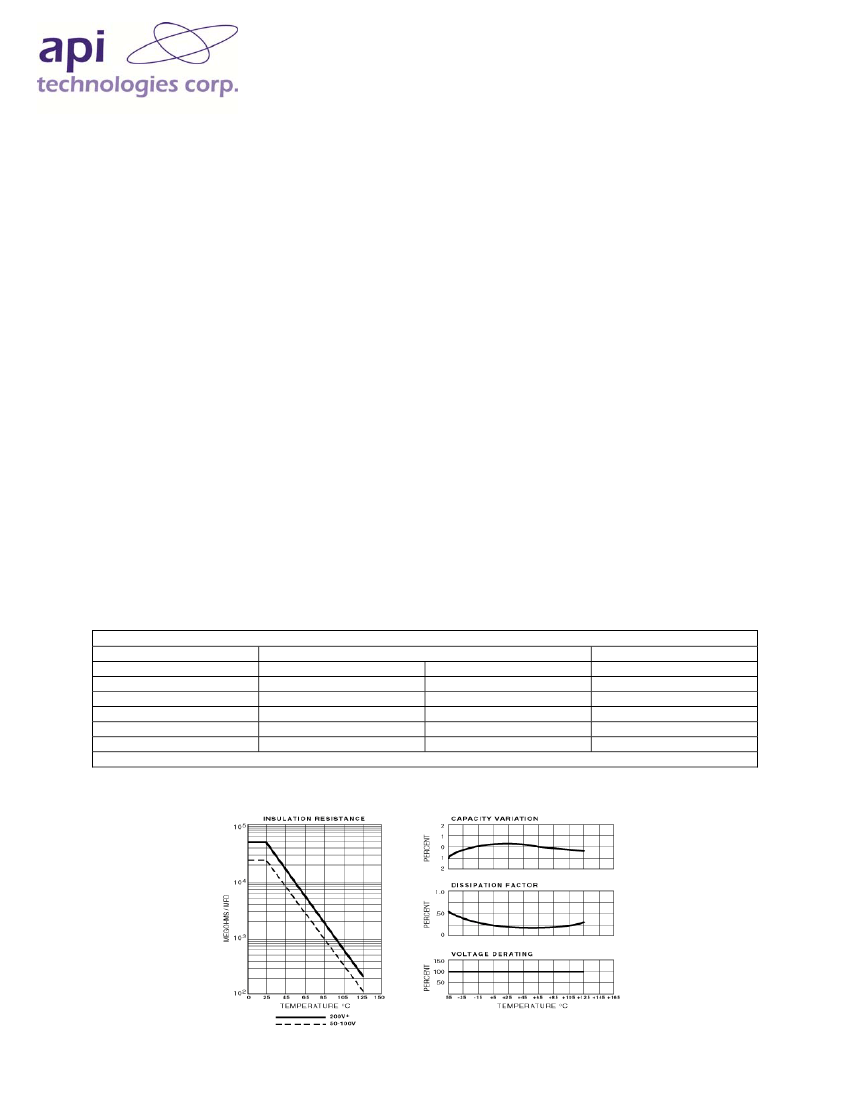

TYPICAL TEMPERATURE CHARACTERISTICS
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
RA2, DA2, BA2 SERIES – SPECIFICATIONS
PART NUMBER KEY
EXAMPLE
Z
Code
Metallized
Polycarbonate
L
Case Style
Wrap & Fill
1
Shape
Oval-Rect.
A
Voltage
A-50
B-100
C-200
E-400
G-600
104
Capacity
In Picofarads the first
2 digits indicate
significant figures, the
3
rd
indicates number
of zeroes to follow
K
Tolerance
± 20% = Bank
± 10% = K
± 5% = J
± 3% = H
± 2% = G
± 1% = F

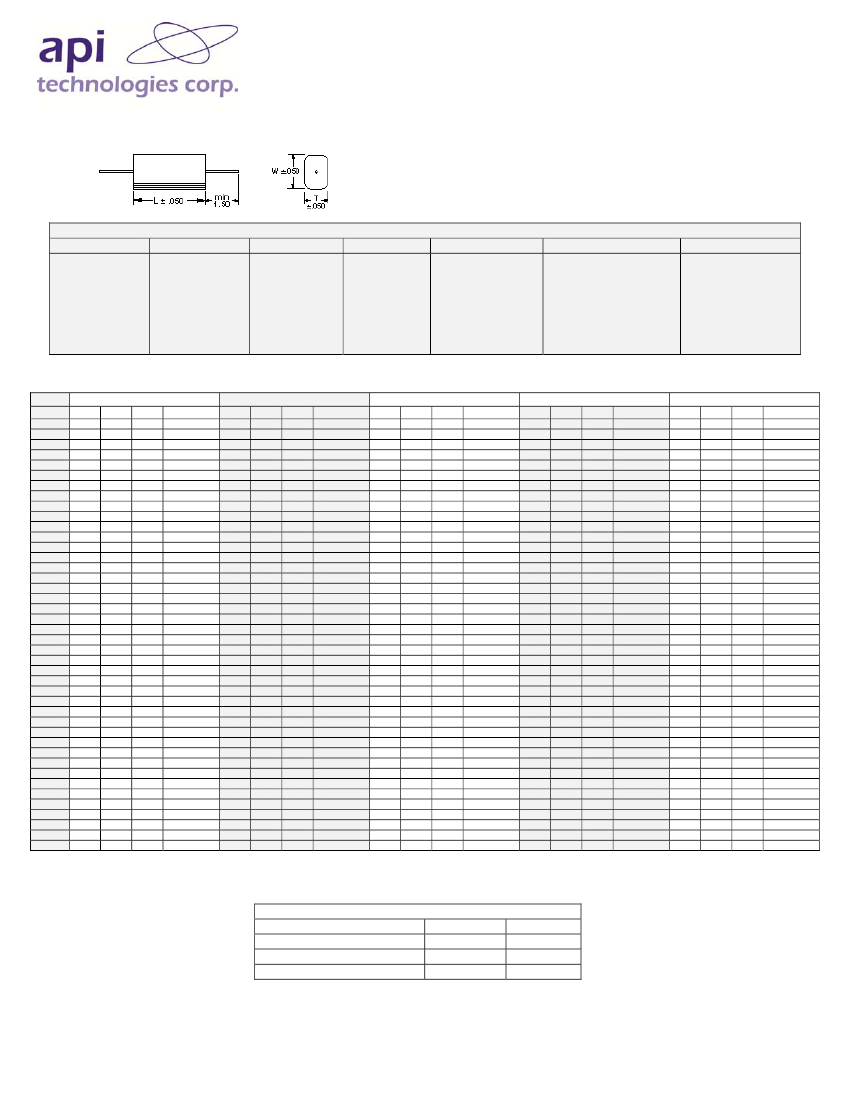

DIMENSIONS:
