DV2B103H Overview

Film Capacitor,

DV2B103H Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	,
Reach Compliance Code	unknow
Capacitor type	FILM CAPACITOR
Number of terminals	2

Preview

Download Datasheet

View All

METALLIZED POLYCARBONATE FILM CAPACITORS

PLASTIC CASE – AXIAL LEADS

METALLIZED POLYCARBONATE



SELF-HEALING, HIGH RELIABILITY

HIGH STABILITY

LOW CAPACITANCE CHANGE OVER WIDE

TEMPERATURE RANGE

HIGH VOLUMETRIC EFFICIENCY

PRECISION CIRCUITS REQUIRING LOW LOSSES,

LIGHT DUTY, LOW FREQUENCY ENERGY DISCHARGE, COUPLING AND DECOUPLING

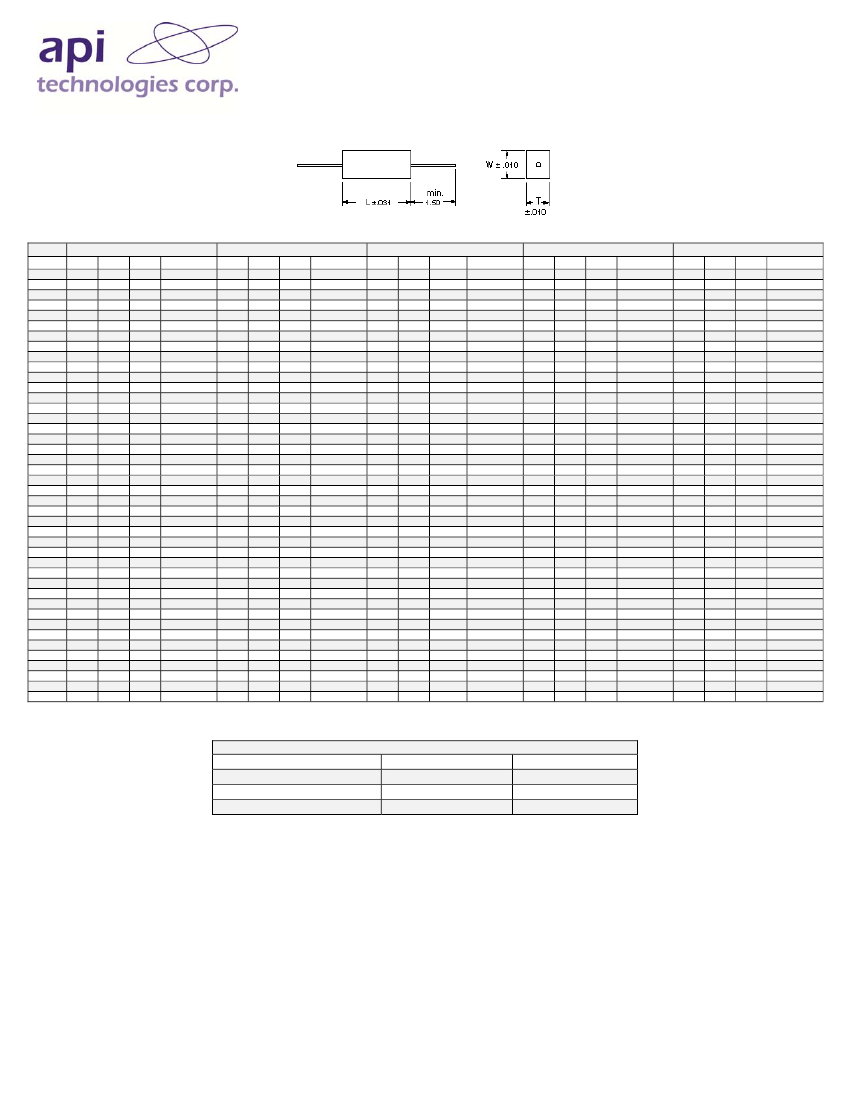

STYLE “V2”



PLASTIC CASE, RECTANGULAR

AXIAL LEADS

RUGGED, IMPROVED MOISTURE RESISTANCE, DESIGNED TO MEET VIBRATION AND

THERMAL SHOCK SPECIFICATIONS

Metallized polycarbonate capacitors are also available in rectangular, radial lead “Style P”.. Hermetically

sealed types are available. Please contact factory or representative.

SPECIFICATIONS

CONSTRUCTION: Metalized Polycarbonate capacitors are available only in extended foil (non-inductive)

construction.

PACKAGING: Rectangular plastic case, epoxy encapsulated, axial copperweld leads.

LEADS: Copperweld (steel, coated with 30% copper by weight and tinplated with 60-40 Sn-Pb) is

standard and may be soldered or welded in circuit assembly.

TEMPERATURE RANGE: May be operated at rated DC voltage from -55°C to 125°C without derating

voltage.

ELECTRICAL (NON-DESTRUCTIVE) TEST:

1. Capacitance shall be measured at or referred to 1000 ± 20 Hz at 25 ± 5°C for capacitance values

up to and including 1.0 ud. Capacitance values greater than 1.0 mfd., shall be measured at 60 ± 6

Hz.

Ref: MIL-STD-202E5 Method 305.

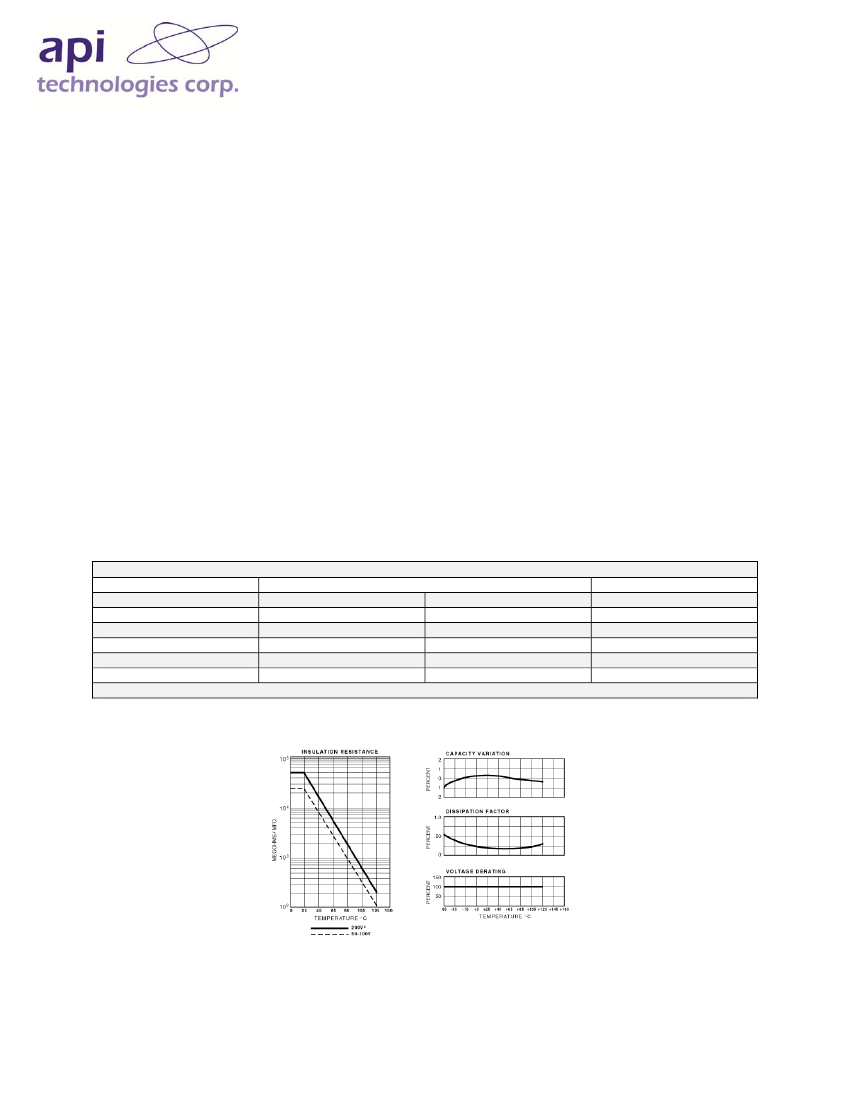

2. Dissipation factor shall be measured as described for capacitance and shall not exceed 0.3% to 1

MFD, 0.5% greater than 1 MFD. Typical values throughout the temperature range, are given on

curves.

3. Insulation resistance shall be measured as follows:

50-100V at 25°C 25,000 MEG/MFD, need not exceed 50,000 Megohms.

200V + at 25°C 50,000 MEG/MFD, need not exceed 100,000 Megohms.

Ref: MIL-STD-202E, Method 302.

4. Dielectric Strength: Capacitors shall withstand specified DC test potential for 1 minute through a

limiting resistance of 1 Ohm/Volt.

Terminal to Terminal - 150% of DC Rating.

Terminal to Case - 200% of DC Rating.

Ref: MIL-STD-202E, Method 301.

5. Dielectric Absorption: Shall not exceed 0.2% when tested to MIL-C-19978D.

Ref: MIL-C-19978D, Paragraph 3.22.

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com
