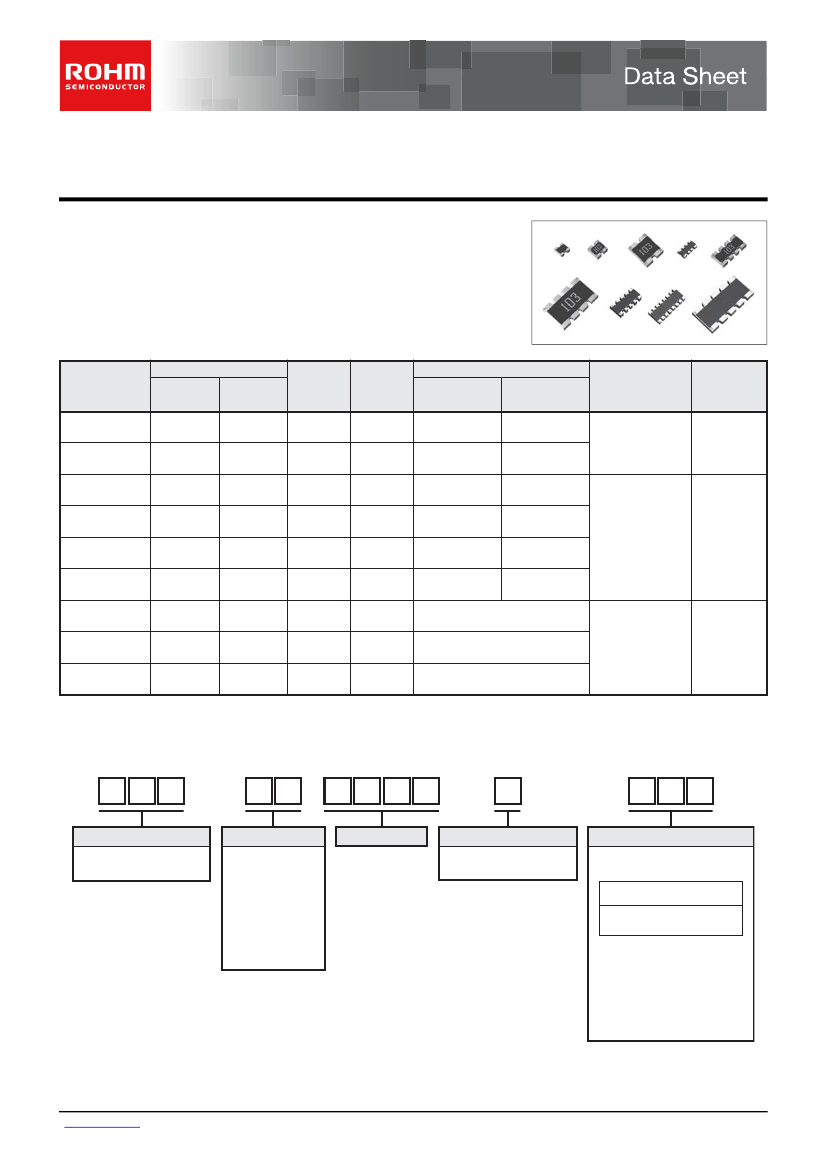

Chip Resistor Networks
MNR Series < General Purpose >
Features
1) Can be mounted even more densely than chip resistors.
2) Mounting cost can be reduced by less frequency of mounting times.
3) Convex electrodes secures visual inspection of fillets after soldering.
4) ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.
5) "Automotive" product is AEC-Q200 compliant.
Size
Part No.
(mm)
1005
×
2
1005
×
4
1608
×
2
1608
×
4
1608
×
5
1605
×
8
3216
×
2
3216
×
4
3216
×
5
(inch)
0402
×
2
0402
×
4
0603
×
2
0603
×
4
0603
×
5
0602
×
8
1206
×
2
1206
×
4
1206
×
5
No. of
terminals
4
8
4
8
10
16
4
8
10
No. of
elements
2
4
2
4
8
8
2
4
8
Type Code
GENERAL
PURPOSE
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
J0AB
J5AB
J5R
Embossed tape
(4mm Pitch)
4,000
AUTOMOTIVE
∗Corresponds
to
AEC−Q200
Packing
Specification
Quantity / Reel
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
M0AP
M0AP
E0AP
E0AP
E0RP
E0AP
Paper tape
(2mm Pitch)
10,000
Paper tape
(4mm Pitch)
5,000
∗Please
contact us for status of AEC-Q200 on "General purpose" products.
Part Number Description
M N R
Part No.
0 2
Size
(mm [inch])
02 (1005
[0402]
×
2)
04 (1005
[0402]
×
4)
12 (1608
[0603]
×
2)
14 (1608
[0603]
×
4)
15 (1608
[0603]
×
5)
18 (1605
[0602]
×
8)
32 (3216
[1206]
×
2)
34 (3216
[1206]
×
4)
35 (3216
[1206]
×
5)
M 0 A P
Type Code
J
Resistance Tolerance
F (
±1%
)
J (
±5%
)
(Including jumper type)
1 0 5
Nominal Resistance
Resistance code, 3 or 4 digits.
000 denotes jumper type.
Resistance
tolerance
F
J
:
:
Resistance
code
4 digits
3 digits
MNR
(Chip Resistor Networks)
Ex.)
1Ω = 1R0
9.1
Ω
= 9R1
10
Ω
= 10R0
100
1M
Ω
= 1004
105
(
±5%
)
(
±5%
)
(
±1%
)
(
±5%
)
(
±1%
)
(
±5%
)
www.rohm.com
c
○
2012 ROHM Co., Ltd. All rights reserved.
1/6
2012.11 - Rev.B
MNR series < General Purpose >
Products List
Part No.
Type Code
Rated Power
(70°C)
(W)
Limiting Element
Voltage
(V)
Maximum
Overload
Voltage
(V)
−
Temperature Resistance
Coefficient Tolerance
(ppm /
°C)
±200
Data Sheet
Resistance Range
Series
(%)
Operating
Temperature
Range
(°C)
MNR02
MRAP
0.063 / Element
25
J(±5%)
10Ω to 1MΩ
E24
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
+500/−300
1Ω to 9.1Ω
J(±5%)
±200
10Ω to 910k
−55
to
+155
E24
±200
F(±1%)
10Ω to 1MΩ
E24
MNR04
MRAP
0.063 / Element
25
50
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
±200
J(±5%)
10Ω to 1MΩ
MNR12
ERAP
0.063 / Element
50
−
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
±500
2.2Ω to 6.8Ω
J(±5%)
10Ω to 1MΩ
F(±1%)
10Ω to 1MΩ
E6
E24
MNR14
ERAP
0.063 / Element
50
−
±200
±200
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
MNR15
ERRP
0.031 / Element
12.5
−
±200
J(±5%)
56Ω to 100kΩ
E24
MNR18
ERAP
0.063 / Element
25
−
±250
J(±5%)
10Ω to 1MΩ
E24
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
±200
MNR32
J0AB
0.125 / Element
200
400
J(±5%)
10Ω to 1MΩ
E24
−55
to
+125
Jumper type : Rmax = 50m
Ω
/ Imax. = 2A (Element)
±200
J(±5%)
10Ω to 1MΩ
MNR34
J5AB
0.125 / Element
200
400
E24
Jumper type : Rmax = 50m
Ω
/ Imax. = 2A (Element)
MNR35
J5R
0.063 / Element
50
100
±200
J(±5%)
56Ω to 100kΩ
E12
∗Design
and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product
before using or ordering it.
Circuit Construction
MNR02 / 12 / 32
MNR04 / 14 / 34
MNR15 / 35
R1
R1
R2
R1
R2
R3
R4
R5
R6
R7
R8
R2
R3
R4
MNR18
R1
R2
R3
R4
R5
R6
R7
R8
R1=R2
R1=R2=R3=R4
R1=R2=R3=R4=R5=R6=R7=R8 R1=R2=R3=R4=R5=R6=R7=R8
www.rohm.com
c
○
2012 ROHM Co., Ltd. All rights reserved.
2/6
2012.11 - Rev.B
MNR series < General Purpose >

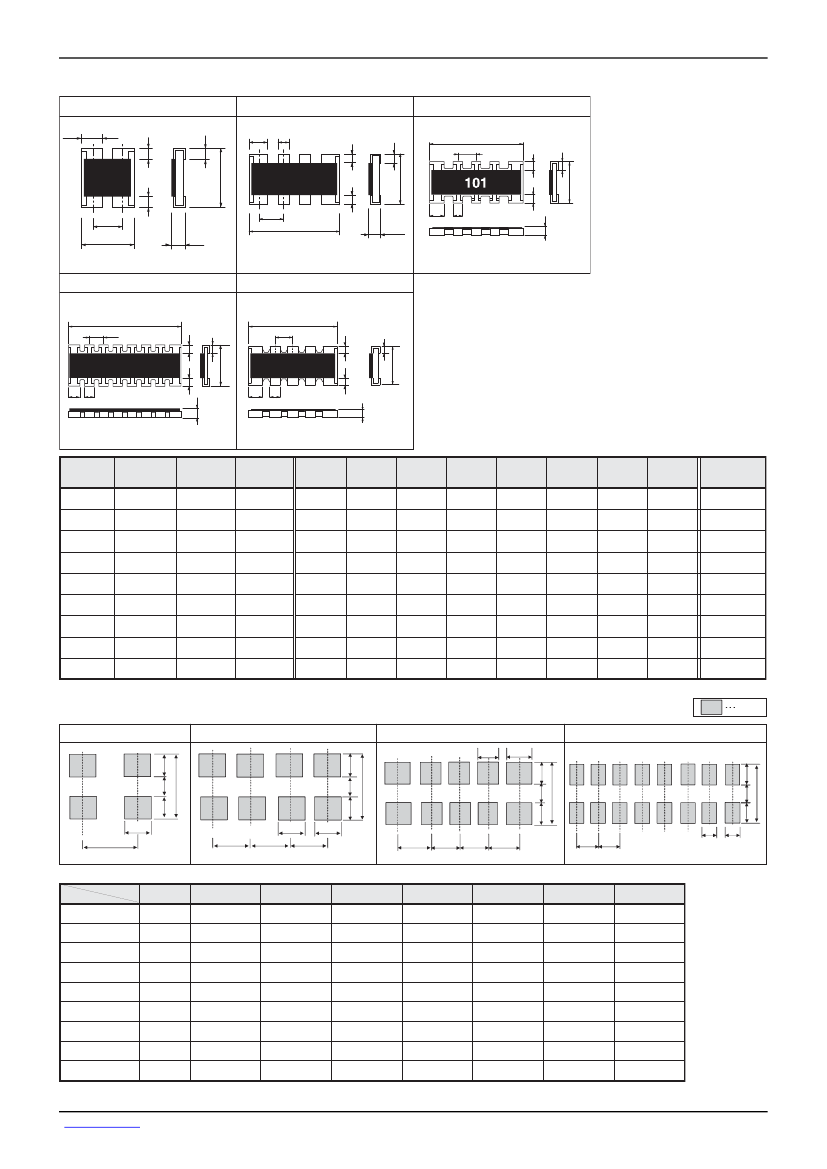

Chip Resistor Dimensions and Markings
MNR02 / 12 / 32
b2
c
a
a
W
a
p
t
L
p
L
b2
Data Sheet
MNR04 / 14 / 34
b1
c
p
L
MNR15
c
a
W
a
103
103
a
W
t
b2
b1
t
MNR18
MNR35
L
p
a
c
p
L
a
W
a
c
W
a
b2
t
b1
t
102
b2 b1
R103
<Marking method>
There are three or four digits used for the calculation
number according to IEC code and “R”is used for the
decimal point.
MNR35 is
R
+ three digits used for the calculation number
according to IEC code.
(Unit : mm)
Part No.
Type Code
(mm)
(inch)
L
W
t
a
b1
b2
c
p
∗
Including jumper type
Marking
existence
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
J0AB
J5AB
J5R
1005
×
2
1005
×
4
1608
×
2
1608
×
4
1608
×
5
1605
×
8
3216
×
2
3216
×
4
3216
×
5
0402
×
2
0402
×
4
0603
×
2
0603
×
4
0603
×
5
0602
×
8
1206
×
2
1206
×
4
1206
×
5
1.0±0.1
2.0±0.1
1.6±0.15
3.2±0.2
3.2±0.2
4.0±0.2
2.6±0.2
5.2±0.4
6.4±0.4
1.0±0.1
1.0±0.1
1.6±0.15
1.6±0.15
1.6±0.15
1.6±0.1
3.1±0.2
3.1±0.2
3.1±0.2
0.3±0.1
0.4±0.1
0.45±0.1
0.5±0.1
0.55±0.1
0.4±0.1
0.55±0.1
0.55±0.1
0.55±0.1
0.15±0.1
0.2±0.1
0.3±0.2
0.3±0.2
−
0.33±0.1
−
0.25±0.1
0.25±0.2
0.3±0.2
0.3±0.2
0.3±0.15
0.3±0.2
0.5Max
0.5Max
0.5Max
0.67
0.5
0.8
0.8
0.64
0.5
1.27
1.27
1.27
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
0.3±0.1
−
0.6±0.15
−
−
−
0.5±0.15
0.3±0.15 0.32±0.15
0.3±0.2
0.5±0.3
0.5±0.3
0.5±0.3
0.25±0.1
−
1.0±0.2
1.0±0.2
1.0±0.2
0.8±0.2
0.8±0.2
Land pattern Example
MNR02 / 12 / 32
C
A D
C
B
P1
P2
P1
E
P2
B
P2
P1
P1
P2
P1
P1
Land
MNR04 / 14 / 34
C
MNR15 / 35
E
B
C
A D
C
A D
C
MNR18
C
A D
C
B
B
(Unit : mm)
Part No.
Dimensions
Type Code
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
J0AB
J5AB
J5R
A
0.5
0.5
1.0
1.0
1.0
1.0
2.1
2.1
2.1
B
0.35 to 0.4
0.4
0.4 to 0.6
0.4 to 0.6
0.48
0.3
0.8 to 1.0
0.8 to 1.0
0.8 to 1.0
C
0.5
0.5
0.7 to 0.8
0.7 to 0.8
0.7 to 0.8
0.7 to 0.8
0.8 to 1.0
0.8 to 1.0
0.8 to 1.0
D
1.5
1.5
2.4 to 2.6
2.4 to 2.6
2.4 to 2.6
2.4 to 2.6
3.7 to 4.1
3.7 to 4.1
3.7 to 4.1
E
−
0.3
−
0.4
0.32
−
−
0.7 to 0.8
0.7 to 0.8
P1
0.65 to 0.7
0.5
0.8 to 1.0
0.8
0.64
0.5
1.27 to 1.6
1.27 to 1.35
1.27 to 1.3
P2
−
0.5 to 0.55
−
0.8 to 0.9
0.72
−
−
1.27 to 1.45
1.27 to 1.4
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MNR32
MNR34
MNR35
www.rohm.com
c
○
2012 ROHM Co., Ltd. All rights reserved.
3/6
2012.11 - Rev.B
MNR series < General Purpose >
Derating Curve
Data Sheet
When the ambient temperature exceeds 70°C, power dissipation must be adjusted according to the derating curves below.
MNR02 / 04 / 12 / 14
100
PERCENT RATED POWER (%)
PERCENT RATED POWER (%)
MNR15 / 18 / 32 / 34 / 35
100
80
60
40
20
0
80
60
40
20
0
−55
0
70
100
155
−55
0
70
100
125
AMBIENT TEMPERATURE (
°
C)
AMBIENT TEMPERATURE (°C)
Characteristics
Test Items
Resistance
Variation of resistance
with temperature
Guaranteed Value
Resistor Type
Jumper Type
See "Products List"
20°C
Test Conditions
See "Products List"
Measurement :
+20
/
−55
/
+20
/
+125°C
Rated voltage (current)
×2.5,
2s.
Maximum overload voltage
Rosin·Ethanol : 25% (weight)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s
Overload
±
(2.0%+0.1Ω)
Max. 50mΩ
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.05Ω)
±
(1.0%+0.1Ω)※MNR35
Max. 50mΩ
Resistance to
soldering heat
No remarkable abnormality on the appearance.
±
(1.0%+0.05Ω)
±
(1.0%+0.1Ω)※MNR35
Soldering condition : 260±5°C
Duration of immersion : 10±1s
Rapid change of
temperature
Max. 50mΩ
Test temp. :
−55°C
to
+125°C
5cycle
Damp heat, steady state
±
(3.0%+0.1Ω)
Max. 100mΩ
40°C, 93%RH (Relative Humidity)
Test time : 1,000h to 1,048h
70°C
Rated voltage (current)
1.5h : ON
−
0.5h : OFF
Test time : 1,000h to 1,048h
125°C (MNR15 / 18 / 32 / 34 / 35)
155°C (MNR02 / 04 / 12 / 14)
Test time : 1,000h to 1,048h
23±5°C, Immersion cleaning, 5±0.5min
Solvent : 2−propanol
Endurance at 70°C
±
(3.0%+0.1Ω)
Max. 100mΩ
Endurance
±
(3.0%+0.1Ω)
±
(1.0%+0.05Ω)
±
(1.0%+0.1Ω)※MNR35
±
(1.0%+0.05Ω)
Max. 100mΩ
Resistance to solvent
Max. 50mΩ
Max. 50mΩ
Bend strength of
the end face plating
Without mechanical damage such as breaks.
−
Compliance Standard(s) : IEC60115−8
JISC 5201−8
Chip weight (typical value)
Parameter
Weight
Unit
mg/pc
MNR02
MRAP
1.05
MNR04
MRAP
2.73
MNR12
ERAP
3.75
MNR14
ERAP
8.20
MNR15
ERRP
8.04
MNR18
ERAP
8.74
MNR32
J0AB
15.9
MNR34
J5AB
31.2
MNR35
J5R
38.4
www.rohm.com
c
○
2012 ROHM Co., Ltd. All rights reserved.
4/6
2012.11 - Rev.B
