10YXM330MEFCFA8X11.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size146KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

10YXM330MEFCFA8X11.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

10YXM330MEFCFA8X11.5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	330 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	8 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.033 mA
length	11.5 mm
Manufacturer's serial number	YXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	231 mA
series	YXM
surface mount	NO
Delta tangent	0.45
Terminal pitch	5 mm
Terminal shape	WIRE

10YXM330MEFCFA8X11.5 Preview

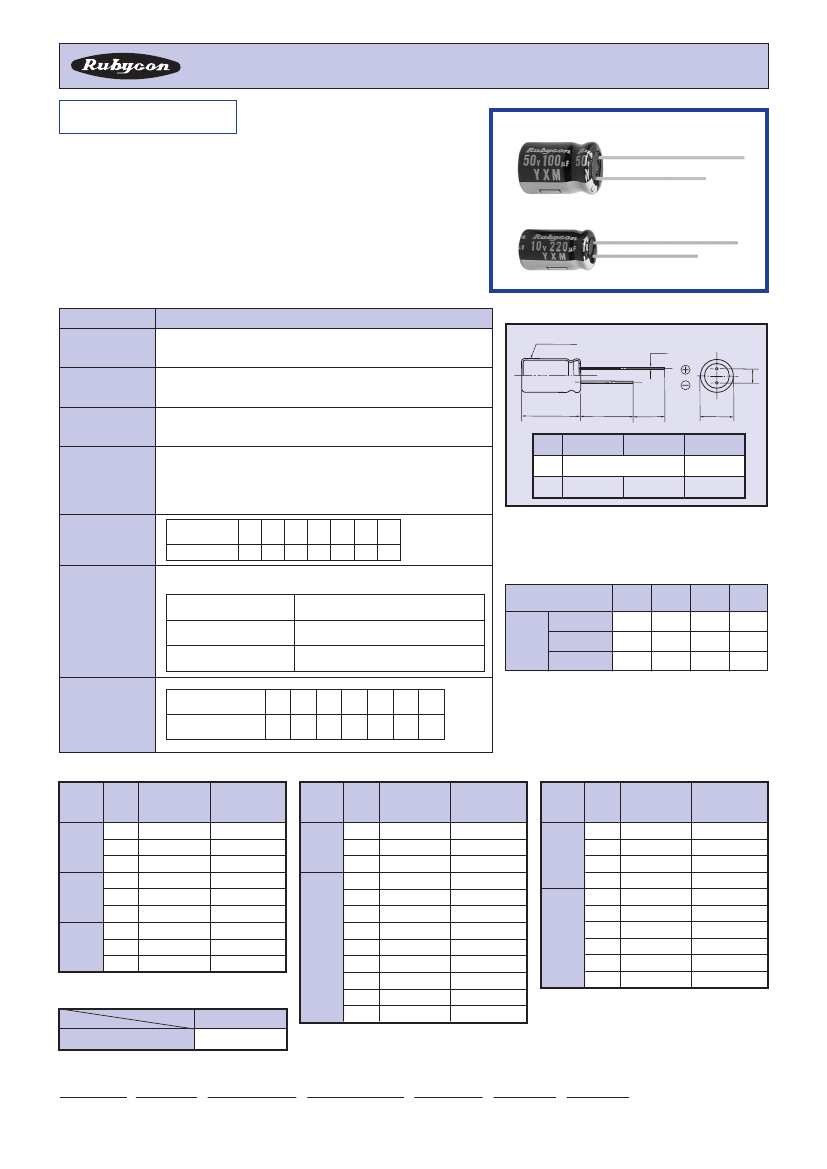

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXM

SERIES

Load Life : 105℃ 10000 hours, Miniaturized.

◆FEATURES

・

Miniaturized Long Life.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

◆DIMENSIONS

SLEEVE(PET)

（mm）

±0.5

φD＋0.5MAX

φd

−25∼＋105℃

10∼100V.DC

Rated Voltage Range

L＋1.5MAX

15MIN

4MIN

Capacitance Tolerance

±20％

（20℃，

120Hz）

φD

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes)

5

0.5

2.0

6.3

8

0.6

φd

F

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

120Hz）

10 16 25 35 50 63 100

（20℃，

(V)

tanδ

0.45 0.35 0.30 0.22 0.19 0.17 0.15

After applying rated voltage with rated ripple current for 10000 ½ ½½ at 105℃,

½½

the capacitors shall meet the following requirements.

2.5

3.5

(

tanδ)

Dissipation Factor(MAX)

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 300％ of the speciﬁed value.

Not more than the speciﬁed value.

（Hz）

1∼10μF

22∼33μF

47∼330μF

120

0.42

0.55

0.70

1k

0.60

0.75

0.85

10k

0.80

0.90

0.95

100k≦

1.00

Coeﬃcient

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

10

16

6

25

4

35

4

50

3

63 100

（120Hz）

3

Z

（−25℃）（20℃） 8

/Z

◆STANDARD SIZE

Size φD×L(mm), Ripple Current (mA r.m.s./105℃, 100kHz)

WV

(V.DC)

10

(1A)

16

(1C)

25

(1E)

Cap

(μF)

100

220

330

47

100

220

33

47

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

5×11

6.3×11

Rated Ripple

Current

130

210

330

130

210

330

130

210

WV

(V.DC)

35

(1V)

Cap

(μF)

33

47

100

1

2.2

3.3

4.7

10

22

33

47

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

130

210

330

25

35

70

80

90

135

190

270

WV

(V.DC)

63

(1J)

Cap

(μF)

10

22

33

47

1

2.2

3.3

4.7

10

22

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

80

170

240

40

50

60

70

150

230

50

(1H)

100

(2A)

◆OPTION

Code

PET Sleeve

Ｅ

ＦC

◆PART NUMBER

□□□

Rated Voltage

YXM

Series

□□□□□

Capacitance

M

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

F

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
