35YXM47MEFCCA6.3X11: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size146KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35YXM47MEFCCA6.3X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

35YXM47MEFCCA6.3X11 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	6.3 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.01645 mA
length	11 mm
Manufacturer's serial number	YXM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	147 mA
series	YXM
surface mount	NO
Delta tangent	0.22
Terminal surface	Tin (Sn)
Terminal pitch	2.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

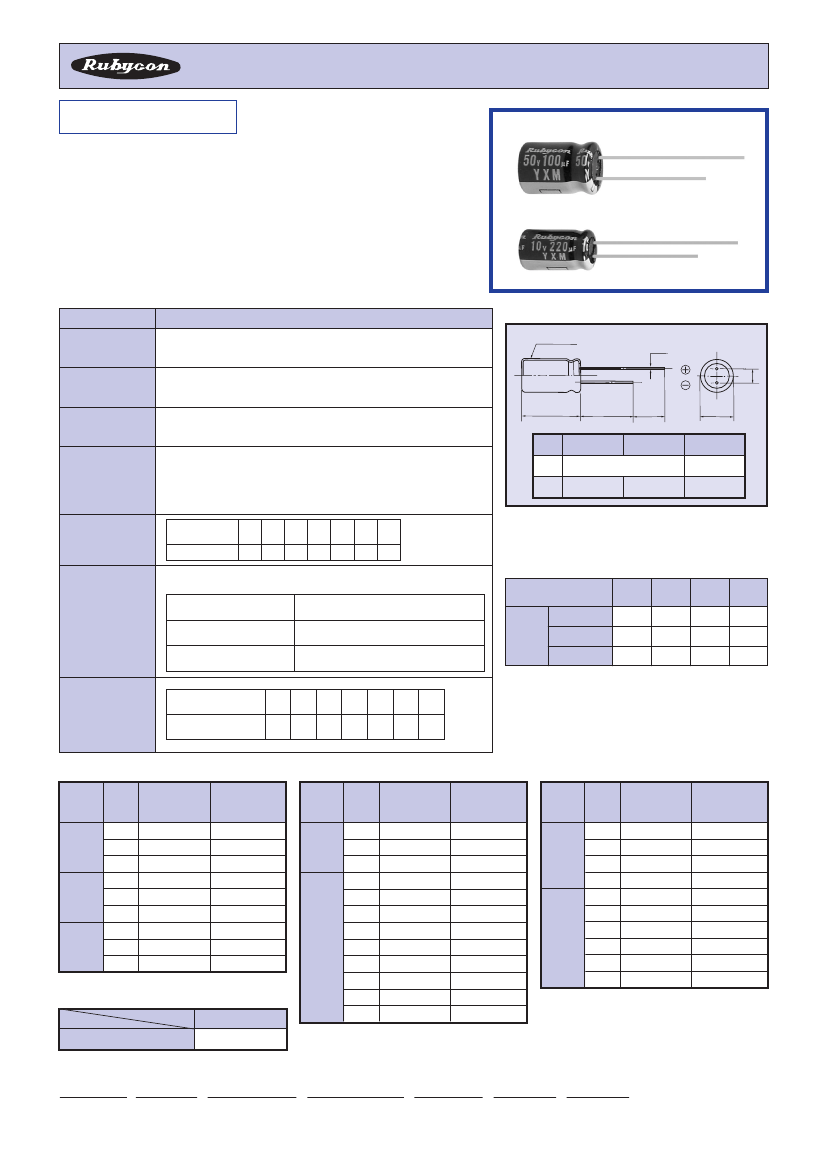

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

YXM

SERIES

Load Life : 105℃ 10000 hours, Miniaturized.

◆FEATURES

・

Miniaturized Long Life.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

◆DIMENSIONS

SLEEVE(PET)

（mm）

±0.5

φD＋0.5MAX

φd

−25∼＋105℃

10∼100V.DC

Rated Voltage Range

L＋1.5MAX

15MIN

4MIN

Capacitance Tolerance

±20％

（20℃，

120Hz）

φD

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes)

5

0.5

2.0

6.3

8

0.6

φd

F

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

120Hz）

10 16 25 35 50 63 100

（20℃，

(V)

tanδ

0.45 0.35 0.30 0.22 0.19 0.17 0.15

After applying rated voltage with rated ripple current for 10000 ½ ½½ at 105℃,

½½

the capacitors shall meet the following requirements.

2.5

3.5

Dissipation Factor(MAX)

(tanδ)

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

120

0.42

0.55

0.70

1k

0.60

0.75

0.85

10k

0.80

0.90

0.95

100k≦

1.00

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 300％ of the speciﬁed value.

Not more than the speciﬁed value.

Coeﬃcient

1∼10μF

22∼33μF

47∼330μF

Low Temperature

Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

10

16

6

25

4

35

4

50

3

63 100

（120Hz）

3

Z

（−25℃）（20℃） 8

/Z

◆STANDARD SIZE

Size φD×L(mm), Ripple Current (mA r.m.s./105℃, 100kHz)

V.DC

10

(1A)

16

(1C)

25

(1E)

Cap

(μF)

100

220

330

47

100

220

33

47

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

5×11

6.3×11

Rated Ripple

Current

130

210

330

130

210

330

130

210

V.DC

35

(1V)

Cap

(μF)

33

47

100

1

2.2

3.3

4.7

10

22

33

47

100

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

130

210

330

25

35

70

80

90

135

190

270

Cap

V.DC (μF)

63

(1J)

10

22

33

47

1

2.2

3.3

4.7

10

22

Size

5×11

6.3×11

8×11.5

5×11

6.3×11

8×11.5

Rated Ripple

Current

80

170

240

40

50

60

70

150

230

50

(1H)

100

(2A)

◆OPTION

Code

PET Sleeve

Ｅ

ＦC

◆PART NUMBER

□□□

Rated Voltage

YXM

Series

□□□□□

Capacitance

M

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

F
