50RKV10M6.3X5.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 50RKV10M6.3X5.5

50RKV10M6.3X5.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2626; CategoryPassive components capacitor; File Size41KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

50RKV10M6.3X5.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2626

50RKV10M6.3X5.5 Parametric

Parameter Name	Attribute value
Maker	rubycon
package instruction	, 2626
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.005 mA
Manufacturer's serial number	RKV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	28 mA
size code	2626
surface mount	YES
Delta tangent	0.14
Terminal shape	FLAT

Preview

Download Datasheet

View All

FINAL ACCEPTED ORDER DATE [2004/09]

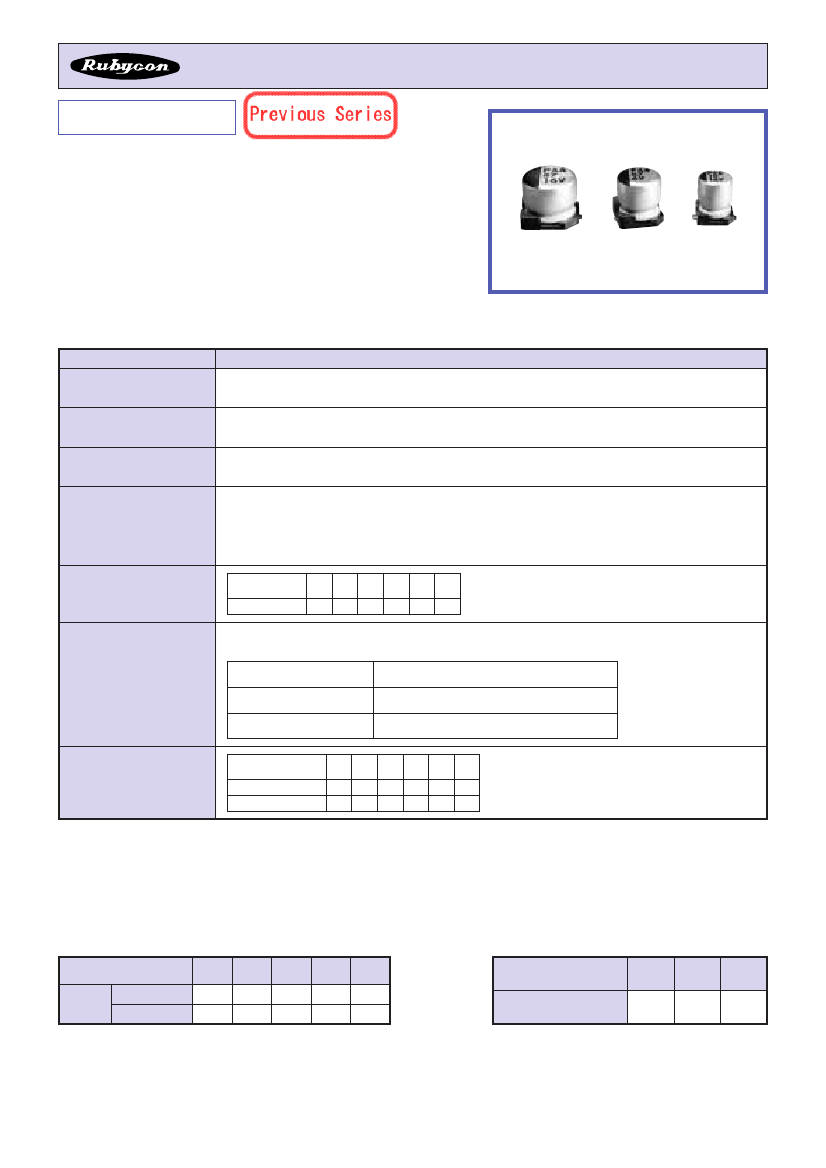

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

RKV

♦FEATURES

SERIES

105˚C Standard, 5.5mm MAX Height.

• Load Life : 105˚C 1000 hours.

• Reflow soldering is available.

• Available for high density mounting.

♦SPECIFICATIONS

Items

Operating Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-55~+105˚C

6.3~50V.DC

±20%(20˚C,

120Hz)

I=0.01CV

or 3µA whichever is greater. (After 2 minutes application of rated voltage)

Leakage Current(MAX)

I=Leakage

Current(µA)

C=Nominal Capacitance(µF)

(20˚C, 120Hz)

V=Rated Voltage(V)

Dissipation Factor(MAX)

Rated Voltage

6.3 10 16 25 35 50

(V)

tanδ

0.30 0.24 0.20 0.16 0.14 0.14

After applying rated voltage with max ripple current for 1000 hrs at 105˚C, the capacitors shall

meet the following requirements.

Load Life

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(-25˚C)/Z(20˚C)

Z(-40˚C)/Z(20˚C)

Within

±30%

of the initial value.

Not more than 300% of the specified value.

Not more than the specified value.

Low Temperature

Stability

Impedance Ratio(MAX)

6.3

(120Hz)

♦MULTIPLIER

FOR RIPPLE CURRENT

(1) Frequency coefficient

Frequency(Hz)

Coefficient

0.1~47µF

100µF

60(50) 120

0.8

1.0

500

1.20

1.10

1.30

1.15

10k<

1.50

1.20

Coefficient

1.0

1.7

2.1

(2) Temperature coefficient

Ambient Temperature

(˚C)

105

65>

1 Oct 1999
