6.3ZLG150M5X11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 6.3ZLG150M5X11

Preview

6.3ZLG150M5X11: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 150uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size55KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

6.3ZLG150M5X11 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 150uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

6.3ZLG150M5X11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	150 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.02835 mA
length	11 mm
Manufacturer's serial number	ZLG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	202.5 mA
series	ZLG
surface mount	NO
Delta tangent	0.22
Terminal surface	Tin (Sn)
Terminal pitch	2 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

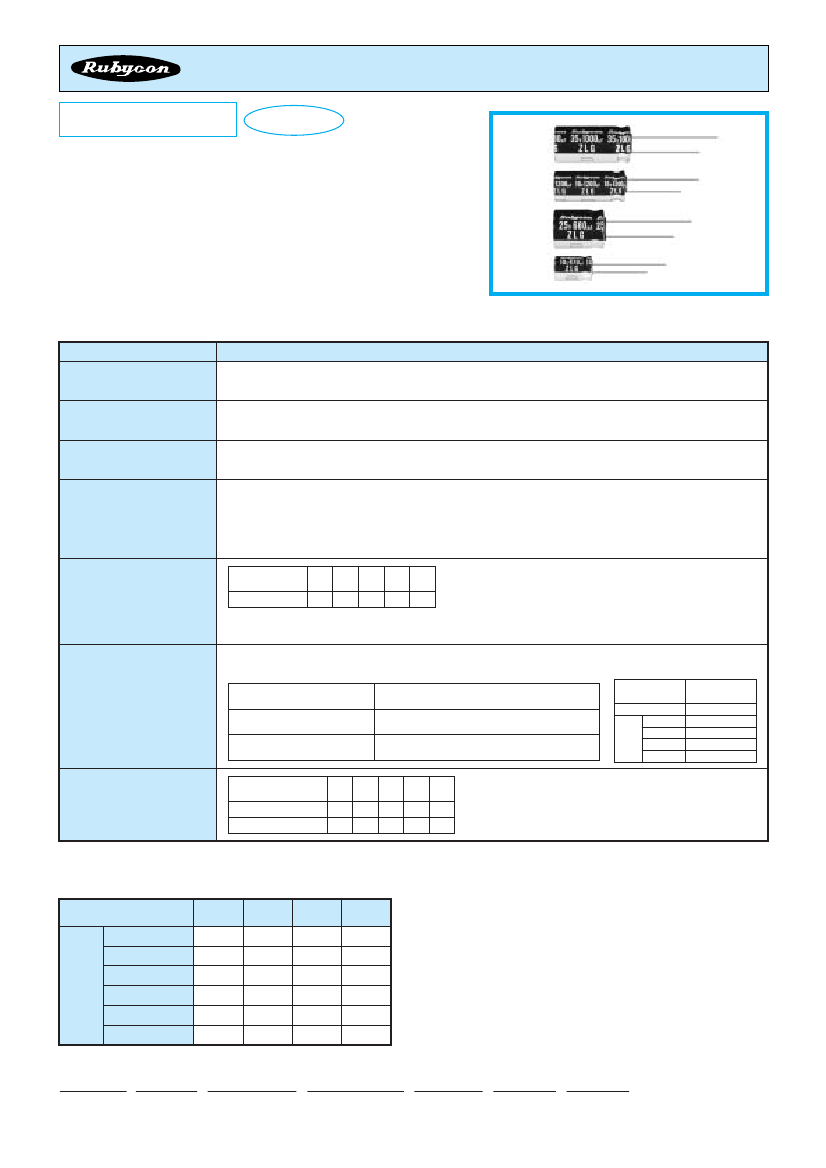

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

ZLG

SERIES

UPGRADE

Load Life: 105℃ 1000∼5000hours. Ultra Low impedance.

◆FEATURES

•

Extremely reduced impedance at high frequency range than ZL series.

•

Load Life : 105℃ 1000∼5000hours.

•

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼35V.DC

±20％（20℃，120Hz）

I＝0.03CV

or 3μA whichever is greater.

(After 2 minutes)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Rated Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

6.3 10 16 25 35

(V)

tanδ

0.22 0.19 0.16 0.14 0.12

（20℃，120Hz）

Dissipation Factor(MAX)

(tanδ)

When nominal capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.

Capacitance Change

Dissipation Factor

Leakage Current

Within ±25％ of the initial value.

Not more than 200％ of the specified value.

Not more than the specified value.

Case size

Ｌ＝7

φD≦6.3

φD＝ 8

L≧11

φD＝ 10

φ

D≧12.5

Life Time

1000

2000

3000

4000

5000

Endurance

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

(V)

Z

（−25℃）（20℃） 2

/Z

Z

（−40℃）（20℃） 12

/Z

10

2

12

16

2

10

25

2

8

35

2

6

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

Frequency

（Hz）

4.7∼10μF

22∼33μF

39∼270μF

330∼680μF

120

0.24

0.42

0.50

0.55

0.60

0.70

1k

0.53

0.70

0.73

0.77

0.80

0.85

10k

0.80

0.90

0.92

0.94

0.96

0.98

100k≦

1.00

Coefficient

820∼1800μF

2200∼3900μF

◆PART NUMBER

□□□

Rated Voltage

ZLG

Series

□□□□□

Rated Capacitance

□

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
