1N825A1 datasheet, PDF - EEWORLD Datasheet

1N825A1: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35; CategoryDiscrete semiconductor diode; File Size437KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

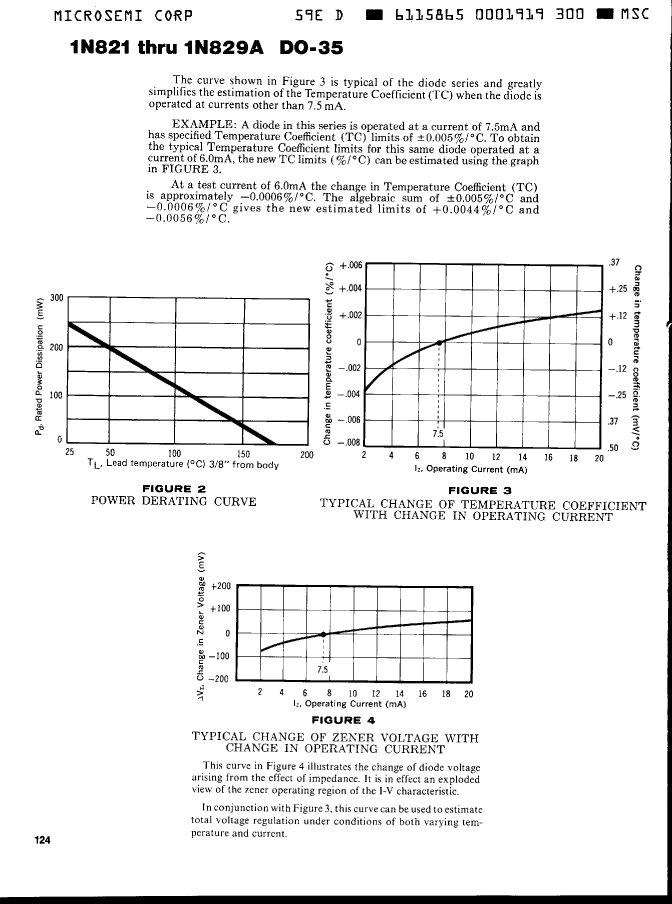

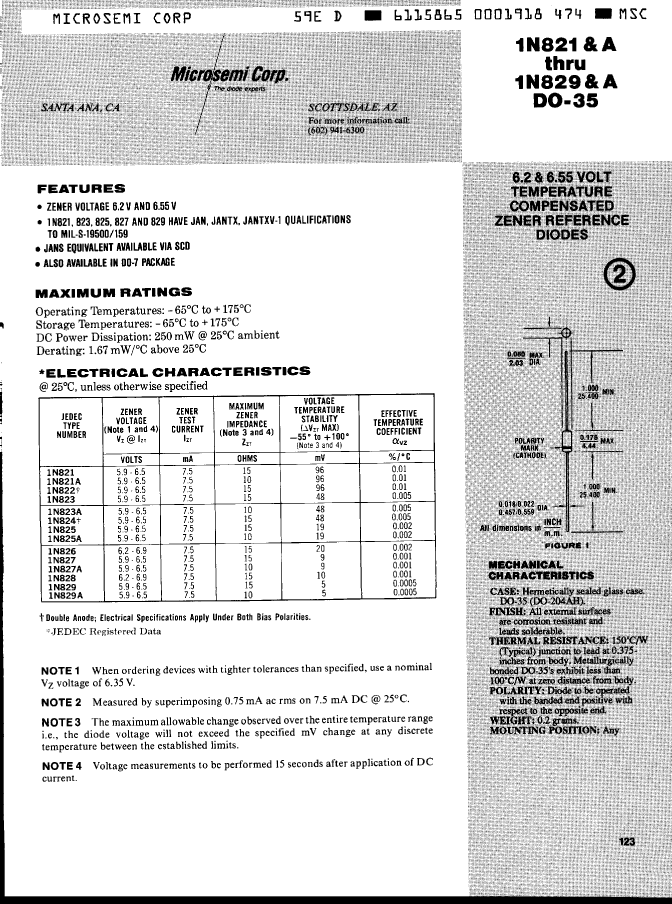

1N825A1 Overview

ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35

Parameter Name	Attribute value
Maker	Microsemi
Reach Compliance Code	unknow
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	10 Ω
Number of components	1
Maximum operating temperature	175 °C
Maximum power dissipation	0.25 W
Nominal reference voltage	6.2 V
surface mount	NO
Maximum voltage tolerance	5%
Working test current	7.5 mA
Base Number Matches	1

	1N825A1	1N823A1	1N821A1	1N827A1	1N829A1
Description	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-34	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35	ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,DO-35
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω
Number of components	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum power dissipation	0.25 W	0.25 W	0.25 W	0.25 W	0.25 W
Nominal reference voltage	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V
surface mount	NO	NO	NO	NO	NO
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA
Maker	Microsemi	-	Microsemi	Microsemi	Microsemi
