UPS-04-02-L-RA: DescriptionRectangular Power Connector, 4 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size398KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

UPS-04-02-L-RA Overview

Rectangular Power Connector, 4 Contact(s), Female, Solder Terminal, Socket, ROHS COMPLIANT

UPS-04-02-L-RA Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	POWER STRIP
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	UPS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	LIQUID CRYSTAL POLYMER
Termination type	SOLDER
Total number of contacts	4

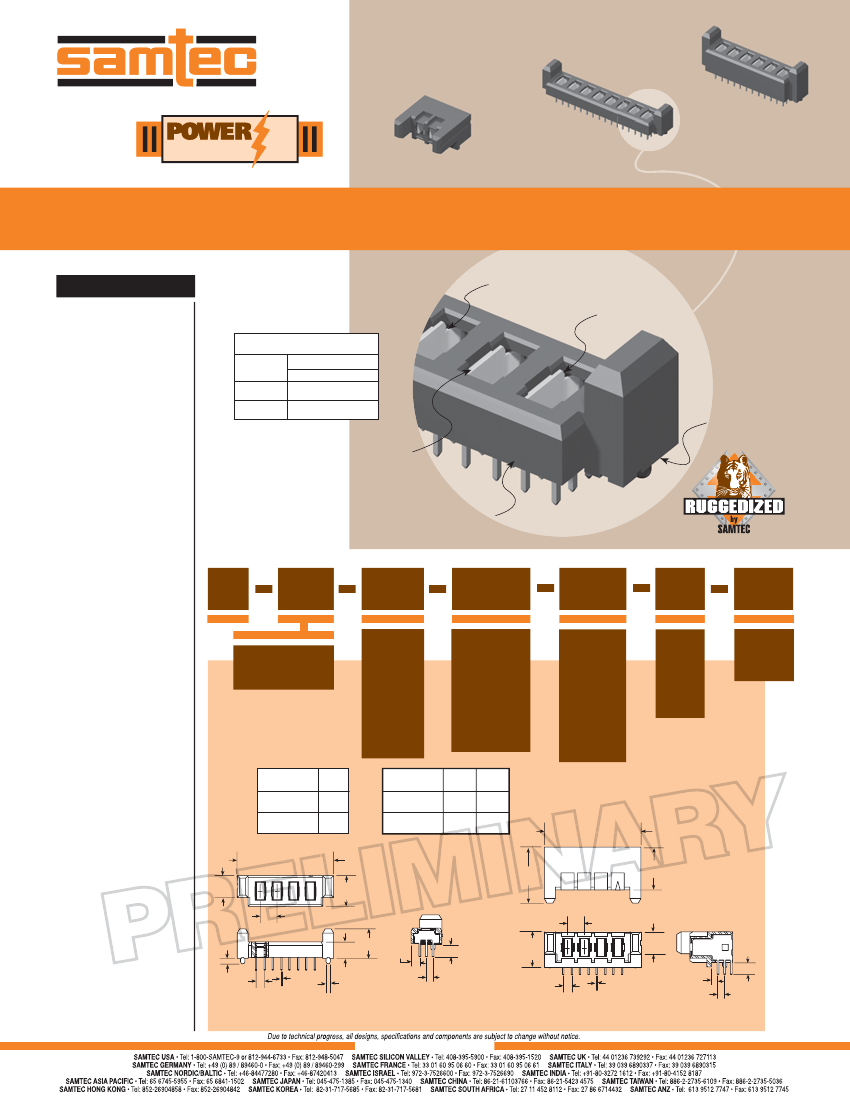

UPS-04-02-L-RA Preview

F-209-1

UPS–06–07.0–01–L–V–LC

UPS–02–01–L–RA–LC

TM

STRIP

10

UPS–08–04.0–01–L–V

POWERSTRIP/10 SOCKET

™

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?UPS

Insulator Material:

Black LCP

Contact Material:

BeCu

Plating:

Sn or Au over 50µ"

(1,27µm) Ni

Operating Temp Range:

-55°C to +105°C with Tin

-55°C to +125°C with Gold

Currrent Rating:

Testing Now!

Voltage Rating:

Testing Now!

RoHS Compliant:

Yes

UPS

SERIES

Mates with:

UPT

Dual leaf

blade contacts

Up to 8 Power

Pins

STACK HEIGHT

UPS

LEAD

STYLE

UPT LEAD STYLE

–03.0

(7,00) .276

(10,00) .394

–04.0

–07.0

Optional

Locking Clip

(3,81mm)

.150" pitch

Processing:

Max Processing Temp:

230°C for 60 seconds, or

260°C for 20 seconds 3x

Lead–Free Solderable:

Yes

Vertical or

Right Angle

UPS

POWER

PINS

LEAD

STYLE

(Leave blank

for –RA)

TAIL

LENGTH

PLATING

OPTION

TAIL

OTHER

OPTION

–02, –04,

–06, –08

–01

= Use with

(1,60mm) .062"

Thick PCB

–L

= 10µ"

(0,25µm)

Gold on

contact,

Matte Tin

on tail

–V

= Vertical

–LC

= Locking

Clip

–04.0

= (04,0mm)

.157"

–RA

= Right

Angle

–02

= Use with

(2,36mm) .093"

Thick PCB

–07.0

= (07,0mm)

.276"

TAIL

LENGTH

–T

= Matte Tin

A

(2,74)

.108

(3,50)

.138

LEAD

STYLE

B

(3,75)

.148

(6,75)

.266

266

C

(6,75)

.266

(9,75)

.384

–01

–02

–04.0

–07.0

N

No. of power pins x

f p er ns

(3,81) .150 + ( 6) .2

(6,76) .266

(9,74)

.384

No. of power pins x

wer

(3,81) .150 + (6,76)

.266

(6 76)

00)

(5,00)

7

.197

(3,81

(3,81)

.150

(1,25)

049

.049

(0,30)

.012

(7,00)

.276

(12,74)

.502

(3,81)

.150

B

(1,00)

.039

DIA

C

(2,00)

.0787

(1,50)

.059

A

(8,00)

.315

(2,00)

.0787

(0,30)

.012

(5,00)

.197

(1,54)

.061

A

(1,50)

.059

(2,00)

.0787

Note:

Some sizes, styles

and options are non-standard,

non-returnable.

–V

–RA

WWW.SAMTEC.COM
