S3LV308Q/TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> S3LV308Q/TD

S3LV308Q/TD: DescriptionLow Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52; Categorylogic logic; File Size304KB，10 Pages; ManufacturerApplied Micro Circuits (MACOM)

Download Datasheet Parametric Compare View All

S3LV308Q/TD Overview

Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52

S3LV308Q/TD Parametric

Parameter Name	Attribute value
Maker	Applied Micro Circuits (MACOM)
Parts packaging code	QFP
package instruction	QFP,
Contacts	52
Reach Compliance Code	unknow
series	S3LV
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	S-PQFP-G52
length	14 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Number of functions	1
Number of inverted outputs
Number of terminals	52
Actual output times	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	SERIES-RESISTOR
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.25 ns
Maximum seat height	2.45 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
width	14 mm
minfmax	100 MHz

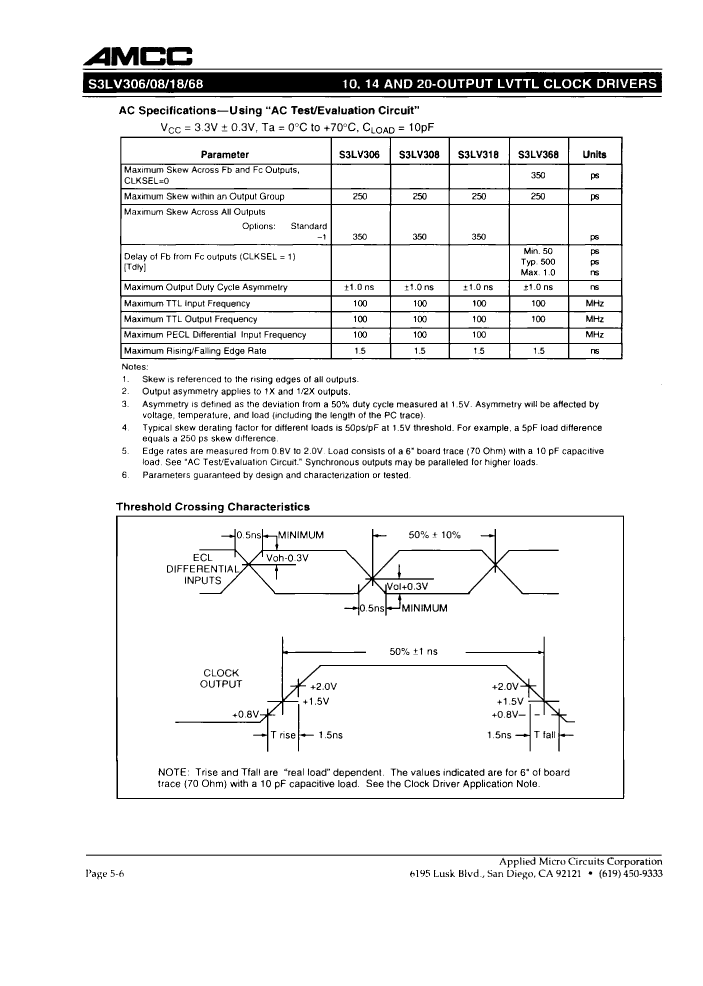

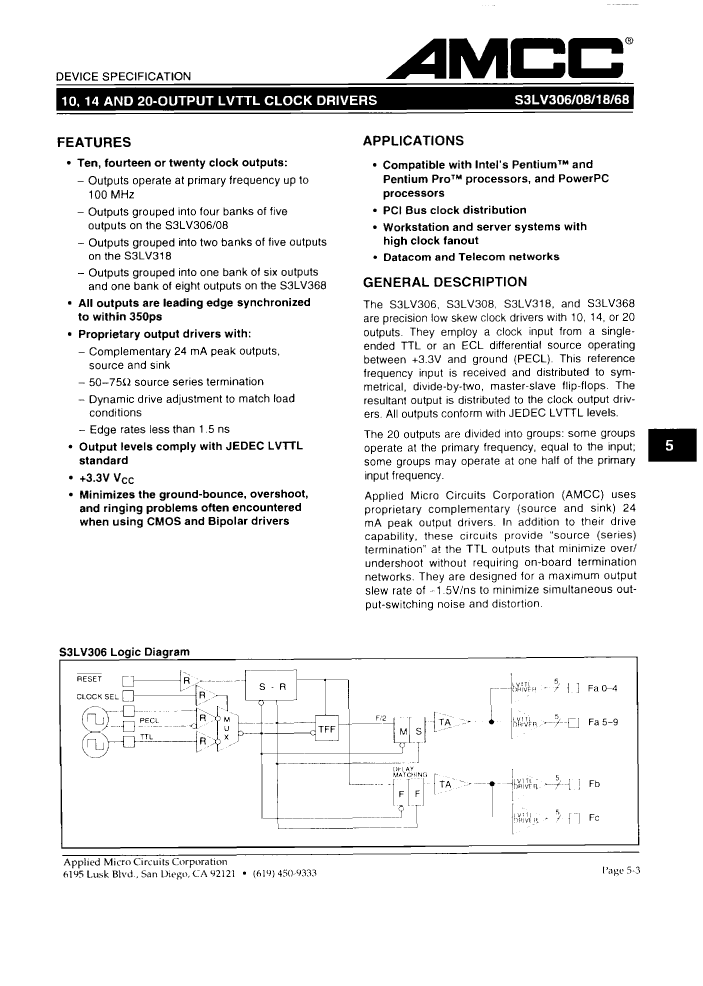

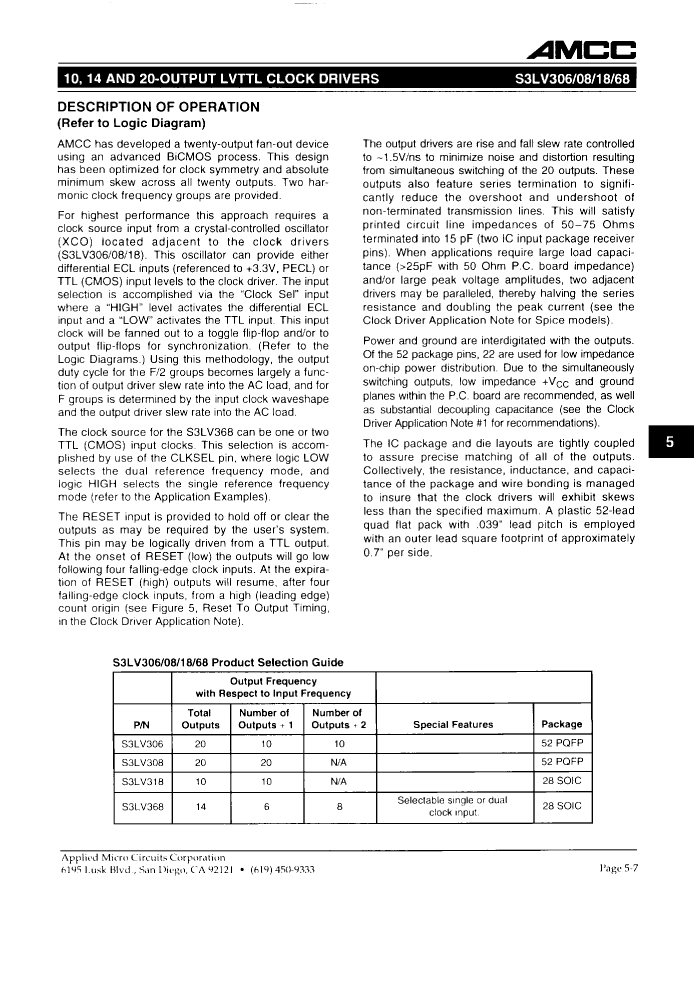

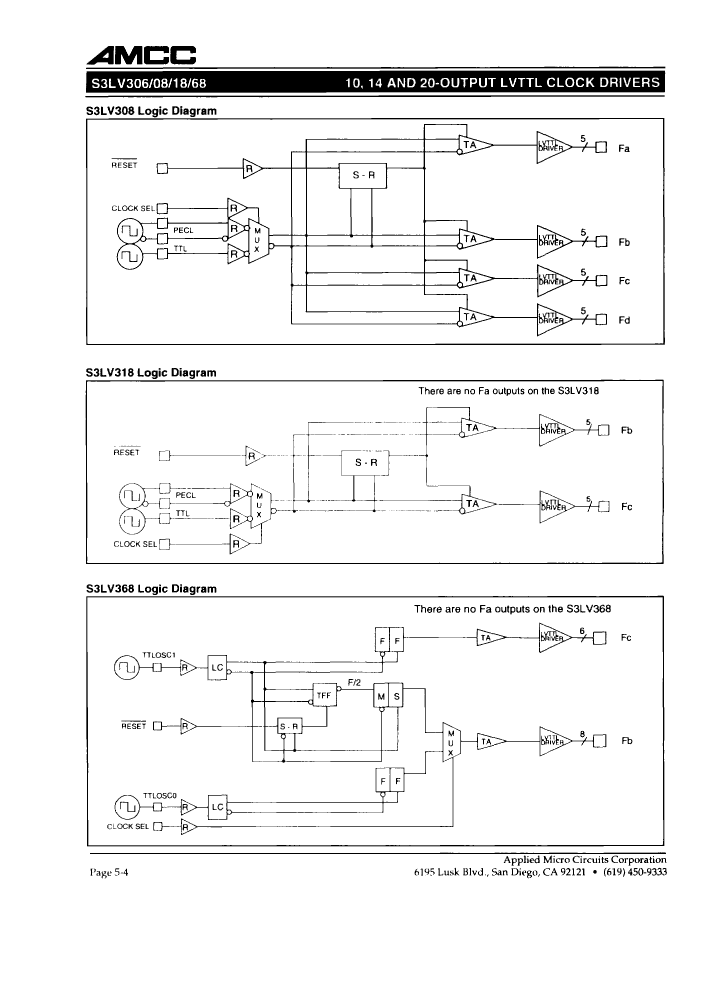

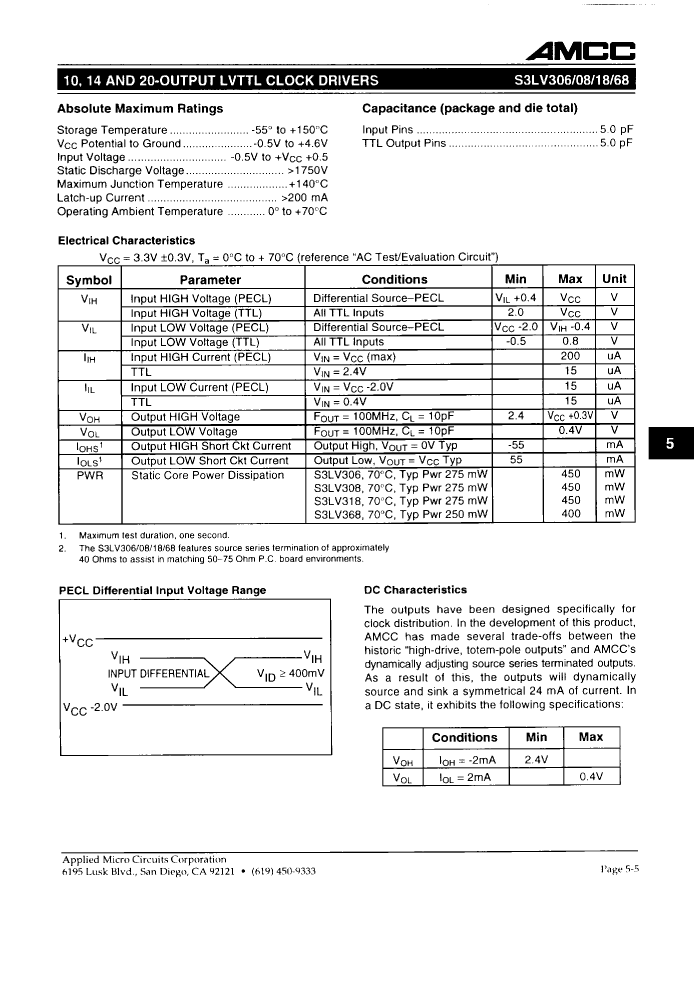

Preview

Download Datasheet

View All

S3LV308Q/TD Related Products

	S3LV308Q/TD	S3LV318S	S3LV318S/TD	S3LV368S	S3LV318S/D	S3LV306Q/D	S3LV306Q/TD	S3LV308Q	S3LV308Q/D
Description	Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52	Low Skew Clock Driver, S3LV Series, 10 True Output(s), 0 Inverted Output(s), BICMOS, PDSO28, 0.300 INCH, SOIC-28	Low Skew Clock Driver, S3LV Series, 10 True Output(s), 0 Inverted Output(s), BICMOS, PDSO28, 0.300 INCH, SOIC-28	Low Skew Clock Driver, LVTTL Series, 14 True Output(s), 0 Inverted Output(s), BICMOS, PDSO28, 0.300 INCH, SOIC-28	Low Skew Clock Driver, S3LV Series, 10 True Output(s), 0 Inverted Output(s), BICMOS, PDSO28, 0.300 INCH, SOIC-28	Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52	Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52	Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52	Low Skew Clock Driver, S3LV Series, 20 True Output(s), 0 Inverted Output(s), BICMOS, PQFP52, 14 X 14 MM, 2 MM HEIGHT, PLASTIC, QFP-52
Parts packaging code	QFP	SOIC	SOIC	SOIC	SOIC	QFP	QFP	QFP	QFP
package instruction	QFP,	SOP,	SOP,	SOP,	SOP,	QFP,	QFP,	QFP,	QFP,
Contacts	52	28	28	28	28	52	52	52	52
Reach Compliance Code	unknow	compliant	unknown	unknown	unknown	unknown	unknow	compli	unknow
series	S3LV	S3LV	S3LV	LVTTL	S3LV	S3LV	S3LV	S3LV	S3LV
Input adjustment	DIFFERENTIAL MUX	MUX	MUX	MUX	MUX	DIFFERENTIAL MUX	DIFFERENTIAL MUX	DIFFERENTIAL MUX	DIFFERENTIAL MUX
JESD-30 code	S-PQFP-G52	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	S-PQFP-G52	S-PQFP-G52	S-PQFP-G52	S-PQFP-G52
length	14 mm	17.8816 mm	17.8816 mm	17.8816 mm	17.8816 mm	14 mm	14 mm	14 mm	14 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	52	28	28	28	28	52	52	52	52
Actual output times	20	10	10	14	10	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	SOP	SOP	SOP	SOP	QFP	QFP	QFP	QFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.25 ns	0.25 ns	0.25 ns	1 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns	0.25 ns
Maximum seat height	2.45 mm	2.8194 mm	2.8194 mm	2.8194 mm	2.8194 mm	2.45 mm	2.45 mm	2.45 mm	2.45 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1 mm	1 mm	1 mm	1 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD
width	14 mm	7.4676 mm	7.4676 mm	7.3406 mm	7.4676 mm	14 mm	14 mm	14 mm	14 mm
minfmax	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Maker	Applied Micro Circuits (MACOM)	-	-	-	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)	Applied Micro Circuits (MACOM)
Output characteristics	SERIES-RESISTOR	SERIES-RESISTOR	SERIES-RESISTOR	-	SERIES-RESISTOR	SERIES-RESISTOR	SERIES-RESISTOR	SERIES-RESISTOR	SERIES-RESISTOR
