8D509M98BB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D509M98BB

8D509M98BB: DescriptionMIL Series Connector, 3 Contact(s), Composite, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size316KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D509M98BB Overview

MIL Series Connector, 3 Contact(s), Composite, Female, Crimp Terminal, Plug,

8D509M98BB Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Composite

: Nickel

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

ØS

21.8 Max

31.5 Max

VV THREAD

M12x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +200°C

: 2000 hours

: 9.8 g ± 10%

PN: 8D509M98BB

ISS

14-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

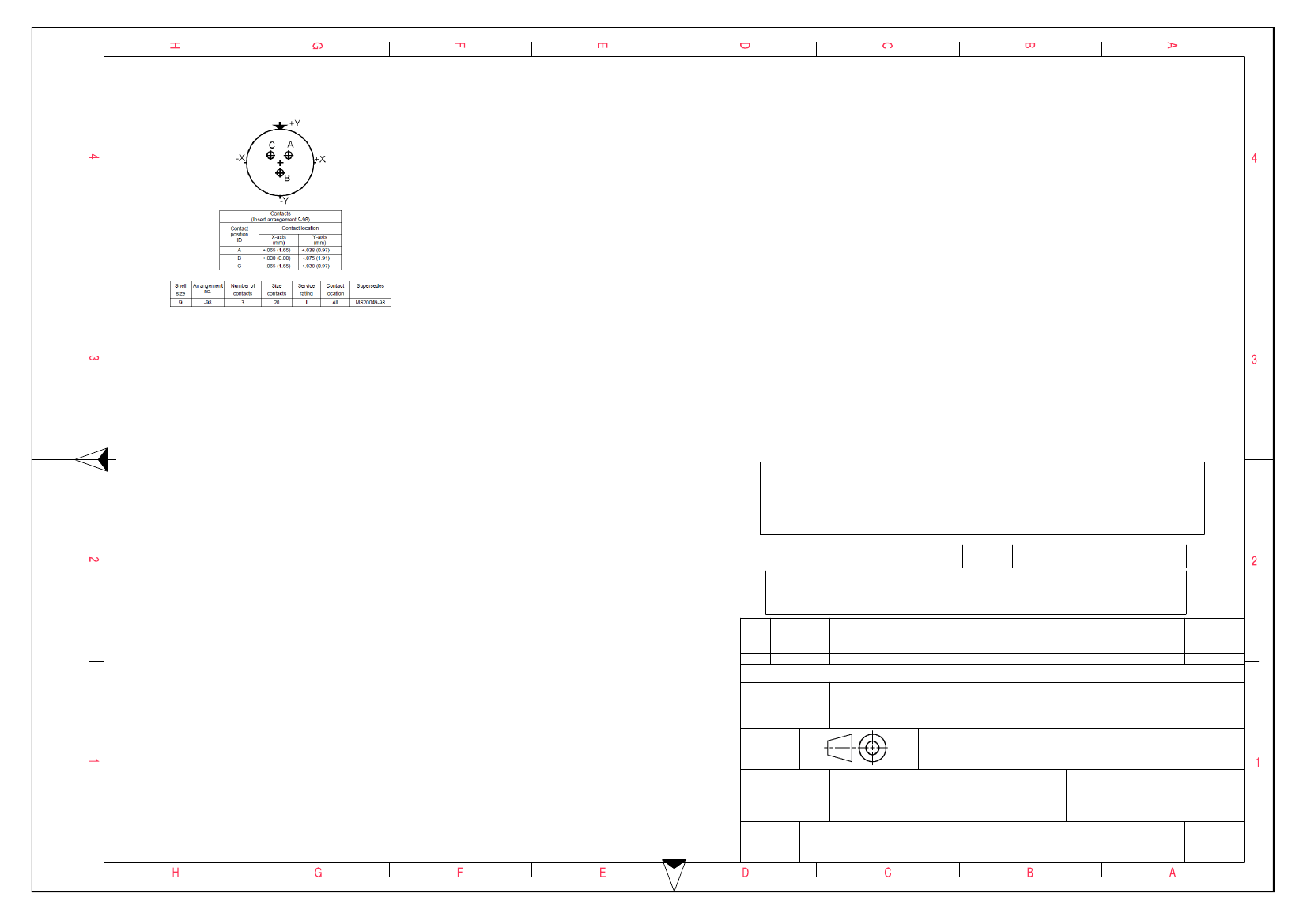

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Plug with RFI Shielding

CONTACT TYPE

SHELL SIZE : 09

PLATING

M =

Nickel

: Standard Crimp Contact

ORIENTATION : B

CONTACT TYPE : SOCKET(500 Matings)

CONTACT LAYOUT : 09-98

FORMAT

Composite Plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D509M98BB-C

SHEET

1/2
