Z84C10AB6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C10AB6

Z84C10AB6: Description1 CHANNEL(S), 4MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size820KB，20 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

Z84C10AB6 Overview

1 CHANNEL(S), 4MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40

Z84C10AB6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	_compli
Address bus width	16
Bus compatibility	Z80
maximum clock frequency	4 MHz
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.18 mm
Number of DMA channels	1
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.45 mm
Maximum slew rate	7 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER

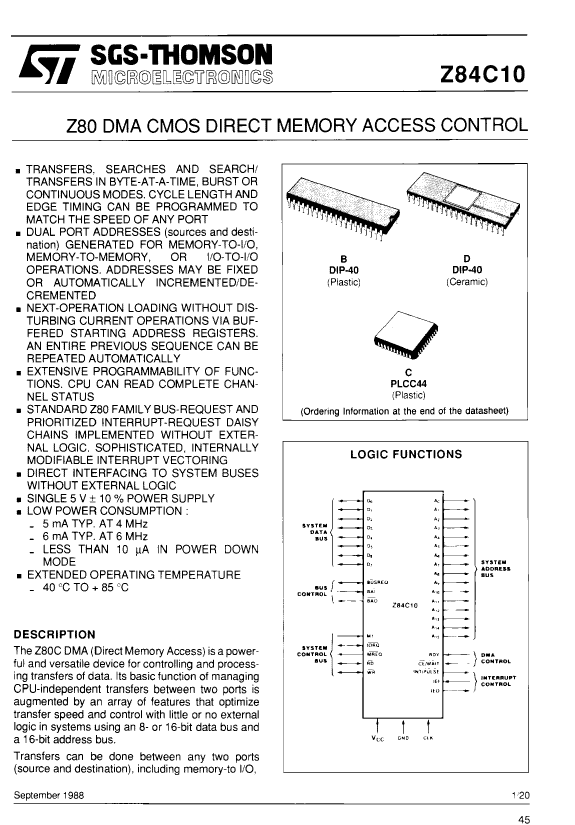

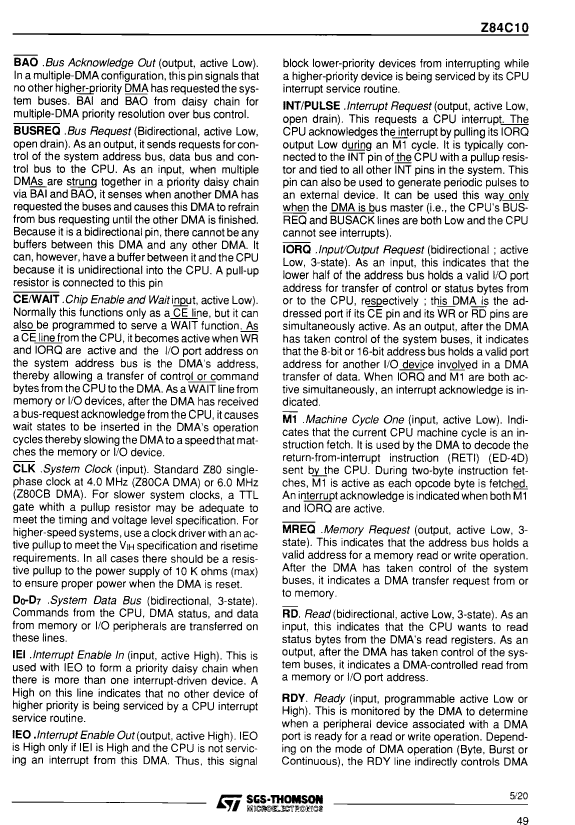

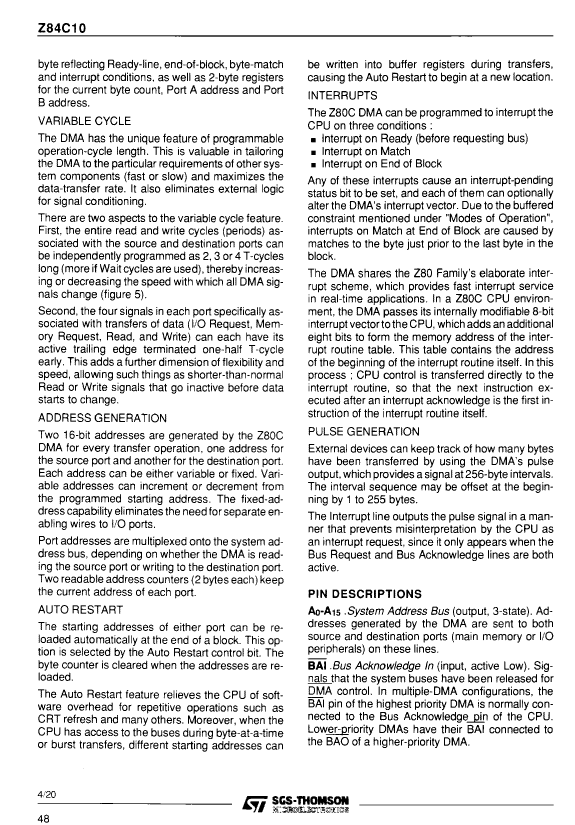

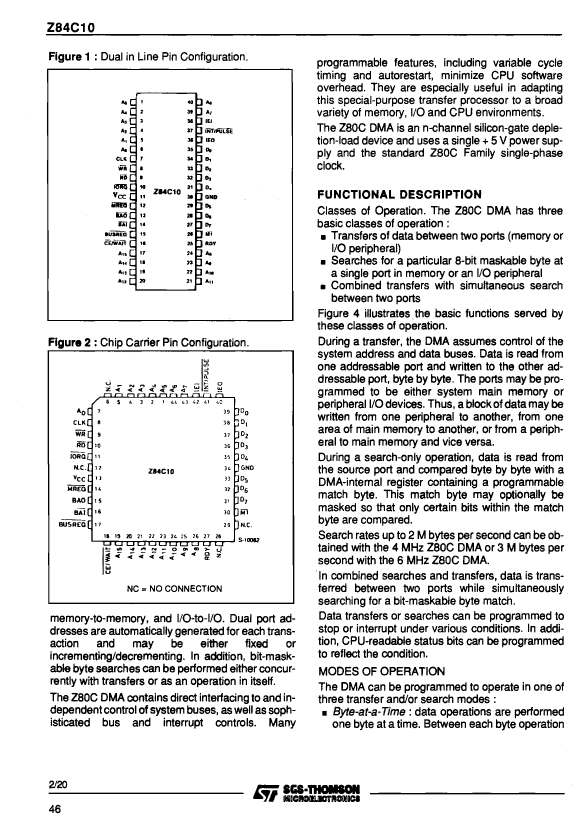

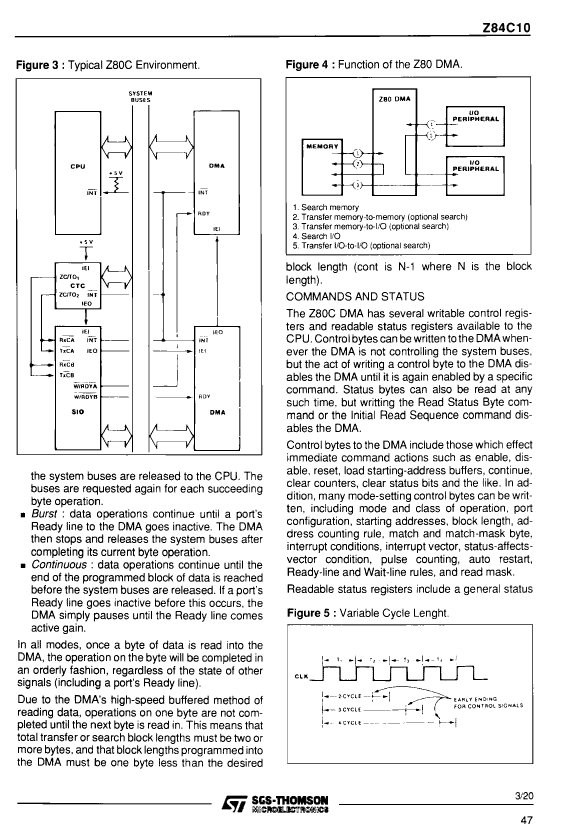

Z84C10AB6 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z84C10AB6 Related Products

	Z84C10AB6	Z84C10BB6	Z84C10BC6	Z84C10AC6
Description	1 CHANNEL(S), 4MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40	1 CHANNEL(S), 6MHz, DMA CONTROLLER, PDIP40, PLASTIC, DIP-40	1 CHANNEL(S), 6MHz, DMA CONTROLLER, PQCC44, PLASTIC, LCC-44	1 CHANNEL(S), 4MHz, DMA CONTROLLER, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	LCC	LCC
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	40	40	44	44
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant
Address bus width	16	16	16	16
Bus compatibility	Z80	Z80	Z80	Z80
maximum clock frequency	4 MHz	6 MHz	6 MHz	4 MHz
External data bus width	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0
length	52.18 mm	52.18 mm	16.5862 mm	16.5862 mm
Number of DMA channels	1	1	1	1
Number of terminals	40	40	44	44
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.45 mm	4.45 mm	4.7 mm	4.7 mm
Maximum slew rate	7 mA	10 mA	10 mA	7 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	16.5862 mm	16.5862 mm
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER
