3103X504N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 3103X504N

3103X504N: DescriptionRESISTOR, TRIMMER, CARBON FILM, 1 TURN(S), 0.05W, 500000ohm, ROHS COMPLIANT; CategoryPassive components The resistor; File Size117KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3103X504N Overview

RESISTOR, TRIMMER, CARBON FILM, 1 TURN(S), 0.05W, 500000ohm, ROHS COMPLIANT

3103X504N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator direction	VERTICAL
Actuator type	SCREW
Manufacturer's serial number	3103
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	1
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.05 W
resistance	500000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
surface mount	YES
technology	CARBON FILM
Terminal surface	NOT SPECIFIED
Terminal shape	WRAPAROUND
Tolerance	30%

Preview

Download Datasheet

View All

C orporate Hom e

Electronic Components

Se gm e nts

W ho W e Are

My Account

Searc h

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Resistors

Product Feature Selector

> Product Details

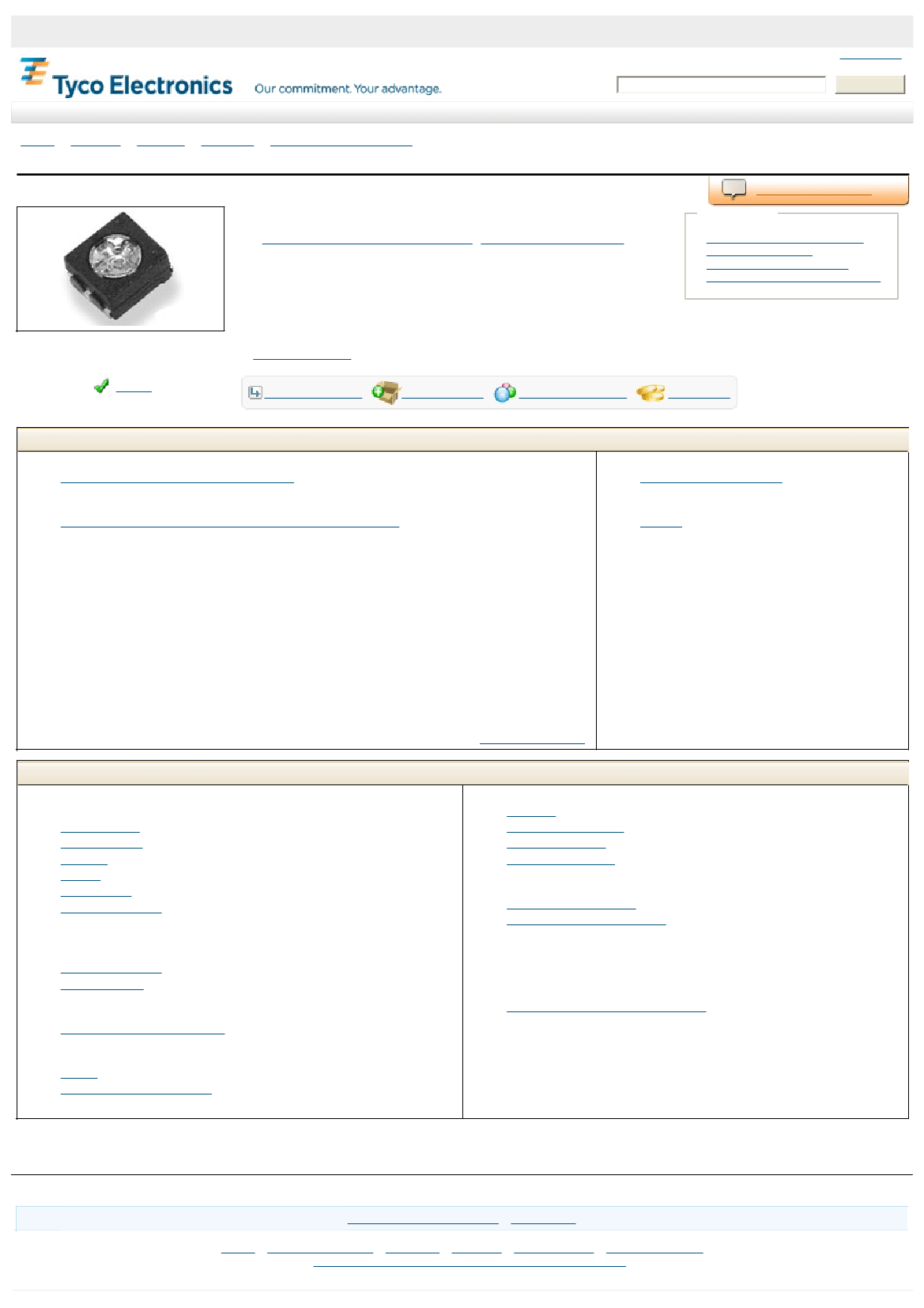

3103X504N Product Details

Live Product Chat

Variable Resistors

C onve rte d to EU R oHS/ELV C om plia nt

(

Sta te m e nt of C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

3103X504N

(1-1623917-0)

T E I nternal N umber: 1 - 1 6 2 3 9 1 7 - 0

Product Highlights:

Variable Resistor

Resistor Type = Trimmer

Resistance Selection = K ?

Resistance = 500K ?

Power Rating = .05 W

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Active

Buy P roduc t

Documentation & Additional Information

Product Drawings:

SMD EC ONOMY TRIMMERS SERIES 3103

(PDF, English)

Catalog Pages/Data Sheets:

SMD Economy Trimmers - Type 3103 Series - Tyco Elect...

(PDF, English)

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type = Variable Resistor

Resistor Type

= Trimmer

Resistance (?)

= 500K

Element

= C arbon

Sealed

= Semi-Sealed

Mount Angle

= Horizontal

Termination Type

= Surface Mount Terminals

Electrical Characteristics:

Resistance Selection (?) = K

Power Rating (W)

= 0.05

Tolerance (%)

= 30

Termination Related Features:

Termination Post Orientation

= Delta

Body Related Features:

Series

= 3103

Package, C omponent Size

= 3

Configuration Related Features:

Sections

= Single

Adjustment Location

= Top

Adjustment Style

= C ross Slot

Operating Function

= Single Turn

Industry Standards:

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Reflow solder capable to 245?C ,

Reflow solder capable to 260?C

RoHS/ELV C ompliance History = C onverted to comply with RoHS

directive

Conditions for Usage:

Temperature C oefficient (ppm/?C )

= 500

Other:

Brand = C itec

Additional Information:
