D3212

Description
RF RELAY, DPDT, MOMENTARY, 0.008A (COIL), 24VDC (COIL), 200mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
CategoryMechanical and electronic products    relay
File Size69KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

D3212 Online Shopping

Suppliers Part Number Price MOQ In stock
D3212 - - View Buy Now

D3212 Overview

RF RELAY, DPDT, MOMENTARY, 0.008A (COIL), 24VDC (COIL), 200mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

D3212 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresRELEASE TIME WITH DIODE IN PARALLEL
body width7.3 mm
body height10.7 mm
Body length or diameter15 mm
Maximum coil current (DC)0.008 A
Coil operating voltage (DC)16.8 V
Coil power200 mW
Coil release voltage (DC)2.4 V
Coil resistance2880 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load2A@250VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated R load2A@220VDC
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)220 V
Contact/Output Power TypeAC/DC
Electrical life500000 Cycle(s)
Maximum insertion loss-0.6 dB
Maximum isolation-15.1 dB
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
operating hours9 ms
Maximum operating frequency900 MHz
Minimum operating frequency100 MHz
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
method of packingBOX; TUBE
physical size15mm x 7.3mm x 10.7mm
GuidelineCECC; CSA; IEC; UL
Relay actionMOMENTARY
Relay functionDPDT
Relay typeRF RELAY
release time9 ms
sealIP67
surface mountNO
switching time18 ms
Termination typeSOLDER
voltage standing wave ratio1.45

Preview

Download Datasheet
THIS DRAWING IS A CONTROLLED DOCUMENT.
LOC
DIST
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
HJ
-
A4
A5
A6
A7
3
4
Doc change D02309-DOK51 to C-1462034-2
change marking
REVISED PER ECO-11-005150
REVISED PER ECO-13-009556
30Jan2006
28Jul2006
23MAR2011
14JUN2013
UKo
UKo
RK
UKo
HD
HD
HMR
AK
1
5

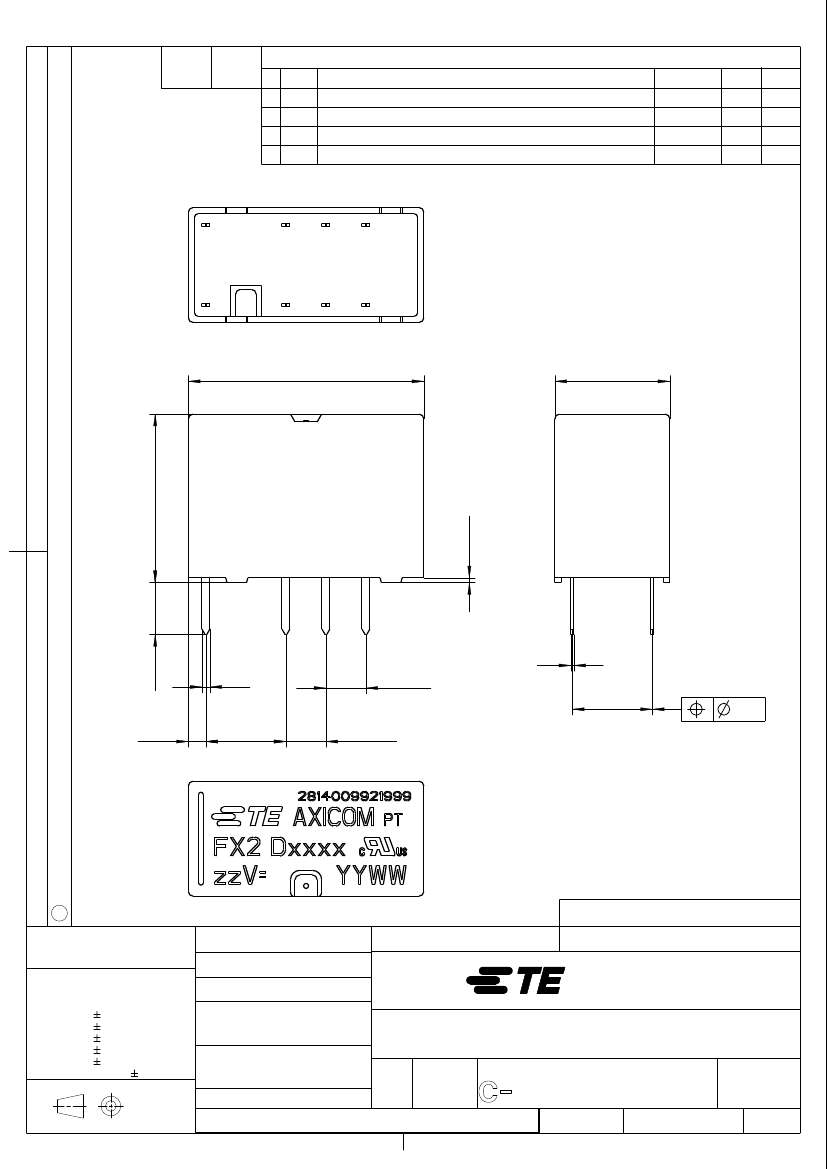

Relay - bottom view
