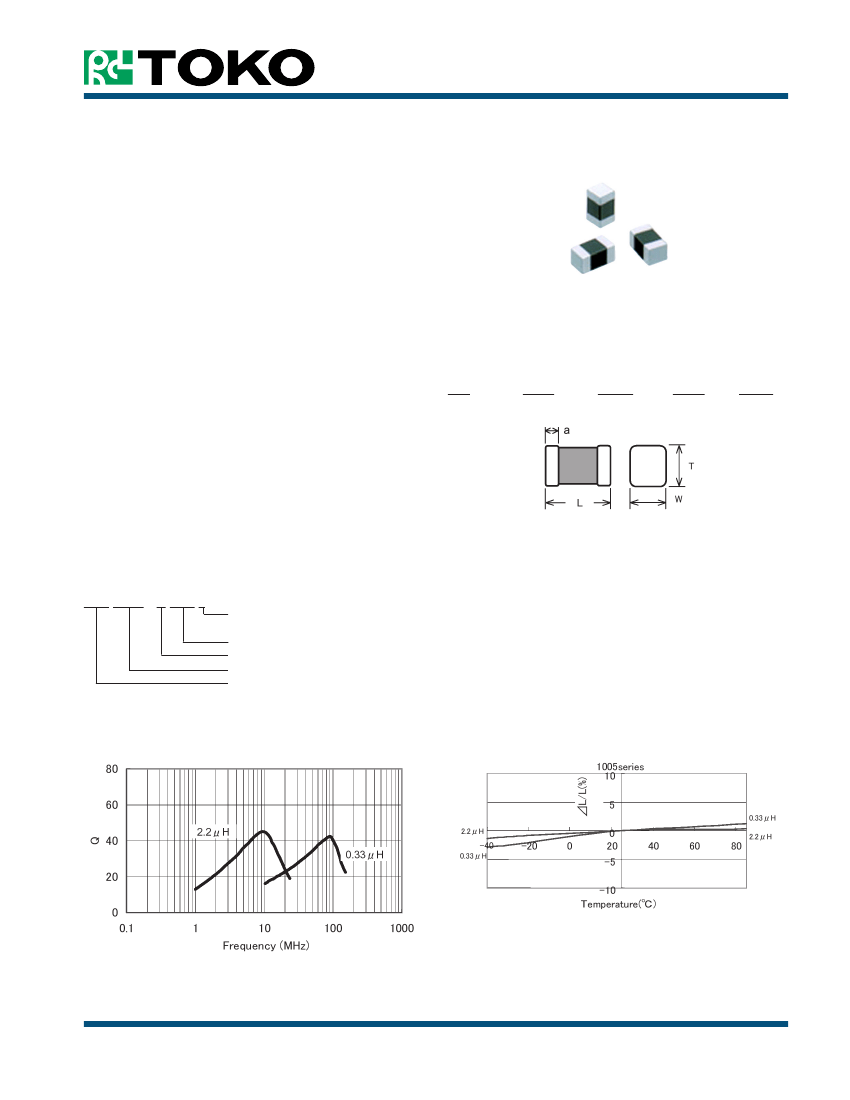

LLU1005 Series
MULTILAYER FERRITE CHIP INDUCTOR
DESCRIPTION
The TOKO LLU1005 Series is a multilayer ferrite chip
inductor designed for general-purpose signal line
applications found in resonance circuitry, LC filter
networks, and RF chokes. A proprietary ferrite material
and advanced multilayer manufacturing process deliver
excellent performance and exceptional reliability over an
inductance range of 0.1 to 4.7µH.
FEATURES
•
•
•
•
•
•
•
EIA standard 0402 footprint
Low profile: 0.55mm max.
Inductance range: 0.1 to 4.7µH
Integrated monolithic structure
Magnetically shielded minimizing crosstalk
Operating temperature: -40°C to +85°C
Reflow solderable
DIMENSIONS
Type
LLU1005
L (mm)
1.0
±0.5
W (mm)
0.5
±0.05
T (mm)
0.5
±0.05
a (mm)
0.25
±0.1
PART NUMBERING
LLU 1005 - A R10 J
Tolerance
(J=±5%, K=±10%)
Inductance
Material (ferrite)
Dimensions (LxW)
Type Name
FREQUENCY CHARACTERISTICS
TEMPERATURE CHARACTERISTICS
July 2002
© 2002 TOKO America, Inc.
All Rights Reserved
Printed in USA
1
CF-258-LLU1005
R-LOG0702A
LLU1005 Series
MULTILAYER FERRITE CHIP INDUCTOR
ELECTRICAL SPECIFICATIONS
TYPE LLU1005
TOKO
Part
Number
LLU1005-AR10_*
LLU1005-AR12_*
LLU1005-AR15_*
LLU1005-AR18_*
LLU1005-AR22_*
LLU1005-AR27_*
LLU1005-AR33_*
LLU1005-BR39_*
LLU1005-BR47_*
LLU1005-BR56_*
LLU1005-BR68_*
LLU1005-BR82_*
LLU1005-B1R0_*
LLU1005-B1R2_*
LLU1005-B1R5_*
LLU1005-B1R8_*
LLU1005-B2R2_*
LLU1005-B2R7_*
LLU1005-B3R3_*
LLU1005-B3R9_*
LLU1005-B4R7_*
Inductance
(µH)
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
Tolerance
(%)
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
±5, ±10
Q
min.
10
10
10
10
10
10
10
20
20
20
20
20
20
20
20
20
20
20
20
20
20
SRF
(MHz)
min.
195
180
165
150
135
120
105
85
80
75
70
65
60
55
50
45
40
35
30
25
23
RDC
(Ω)
max.
0.50
0.70
0.90
1.10
1.30
1.50
1.70
0.60
0.70
0.80
0.90
1.00
1.10
1.25
1.40
1.55
1.70
2.30
2.60
2.90
3.30
IDC
(mA)
max.
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Measuring
Frequency
(MHz)
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
10
10
10
10
* Add tolerance to part number: J =
±5%,
K =
±10%
