AMP-TRAP
®
–Form 101
A60X
SEMICONDUCTOR PROTECTION FUSES

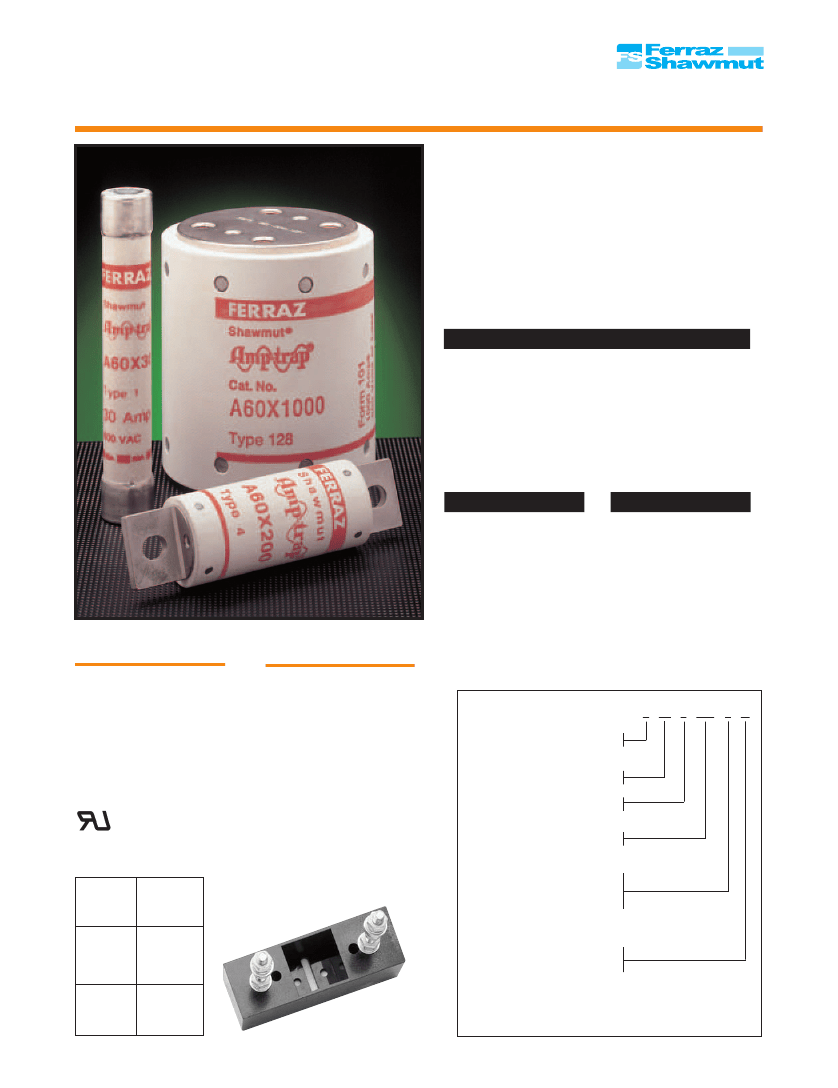

A60X Amp-trap
®
Form 101 Semiconductor Protection
fuses are popular for the protection of higher voltage
heavy rectifiers such as traction rectifiers. They can
carry long sustained overloads common with heavy
duty apparatus. 700A through 2000A sizes are of
compact, hockey-puck design, able to provide high
power protection in a small space.
Features / Benefits
®
Low l
2
t
minimizes damage to protected components on
short circuit
®
Controlled arc voltage
reduces stress to circuit
components during fuse clearing
®
Choice of mounting types
helps in equipment design
Ratings
®
AC:
1-2000A
600V, 100kA I.R.
Approvals
®
UL Recognized
Component
®
AC: UL Guide No.
JFHR2 (35-800A)
HIGHLIGHTS:
®
Fast Acting
®
Current Limiting
®
Low l t
®
Indicator Options
2
Available
APPLICATIONS:
®
Protection of heavy
traction and electro-
chemical as well as
rectifiers and other
heavy-duty equipment
Catalog Numbering System
Amp-trap
®
Fuse
Rated Volts - 600
Style
Amperes*
A
60
X
600
1
4
128
A 60 X 600 - 4 TI
Single Pole Fuse Blocks for A60X Fuses
FUSE
AMPERE
RATING
1-30
31-60
61-100
101-200
201-400
401-600
FUSE BLOCK
CATALOG
NUMBER
70316
P243C
P243C
P243C
P266A
P266A
Mounting Types*
Ferrule
Blades, bolt-in
Hockey puck, bolt-in
Integral Blown-Fuse
Indicator
Trigger Indicator
Trigger Actuator
TI
TA
* For ampere ratings and types not listed, consult the factory.
D 20
AMP-TRAP
®
–Form 101
A60X
AMPERE
RATING
1
2
3
4
5
6
7
8
10
12
15
20
25
30
35
40
45
50
55
60
70
80
CATALOG
NUMBER
A60X1-1
A60X2-1
A60X3-1
A60X4-1
A60X5-1
A60X6-1
A60X7-1
A60X8-1
A60X10-1
A60X12-1
A60X15-1
A60X20-1
A60X25-1
A60X30-1
A60X35-4
A60X40-4
A60X45-4
A60X50-4
A60X55-4
A60X60-4
A60X70-4
A60X80-4
OUTLINE
FIG.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
AMPERE
RATING
80
90
100
100
100
125
125
150
150
175
200
200
200
225
250
250
250
300
300
300
350
350
SEMICONDUCTOR PROTECTION FUSES
CATALOG
NUMBER
A60X80-4TA
A60X90-4
A60X100-4
A60X100-4TA
A60X100-4TI
A60X125-4
A60X125-4TA
A60X150-4
A60X150-4TA
A60X175-4
A60X200-4
A60X200-4TA
A60X200-4TI
A60X225-4
A60X250-4
A60X250-4TA
A60X250-4TI
A60X300-4
A60X300-4TA
A60X300-4TI
A60X350-4
A60X350-4TA
OUTLINE
FIG.
4
3
3
4
3
3
4
3
4
3
3
4
3
3
3
4
3
3
4
3
3
4
AMPERE
RATING
400
400
400
450
450
500
500
500
600
600
600
700
700
800
800
800
1000
1200
1500
1600
1800
2000
CATALOG
NUMBER
A60X400-4
A60X400-4TA
A60X400-4TI
A60X450-4
A60X450-4TA
A60X500-4
A60X500-4TA
A60X500-4TI
A60X600-4
A60X600-4TA
A60X600-4TI
A60X700-4
A60X700-128
A60X800-4
A60X800-4TA
A60X800-128
A60X1000-128
A60X1200-128
A60X1500-128
A60X1600-128
A60X1800-128
A60X2000-128
OUTLINE
FIG.
3
4
3
3
4
3
4
3
3
4
3
5
7
5
6
7
8
8
8
8
8
8
Standard Fuse Ampere Ratings, Catalog Numbers
D
For ampere ratings and styles not listed, call Technical Services.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5

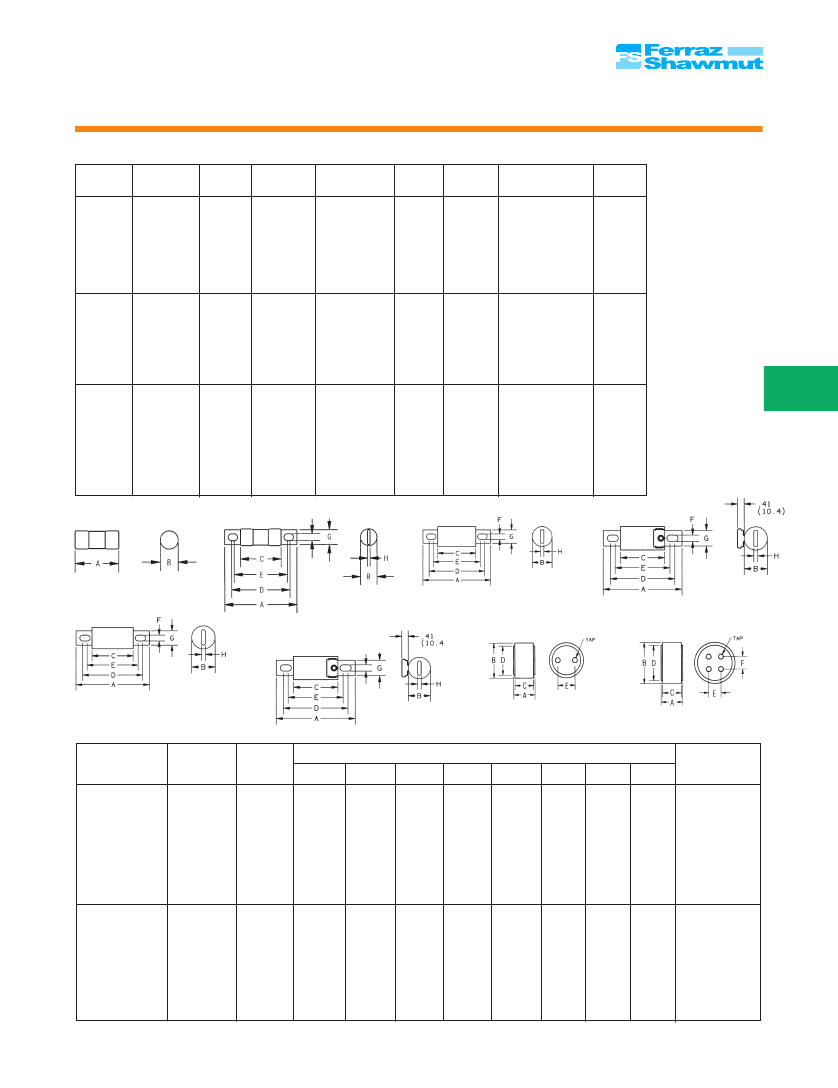

Dimensions
OUTLINE
REF.
A60X1 to 30
A60X35 to 60
A60X70 to 100
A60X125 to 200
A60X225 to 400
A60X450 to 600
A60X700 to 800
A60X700 to 800
A60X1000 to 1200
A60X1500 to 2000
MOUNTING
TYPE
1
4
4, 4TI*, 4TA
4, 4TI*, 4TA
4, 4TI*, 4TA
4, 4TI*, 4TA
4, 4TA*
128
128
128
FIG.
A
1
2
3, 4*
3, 4*
3, 4*
3, 4*
5, 6*
7
8
8
5.00
(127)
4.38
(111)
4.41
(112)
4.41
(112)
5.13
(130)
5.13
(130)
7.25
(184)
4.00
(102)
4.00
(102)
4.00
(102)
B
Figure 6
Figure 7
Figure 8
TAP
G
-
-
.72
(18.3)
.75
(19.1)
1.00
(25.4)
1.00
(25.4)
1.50
(38.1)
2.00
(50.8)
-
-
-
-
-
-
H
-
-
.13
(3.3)
.13
(3.3)
.19
(4.8)
.25
(6.4)
.25
(6.4)
.38
(9.7)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3/8-24-1/2 Deep
-
3/8-24-1/2 Deep
-
1/2-20-1/2 Deep
-
DIMENSIONS - INCHES (mm)
C
D
E
F
-
-
2.78
(70.6)
2.91
(73.9)
2.91
(73.9)
2.88
(73.2)
2.88
(73.2)
3.00
(76.2)
3.75
(95.3)
3.75
(95.3)
3.75
(95.3)
-
-
3.69
(93.7)
3.72
(94.5)
3.72
(94.5)
4.19
(106)
4.06
(103)
5.94
(151)
2.50
(63.5)
3.00
(76.2)
3.75
(95.3)
-
-
3.44
(87.4)
3.59
(91.2)
3.59
(91.2)
3.56
(90.4)
3.69
(93.7)
4.56
(116)
1.50
(38.1)
1.50
(38.1)
1.50
(38.1)
-
-
.34
(8.6)
.31
(7.9)
.31
(7.9)
.41
(10.4)
.41
(10.4)
.53
(13.5)
-
-
1.50
(38.1)
1.50
(38.1)
.81
(20.6)
.81
(20.6)
1.00
(25.4)
1.22
(31.0)
1.50
(38.1)
2.00
(50.8)
2.50
(63.5)
3.00
(76.2)
3.50
(88.9)
4.50
(114)
* Optional Trigger Actuator (TA)
D 21
AMP-TRAP
®
–Form 101
A60X
SEMICONDUCTOR PROTECTION FUSES
A60X1 to 2000

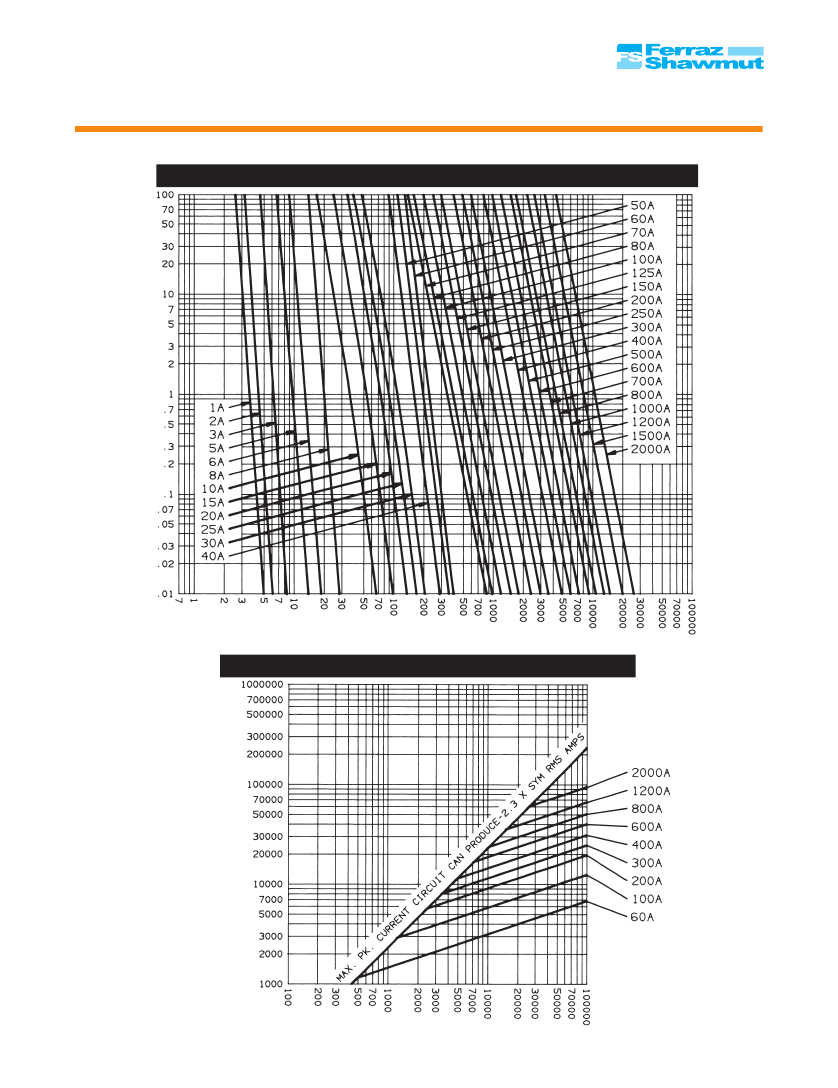

Melting Time – Current Data, 600V Fuses
Time in Seconds
Current in Amperes
Peak Let-Thru Current Data – A60X60 to 2000, 600 Volts AC
Maximum Instantaneous Peak Let-Thru Amperes
Available Current in RMS Symmetrical Amperes
D 22
AMP-TRAP
®
–Form 101
A60X
600 VAC
Fault
SEMICONDUCTOR PROTECTION FUSES
Watts Loss at Rated Current
Load
Fig. A
600 VAC
Fault
Load
Fig. B
I
2
t Data – 600 Volts AC, 100kA
FUSE
AMPERE
RATING
I
2
t DATA
CLEARING AT 600V
1 FUSE
2 FUSES IN
(FIG. A) SERIES (FIG. B)
(A
2
s)
(A
2
s)
.11
.45
1.0
1.8
2.8
4.0
5.4
7.1
40
64
100
170
275
400
1,800
2,400
3,000
3,600
5,400
13,000
17,000
22,000
27,000
42,000
60,000
80,000
110,000
140,000
170,000
240,000
340,000
490,000
620,000
770,000
1,100,000
1,700,000
2,250,000
3,500,000
5,000,000
7,900,000
9,000,000
11,000,000
14,000,000
.09
.36
.80
1.4
2.2
3.2
4.3
5.7
30
48
70
130
210
290
1,200
1,600
2,000
2,400
3,600
9,800
13,000
16,000
20,000
31,000
45,000
61,000
80,000
100,000
125,000
180,000
240,000
320,000
400,000
500,000
720,000
1,000,000
1,400,000
2,200,000
3,100,000
4,900,000
5,600,000
7,100,000
8,900,000
AMPERE WATTS AMPERE
RATING LOSS (w) RATING
10
3.8
100
15
4.5
125
20
4.0
150
7.3
175
25
30
8.7
200
35
5.2
225
40
6.3
300
50
7.4
350
60
9.1
400
70
7.6
450
80
8.9
500
90
9.7
600
WATTS
LOSS (w)
11
12
14
16
19
21
29
35
37
42
47
56
AMPERE WATTS
RATING LOSS (w)
700*
57
700**
52
800*
67
800**
59
1000
72
1200
86
1500
107
1600
117
1800
133
2000
148
2500
183
*Type 4 **Type 128
MELTING
(A
2
s)
Watts Loss vs. % Rated Current (Types 1 & 4)
D
1
2
3
4
5
6
7
8
10
12
15
20
25
30
35
40
45
50
60
70
80
90
100
125
150
175
200
225
250
300
350
400
450
500
600
700
800
1,000
1,200
1,500
1,600
1,800
2,000
.06
.22
.50
.90
1.4
2.0
2.7
3.6
16
22
35
60
95
140
270
350
450
550
800
4,000
5,300
6,700
8,300
13,000
19,000
25,000
33,000
42,000
52,000
75,000
100,000
130,000
170,000
210,000
300,000
430,000
560,000
875,000
1,250,000
2,000,000
2,200,000
2,800,000
3,500,000

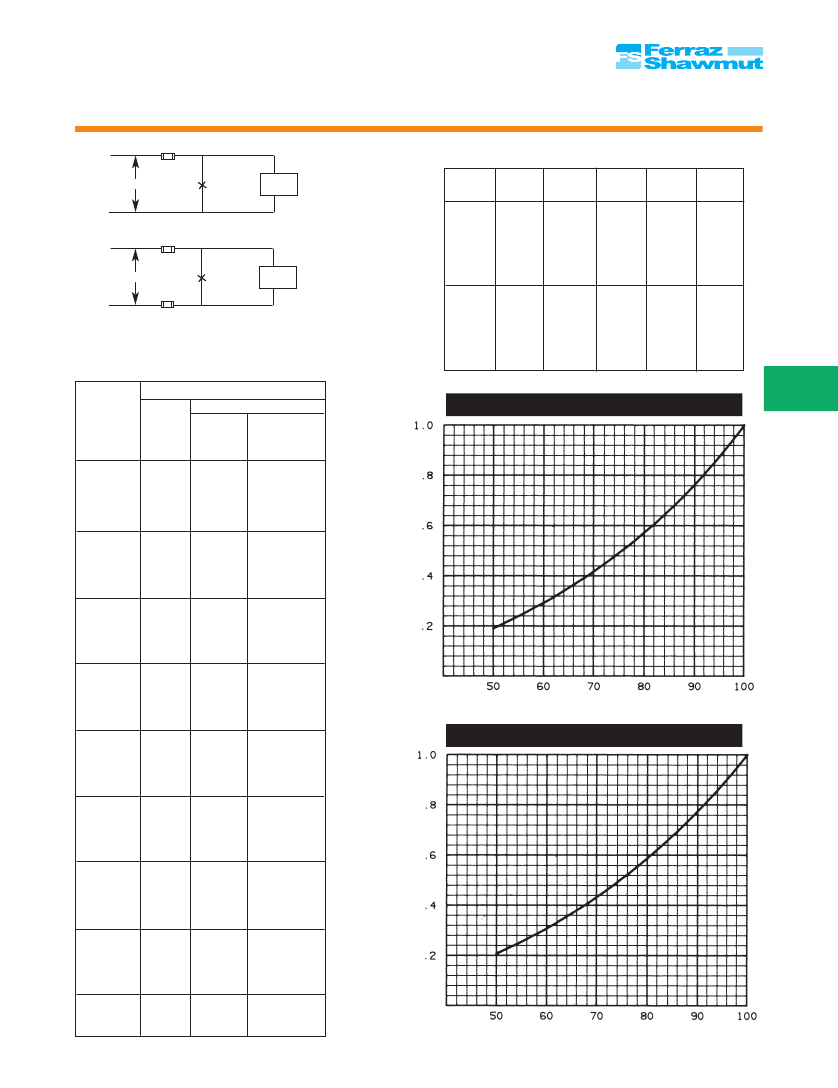

Correction Factor for Watts Loss
Percent Rated Current
Watts Loss vs. % Rated Current (Type 128)
Correction Factor for Watts Loss
Percent Rated Current
D 23
