GUS-QS001-01-1000-M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> GUS-QS001-01-1000-M

Preview

GUS-QS001-01-1000-M: DescriptionArray/Network Resistor, Bussed, 1W, 100ohm, 100V, 20% +/-Tol, 100ppm/Cel, Surface Mount, 3415, QSOP-24; CategoryPassive components The resistor; File Size226KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GUS-QS001-01-1000-M Overview

Array/Network Resistor, Bussed, 1W, 100ohm, 100V, 20% +/-Tol, 100ppm/Cel, Surface Mount, 3415, QSOP-24

GUS-QS001-01-1000-M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	QSOP-24
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
Component power consumption	0.1 W
The first element resistor	100 Ω
Manufacturer's serial number	QS001
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	22
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.63 mm
Package length	8.66 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.91 mm
Rated power dissipation(P)	1 W
resistance	100 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	QS001
size code	3415
surface mount	YES
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	5 ppm/°C
Terminal shape	GULL WING
Tolerance	20%
Operating Voltage	100 V

Preview

Download Datasheet

View All

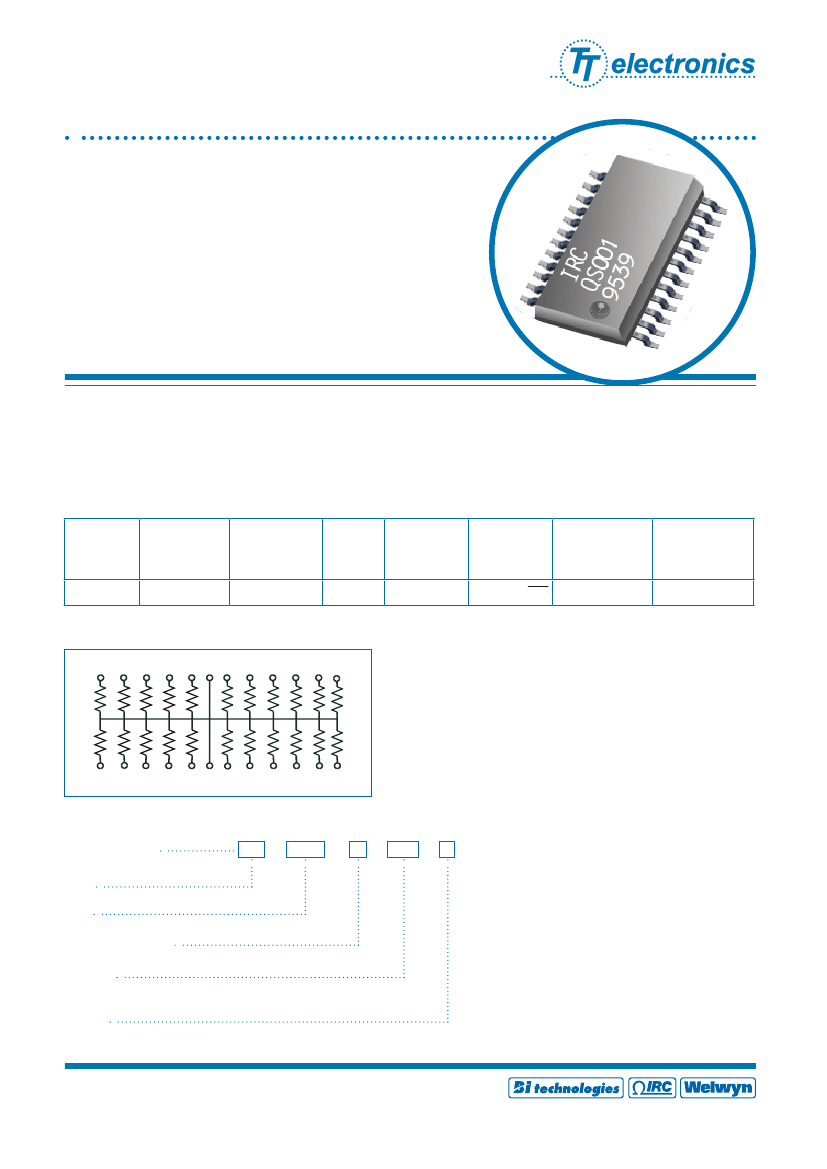

TaNSil

®

0.025” Lead Pitch

High Frequency Resistor Network

QS001 Series

·

Pull up/down resistor

QSOP package - small footprint

Parallel transmission line terminator

High level of integration - replaces 22 discrete resistors

Center located ground pins improve signal

integrity at high frequencies

IRC’s QS001 series 24 pin QSOP resistor network is specially designed for operation in digital circuits with

high frequency, low propagation delay requirements. The device contains 22 TaNSil® resistor elements which

provide rugged, reliable, trouble free operation. The dual, center located common connections provide reduced

propagation delay and improved signal integrity over standard bussed schematics.

General Note

TT electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

10. 11

GUS-QS001-01-1000-M Related Products

	GUS-QS001-01-1000-M	GUS-QS001-03-82R0-J	GUS-QS001-03-82R0-K	GUS-QS001-03-91R0-J	GUS-QS001-01-1000-J
Description	Array/Network Resistor, Bussed, 1W, 100ohm, 100V, 20% +/-Tol, 100ppm/Cel, Surface Mount, 3415, QSOP-24	Array/Network Resistor, Bussed, 1W, 82ohm, 100V, 5% +/-Tol, 25ppm/Cel, Surface Mount, 3415, QSOP-24	Array/Network Resistor, Bussed, 1W, 82ohm, 100V, 10% +/-Tol, 25ppm/Cel, Surface Mount, 3415, QSOP-24	Array/Network Resistor, Bussed, 1W, 91ohm, 100V, 5% +/-Tol, 25ppm/Cel, Surface Mount, 3415, QSOP-24	Array/Network Resistor, Bussed, 1W, 100ohm, 100V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 3415, QSOP-24
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc	TT Electronics plc
package instruction	QSOP-24	QSOP-24	QSOP-24	QSOP-24	QSOP-24
Reach Compliance Code	compli	compliant	compliant	compliant	compli
structure	Chi	Chip	Chip	Chip	Chi
Component power consumption	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W
The first element resistor	100 Ω	82 Ω	82 Ω	91 Ω	100 Ω
Manufacturer's serial number	QS001	QS001	QS001	QS001	QS001
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Network Type	BUSSED	BUSSED	BUSSED	BUSSED	BUSSED
Number of components	22	22	22	22	22
Number of functions	1	1	1	1	1
Number of terminals	24	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	1.63 mm	1.63 mm	1.63 mm	1.63 mm	1.63 mm
Package length	8.66 mm	8.66 mm	8.66 mm	8.66 mm	8.66 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT
Package width	3.91 mm	3.91 mm	3.91 mm	3.91 mm	3.91 mm
Rated power dissipation(P)	1 W	1 W	1 W	1 W	1 W
resistance	100 Ω	82 Ω	82 Ω	91 Ω	100 Ω
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
series	QS001	QS001	QS001	QS001	QS001
size code	3415	3415	3415	3415	3415
surface mount	YES	YES	YES	YES	YES
Temperature Coefficient	100 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C	100 ppm/°C
Temperature coefficient tracking	5 ppm/°C	5 ppm/°C	5 ppm/°C	5 ppm/°C	5 ppm/°C
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Tolerance	20%	5%	10%	5%	5%
Operating Voltage	100 V	100 V	100 V	100 V	100 V
ECCN code	EAR99	-	EAR99	EAR99	EAR99
