SMH
Series
Snap Mount
Large
Capacitance
High CV
High Ripple
85 C
Maximum
Temperature
The SMH series capacitors are the standard 85 C, large capacitance, snap-in capacitors from United
Chemi-Con. The load life for the SMH series is 2,000 hours at 85 C with the rated ripple current
applied. The very high CV values and ripple current capabilities make these capacitors ideal for use in
power supply filter circuits. The SMH capacitors are available in 2 or 4-pin snap-in styles and 3, 4 or
5-pin straight terminals with or without standoffs.
The standard SMH capacitors are non-solvent proof and are not recommended when halogenated
cleaning solvents are used. Refer to the Mini-Glossary for recommended cleaning conditions.
SNAP MOUNT- 85 C
SMH
Summary of Specifications
PC board 2 or 4-pin snap-in; optional 3, 4 or 5-pin straight terminals.
Capacitance range: 56 to 270,000µF.
Voltage range: 6.3 to 450VDC.
Operating temperature range: 40 C to 85 C for 6.3 to 100V; 25 C to 85 C for
160 to 450V.
Leakage current: 0.02CV(µA) or 3mA, whichever is smaller, after 5 minutes at 20 C.
Standard capacitance tolerance: 20%
Nominal case size (D L): 22 20mm to 40 80mm.
Rated lifetime: 2,000 hours at 85 C with the rated ripple current applied.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
307
SMH Series
SMH Specifications
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
I
40 to
85 C for 6.3 to 100VDC;
Characteristics
25 to
85 C for 160 to 450VDC
6.3 to 450VDC
56 to 270,000 F
20% ( M ) at
20 C, 120Hz
20 C.
0.02CV ( A ) or 3mA, whichever is smaller, after 5 minutes at
Where I = Leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
At
20 C, 120Hz
6.3
0.60
10
0.50
16
0.40
25
0.30
35
0.25
50
0.20
63 -100
0.15
160 - 250
315 - 450
0.15
Rated Voltage ( V )
Tan
( DF )
See Note
*
0.10
*
*
0.15 maximum for 35mm and 40mm diameter.
Note: For rated voltages
≤
63V, values are not valid for case sizes >35mm in diameter or >50mm in length.
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
Z ( 40 C ) / Z ( 20 C )
6.3 -16
4
15
25
3
10
25 C or
35
3
8
40 C value and
50, 63
2
6
80, 100
2
5
20 C value shall not
160 - 400
4
–
450
8
–
Ripple Current Multipliers
Refer to Section 4 of the
Mini-Glossary for explanation
of Ripple Current Multipliers.
Ambient Temperature ( C )
45 C
1.73
60 C
1.50
70 C
1.32
85 C
1.00
Frequency (Hz )
DC Rated Voltage
6.3 -50V
63 - 100V
160 - 250V
315 - 450V
50Hz
0.95
0.92
0.81
0.77
120Hz
1.00
1.00
1.00
1.00
300Hz
1.03
1.07
1.17
1.16
1kHz
1.05
1.13
1.32
1.30
10kHz
1.08
1.19
1.45
1.41
100kHz
1.08
1.20
1.50
1.43
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
subjecting them to the DC rated voltage for 2,000 hours at 85 C with the rated ripple current
applied. The sum of DC voltage and peak AC voltage must not exceed the full rated voltage of
the capacitors.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
200% of initial specified value
Leakage current
:
≤
initial specified value
SNAP MOUNT- 85 C
Shelf Life
SMH
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 85 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% of initial measured value
Tan ( DF )
:
≤
150% of initial specified value
Leakage current
:
≤
initial specified value
Others
Satisfies characteristic W of JIS C5141
308
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SMH Series

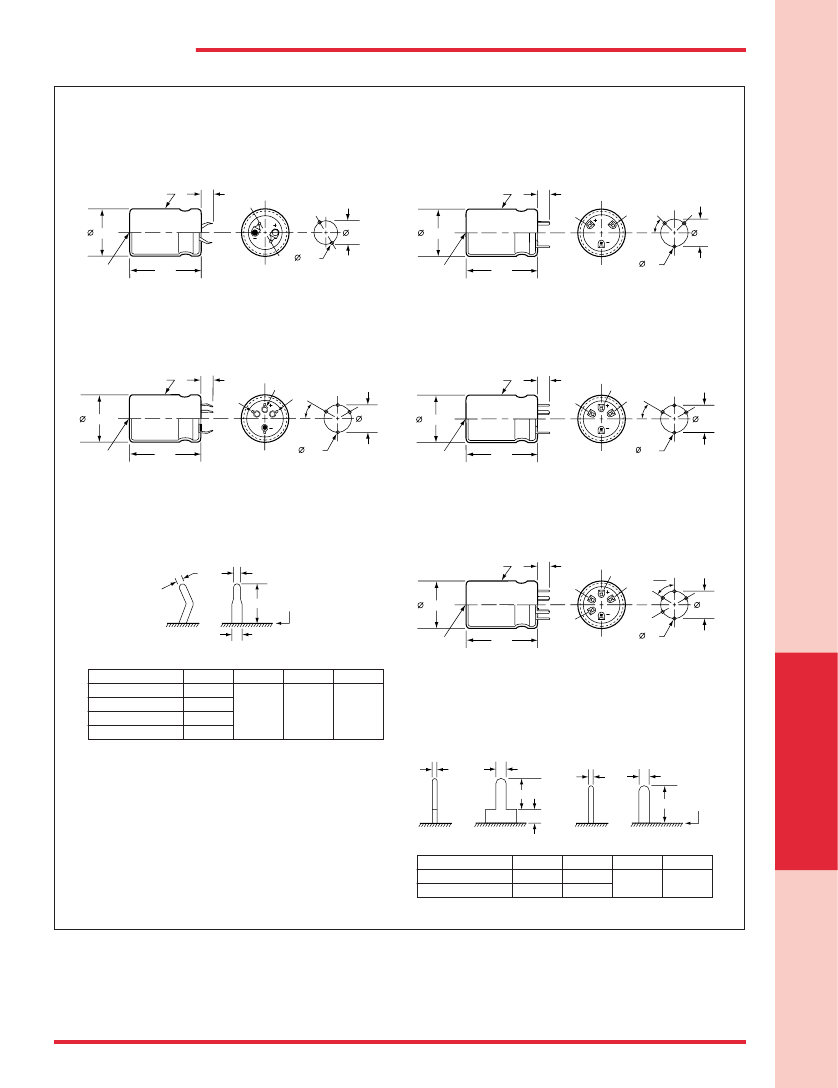

Diagram of Dimensions
Snap Mount
Types VN-T2 & VS-T2
Ø
22~
Ø
35
See
Pin
Detail
Unit: mm
Type VR-T3
Ø
30
See
Pin
Detail
A
B
*
PVC Sleeve
PC board pin-out
PVC Sleeve
PC board pin-out
45°
15
D 1
2-2x
10
D30 1
**
Vent
L
2
**
Vent
L
2
2-3x
Types VN-T4
Ø
35 &
Ø
40
See
Pin
Detail
A
*
D35 1
Type VR-T4
Ø
35
See
Pin
Detail
A
*
30°
22.5
D35 1
PVC Sleeve
B
C
*
PC board pin-out
PVC Sleeve
B
C
*
PC board pin-out
30°
22.5
**
Vent
L
2
2-4x
**
Vent
L
2
2-4x
VN & VS Pin Dimensions
Type VR-T5
Ø
40
See
Pin
Detail
B
*
D40 1
A
*
PC board pin-out
C
D
*
360°
6
25
W
2
W
1
Edge
of can
PVC Sleeve
P
W
**
Vent
W
1
W
2
L
2
2-5x
Type
VN-T2
Ø
22 -
Ø
35
VN-T4
Ø
35 -
Ø
40
VS -T2
Ø
22 -
Ø
30
VS -T2
Ø
35
P
5.8
5.8
4.0
3.5
1.0
1.0
0.5
0.5
W
SNAP MOUNT- 85 C
1.5 0.2
1.0
1.0
VR Pin Dimensions
Standoff Pin (Standard)
***
W
1
W
P
SMH
Straight Pin
W
1
W
P
Edge
of can
CAUTION
*
Use the blank terminals for mechanical support only. The
blank terminals must not be connected to a solder trace on
the PC board, but be electrically isolated from the negative
or positive terminal.
**
Vent may be located either on the bottom or side of the can.
***
Add an “H” to the end of the part number for standoffs.
P
1
Type
VR
(Standoff Pin)
VR
(Straight Pin)
P
3.75 1.0
5.50 1.0
P
1
2.0 max.
—
W
1.5 0.1
W
1
0.7
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
309
SMH Series
Part Numbering System for SMH Series
SMH
200
VN
471
M
22X35
When ordering, always specify complete catalog number for SMH Series.
T2
Terminal Code: T2 = 2 - Pin Snap-in (Standard except for
Ø
40 models).
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R47 = .47 F; 4R7 = 4.7 F;
47R = 47 F; 471 = 470 F; 472 = 4,700 F; 473 = 47,000 F ).
Lead Configuration: VN or VS = Snap-in Terminals.
VR = Straight Pins with or without Standoffs.
See diagrams for terminal options.
DC Rated Voltage: Expressed in Volts (e.g. 200 = 200WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - VN & VR /Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
(A rms) at
85 C, 120Hz
2.44
2.67
3.06
3.49
3.97
4.55
2.7
3.07
3.52
4.02
4.5
5.09
5.71
3.57
3.95
4.45
5.06
5.7
6.48
7.32
4.51
5.01
5.77
6.42
7.29
8.31
10.91
12.78
5.48
6.94
7.95
8.97
10.66
13.79
16.62
SNAP MOUNT- 85 C
6.3 Volts
8 Volts Surge
15,000
18,000
22,000
27,000
33,000
39,000
18,000
22,000
27,000
33,000
39,000
47,000
56,000
27,000
33,000
39,000
47,000
56,000
68,000
82,000
39,000
47,000
56,000
68,000
82,000
100,000
150,000
180,000
56,000
82,000
100,000
120,000
150,000
220,000
270,000
SMH6.3VN153M22X25T2
SMH6.3VN183M22X30T2
SMH6.3VN223M22X30T2
SMH6.3VN273M22X35T2
SMH6.3VN333M22X40T2
SMH6.3VN393M22X50T2
SMH6.3VN183M25X25T2
SMH6.3VN223M25X25T2
SMH6.3VN273M25X30T2
SMH6.3VN333M25X35T2
SMH6.3VN393M25X40T2
SMH6.3VN473M25X45T2
SMH6.3VN563M25X50T2
SMH6.3VN273M30X25T2
SMH6.3VN333M30X25T2
SMH6.3VN393M30X30T2
SMH6.3VN473M30X35T2
SMH6.3VN563M30X40T2
SMH6.3VN683M30X45T2
SMH6.3VN823M30X50T2
SMH6.3VN393M35X25T2
SMH6.3VN473M35X30T2
SMH6.3VN563M35X30T2
SMH6.3VN683M35X35T2
SMH6.3VN823M35X40T2
SMH6.3VN104M35X45T2
SMH6.3VN154M35X63T2
SMH6.3VN184M35X80T2
SMH6.3VR563M40X25T5H
SMH6.3VR823M40X30T5H
SMH6.3VR104M40X35T5H
SMH6.3VR124M40X40T5H
SMH6.3VR154M40X50T5H
SMH6.3VR224M40X63T5H
SMH6.3VR274M40X80T5H
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
35
35
35
35
35
35
35
35
40
40
40
40
40
40
40
25
30
30
35
40
50
25
25
30
35
40
45
50
25
25
30
35
40
45
50
25
30
30
35
40
45
63
80
25
30
35
40
50
63
80
0.066
0.055
0.045
0.037
0.03
0.026
0.055
0.045
0.037
0.03
0.026
0.021
0.018
0.037
0.03
0.026
0.021
0.018
0.015
0.012
0.026
0.021
0.018
0.015
0.012
0.01
0.01
0.009
0.027
0.02
0.017
0.014
0.012
0.009
0.008
SMH
*
The case sizes in table are with no sleeve, refer to diagrams for case sizes with sleeve.
310
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SMH Series
Standard Voltage Ratings - VN & VR /Snap Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Maximum ESR
(
Ω
) at
20 C, 120Hz
Maximum
Ripple Current
(A rms) at
85 C, 120Hz
2.39
2.76
3.12
3.55
4.04
4.58
2.77
3.04
3.48
3.98
4.54
5.08
5.73
3.53
3.73
4.13
5.05
5.72
6.44
3.73
4.13
4.8
5.27
6.38
7.27
8.49
8.91
11.67
5.02
5.74
6.56
7.42
9.54
11.39
15.0
2.51
2.77
2.86
3.29
3.72
4.37
2.95
3.46
3.98
4.26
4.72
5.33
3.66
4.0
4.21
4.82
5.36
6.01
6.79
4.15
4.65
5.15
10 Volts
13 Volts Surge
12,000
15,000
18,000
22,000
27,000
33,000
15,000
18,000
22,000
27,000
33,000
39,000
47,000
22,000
27,000
33,000
39,000
47,000
56,000
27,000
33,000
39,000
47,000
56,000
68,000
82,000
100,000
150,000
47,000
56,000
68,000
82,000
120,000
150,000
220,000
8,200
10,000
12,000
15,000
18,000
22,000
12,000
15,000
18,000
22,000
27,000
33,000
15,000
18,000
22,000
27,000
33,000
39,000
47,000
22,000
27,000
33,000
SMH10VN123M22X25T2
SMH10VN153M22X30T2
SMH10VN183M22X35T2
SMH10VN223M22X40T2
SMH10VN273M22X45T2
SMH10VN333M22X50T2
SMH10VN153M25X25T2
SMH10VN183M25X25T2
SMH10VN223M25X30T2
SMH10VN273M25X35T2
SMH10VN333M25X40T2
SMH10VN393M25X45T2
SMH10VN473M25X50T2
SMH10VN223M30X25T2
SMH10VN273M30X30T2
SMH10VN333M30X30T2
SMH10VN393M30X35T2
SMH10VN473M30X40T2
SMH10VN563M30X45T2
SMH10VN273M35X25T2
SMH10VN333M35X25T2
SMH10VN393M35X30T2
SMH10VN473M35X30T2
SMH10VN563M35X35T2
SMH10VN683M35X40T2
SMH10VN823M35X50T2
SMH10VN104M35X63T2
SMH10VN154M35X80T2
SMH10VR473M40X25T5H
SMH10VR563M40X30T5H
SMH10VR683M40X35T5H
SMH10VR823M40X40T5H
SMH10VR124M40X50T5H
SMH10VR154M40X63T5H
SMH10VR224M40X80T5H
SMH16VN822M22X25T2
SMH16VN103M22X25T2
SMH16VN123M22X30T2
SMH16VN153M22X35T2
SMH16VN183M22X40T2
SMH16VN223M22X50T2
SMH16VN123M25X25T2
SMH16VN153M25X30T2
SMH16VN183M25X35T2
SMH16VN223M25X40T2
SMH16VN273M25X45T2
SMH16VN333M25X50T2
SMH16VN153M30X25T2
SMH16VN183M30X25T2
SMH16VN223M30X30T2
SMH16VN273M30X35T2
SMH16VN333M30X40T2
SMH16VN393M30X45T2
SMH16VN473M30X50T2
SMH16VN223M35X25T2
SMH16VN273M35X30T2
SMH16VN333M35X30T2
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
35
35
35
35
35
35
35
35
35
40
40
40
40
40
40
40
22
22
22
22
22
22
25.4
25.4
25.4
25.4
25.4
25.4
30
30
30
30
30
30
30
35
35
35
25
30
35
40
45
50
25
25
30
35
40
45
50
25
30
30
35
40
45
25
25
30
30
35
40
50
63
80
25
30
35
40
50
63
80
25
25
30
35
40
50
25
30
35
40
45
50
25
25
30
35
40
45
50
25
30
30
0.069
0.055
0.046
0.038
0.031
0.025
0.055
0.046
0.038
0.031
0.025
0.021
0.018
0.038
0.031
0.025
0.021
0.018
0.015
0.031
0.025
0.021
0.018
0.015
0.012
0.01
0.01
0.009
0.026
0.021
0.018
0.015
0.012
0.01
0.008
0.081
0.066
0.055
0.044
0.037
0.03
0.055
0.044
0.037
0.03
0.025
0.02
0.044
0.037
0.03
0.025
0.02
0.017
0.014
0.03
0.025
0.02
SNAP MOUNT- 85 C
SMH
16 Volts
20 Volts Surge
*
The case sizes in table are with no sleeve, refer to diagrams for case sizes with sleeve.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
311
京公网安备 11010802033920号
EEWORLD
