05002-100CKZLJ: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, BP, -/+30ppm/Cel TC, 0.00001uF, 0603,; CategoryPassive components capacitor; File Size78KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

05002-100CKZLJ Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, BP, -/+30ppm/Cel TC, 0.00001uF, 0603,

05002-100CKZLJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	, 0603
Reach Compliance Code	compli
capacitance	0.00001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.91 mm
JESD-609 code	e0
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Paper, 7 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	200 V
size code	0603
surface mount	YES
Temperature characteristic code	BP
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.81 mm

Preview

Download Datasheet

View All

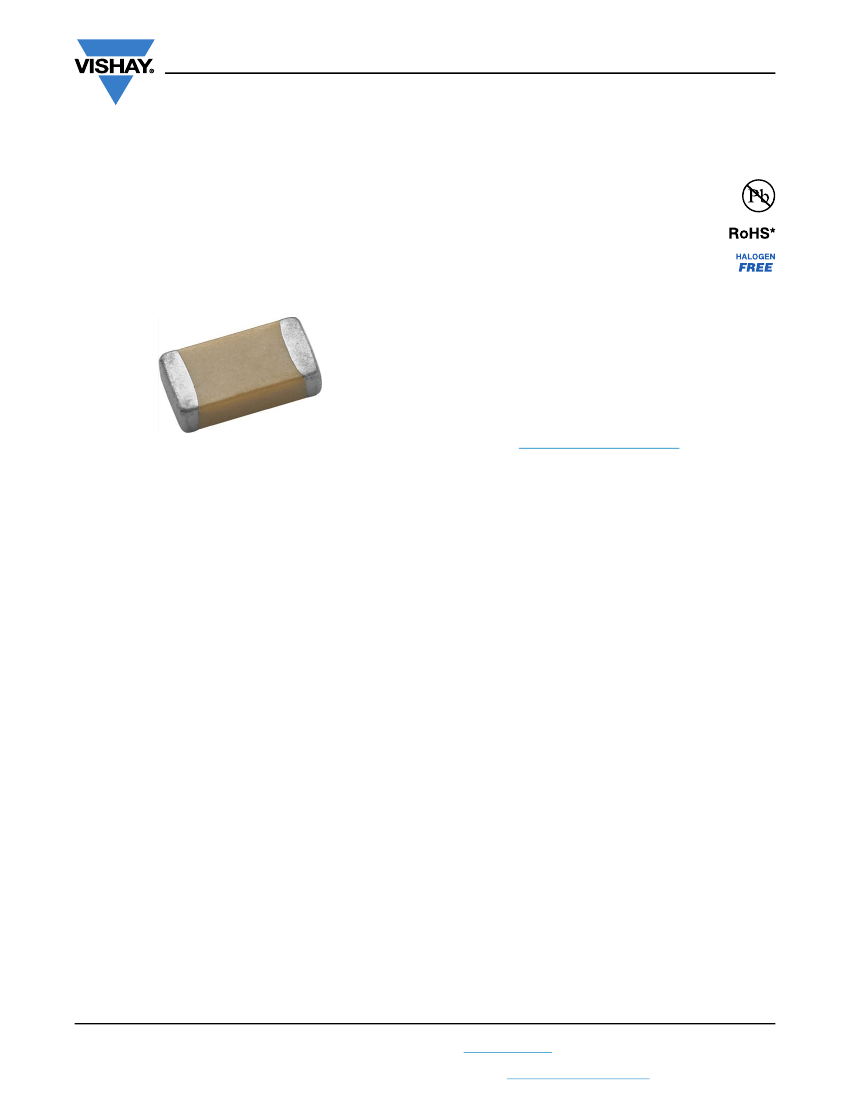

DSCC 05002

www.vishay.com

Vishay Vitramon

Surface Mount Multilayer Ceramic Chip Capacitors

High Frequency DSCC Qualified Type 05002

FEATURES

• US Defense Supply Center approved

• Federal stock control number,

CAGE CODE 2770A

• Case size 0603

• High frequency

• Excellent aging characteristics

• Tin / lead termination code “Z”

• Lead (Pb)-free terminations code “M”

• Surface mount, wet build process

• Reliable Noble Metal Electrode (NME) system

• Made with a combination of design, materials and tight

process control to achieve very high field reliability

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non-RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details.

Available

APPLICATIONS

• Broadband wireless communication

• Satellite communication

• WiFi (802.11) and WiMax (802.16)

• VolP networks and cellular base stations

• Subscriber based wireless devices

ELECTRICAL SPECIFICATIONS

Note

•

Electrical characteristics at +25 °C unless otherwise specified

Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

1.0 pF to 100 pF

Voltage Rating:

50 V

to 250 V

Temperature Coefficient of Capacitance (TCC):

BP: 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C with zero

(0) V

applied

Dissipation Factor (DF):

BP: 0.05 % max. at 1.0 V

RMS

and 1 MHz

Aging Rate:

0 % maximum per decade

Insulation Resistance (IR):

at +25 °C and rated voltage 100 000 M minimum or

1000

F,

whichever is less

at +125 °C and rated voltage 10 000 M minimum or

100

F,

whichever is less

Dielectric Strength Test:

performed per method 103 of EIA-198-2-E.

Applied test voltages



250 V

-rated: 200 % of rated voltage

Revision: 17-Aug-15

Document Number: 45069

For technical questions, contact:

mlcc@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000
