MIL-PRF-123
www.vishay.com
Vishay Vitramon

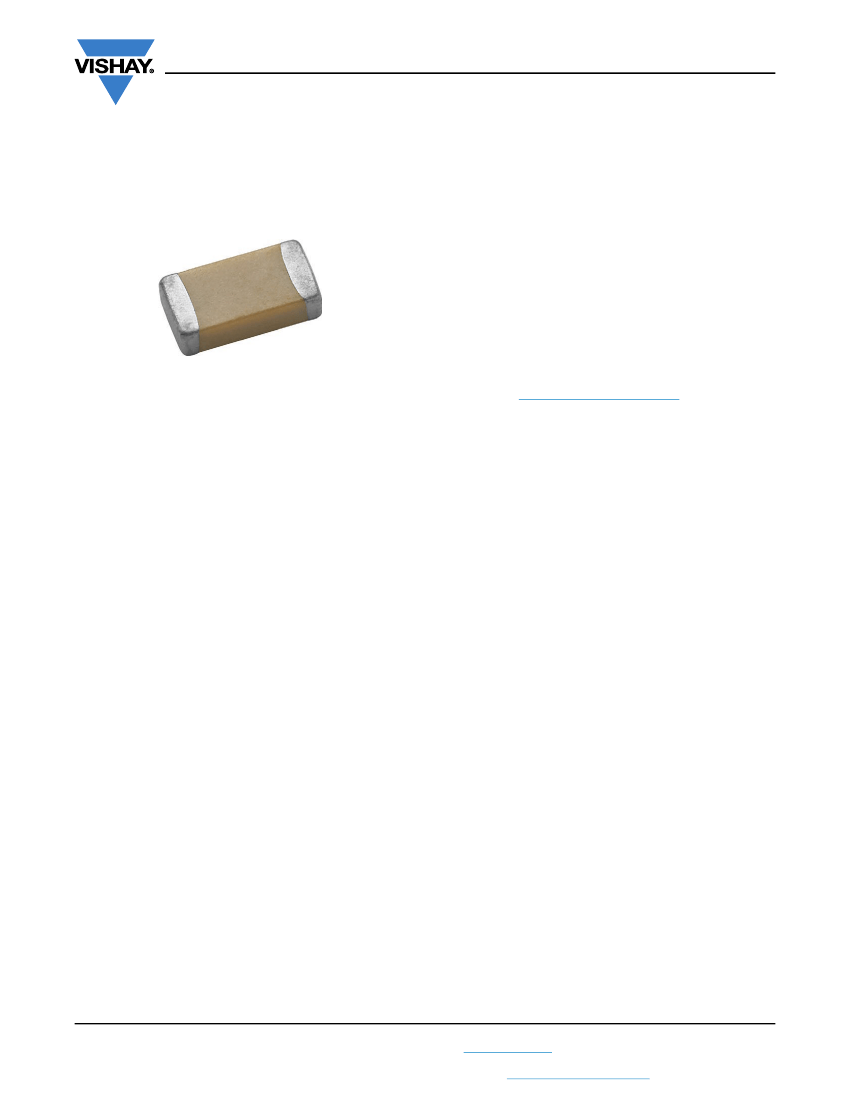

Surface Mount Multilayer Ceramic Chip Capacitors
MIL Qualified, Type MIL-123
FEATURES
• Space-level reliability
• Military qualified products
• Federal stock control number, CAGE CODE 2770A
• High reliability tested per MIL-PRF-123
• Lead-bearing (min. 4 %) termination finish “Z”
• Silver / palladium alloy finish “M”
• Guarded termination finish “S”
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Space systems
• Satellite systems
• Avionic systems
• Sonar systems
• Missiles applications
• Global positioning systems
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at +25 °C, unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
1.0 pF to 470 nF
Voltage Range:
50 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
BP: 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C,
with 0 V
DC
applied
BX: ± 15 % from -55 °C to +125 °C,
with 0 V
DC
applied
BX: +15 %, -25 % from -55 °C to +125 °C,
with 100 % rated V
DC
applied
Dissipation Factor (DF):
BP: 0.15 % maximum
BX: 2.50 % maximum
Test frequency:
1 MHz ± 50 kHz for BP capacitors
1000 pF
All other BP and BX at 1 kHz ± 50 Hz
Aging Rate:
BP: 0 % maximum per decade
BX: 1 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage 100 000 M minimum or
1000
F,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA-198-2-E.
Applied test voltages:
100 V
DC
-rated: 250 % of rated voltage
Revision: 02-Aug-2018
Document Number: 45229
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MIL-PRF-123
www.vishay.com
Vishay Vitramon
QUICK REFERENCE DATA
DIELECTRIC
BP
BP
BP
BP
BP
BP
BP
BX
BX
BX
BX
BX
BX
BX
STYLE (CASE)
CKS51 (0805)
CKS55 (1206)
CKS52 (1210)
CKS53 (1808)
CKS56 (1812)
CKS57 (1825)
CKS54 (2225)
CKS51 (0805)
CKS55 (1206)
CKS52 (1210)
CKS53 (1808)
CKS56 (1812)
CKS57 (1825)
CKS54 (2225)
MAXIMUM VOLTAGE
(V)
100
100
100
100
100
100
50
100
100
100
100
100
100
50
CAPACITANCE
MINIMUM
1.0 pF
1.0 pF
300 pF
300 pF
1200 pF
3600 pF
1100 pF
330 pF
4700 pF
5600 pF
5600 pF
27 000 pF
56 000 pF
120 000 pF
MAXIMUM
680 pF
2200 pF
3300 pF
1000 pF
10 000 pF
22 000 pF
10 000 pF
18 000 pF
39 000 pF
100 000 pF
100 000 pF
56 000 pF
470 000 pF
470 000 pF
Note
• Detail ratings see “Selection Chart”
ORDERING INFORMATION - MIL-PRF-123
M123A
MILITARY
STYLE
MIL-PRF-123
10
SLASH SHEET
BX
DIELECTRIC
B
(1)
103
CAPACITANCE
VALUE
Expressed in
picofarads (pF).
The first two
digits are
significant,
the third is a
multiplier.
R denotes
decimal place.
Examples:
1R0 = 1.0 pF
103 = 10 000 pF
104 = 100 000 pF
K
CAPACITANCE
TOLERANCE
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
J=±5%
K = ± 10 %
M = ± 20 %
See table
“Available
Tolerances”
Z
TERMINATION
W
PACKAGING
DC VOLTAGE
10 = CKS51
(0805)
11 = CKS52
(1210)
12 = CKS53
(1808)
13 = CKS54
(2225)
21 = CKS55
(1206)
22 = CKS56
(1812)
23 = CKS57
(1825)
BP
BX
B = 50 V
C = 100 V
Z = Ni barrier
with tin / lead
plate min. 4 %
lead
S = guarded
termination
M = silver /
palladium alloy
W = waffle
pack
J = full 7" reel
A = 7" reel,
customer
defined
quantity
Note
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance
Consult for questions:
mlcc@vishay.com
Revision: 02-Aug-2018
Document Number: 45229
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
