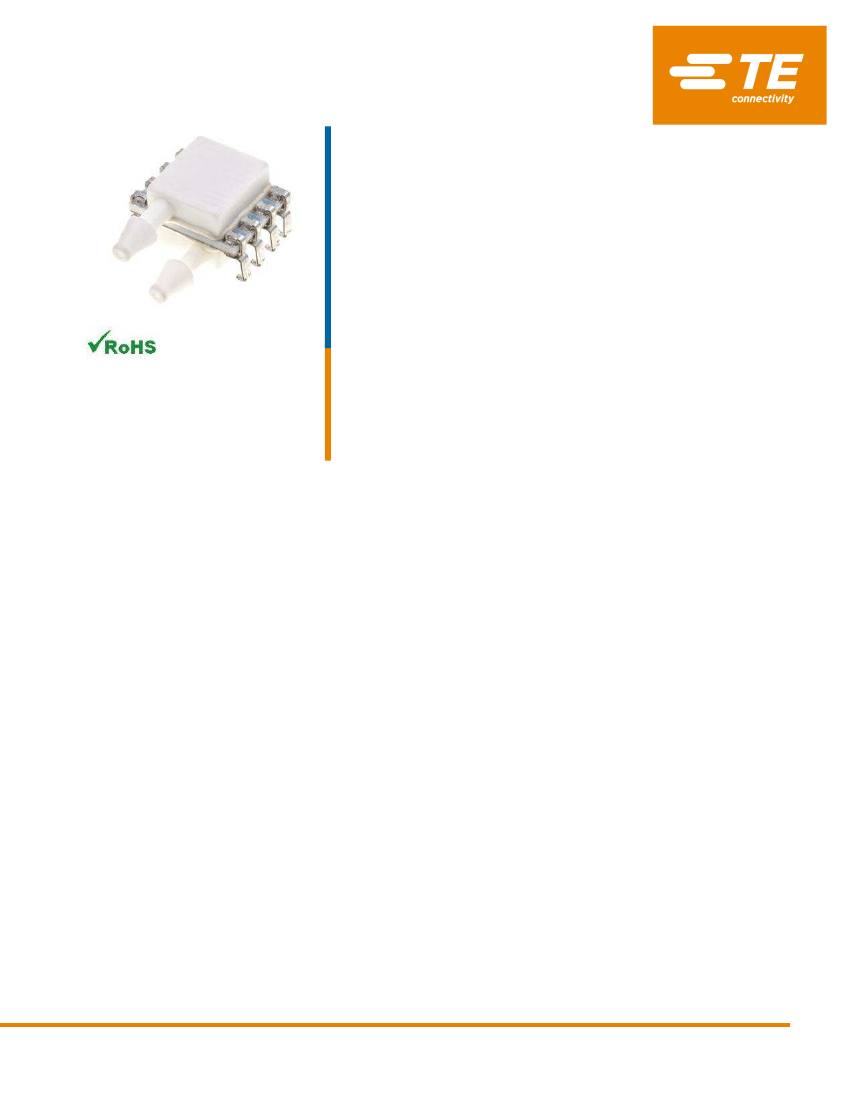

MS4525DO
SPECIFICATIONS
PCB Mounted Digital Output Transducer
Combination Temperature and Pressure
I
2
C or SPI Protocol
Differential, Gage, Absolute, Compound, &
Vacuum
Temperature Compensated
3.3 or 5.0 V
DC
Supply Voltage
Low Power Option Available (standby < 1µA)
FEATURES
PSI Pressure Ranges
PCB Mountable
Digital Output
Barbed Pressure Ports
APPLICATIONS
Blocked Filter Detection
Altitude and Airspeed Measurements
Medical Instruments
Fire Suppression System
Panel Meter
Air Movement/Environmental Controls
Pneumatic Controls
The MS4525DO is a small, ceramic based, PCB mounted
pressure transducer from Measurement Specialties.
The
transducer is built using Measurement Specialties’ proprietary
UltraStable™ process and the latest CMOS sensor conditioning
circuitry to create a low cost, high performance digital output
pressure (14bit) and temperature (11bit) transducer designed to
meet the strictest requirements from OEM customers.
The MS4525DO is fully calibrated and temperature compensated
with a total error band (TEB) of less than 1.0% over the
compensated pressure range. The sensor operates from single
supply of either 3.3 or 5.0V
DC
and requires a single external
component for proper operation
The rugged ceramic transducer is available in side port, top port,
and manifold mount and can measure absolute, gauge,
differential, vacuum or compound pressure from 1 to 150psi. The
1/8” barbed pressure ports mate securely with 3/32” ID tubing.
SENSOR SOLUTIONS
///MS4525DO
09/2017
Page 1
MS4525DO
STANDARD RANGES (PSI)
Pressure
1
2
5
15
30
50
100
150
Absolute
Gage
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP, MM
Differential
DS, SS, TP, MM
DS, SS, TP, MM
DS, SS, TP ,MM
DS, MM
DS, MM
DS, MM
DS, MM
DS, MM
Compound
Vacuum
Option Availability
-F, -L, -M
-F, -L, -M
-F, -L, -M
-F, -L, -M
-F, -L, -M
-F, -L, -M
-F, -L, -M
-F, -L, -M
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP
SS, TP, DS
See Package Configurations: DS= Dual Side Port, SS= Single Side Port, TP= Top Port, MM= Manifold Mount
Only I
2
C Protocol is Available on “L” type Pin Styles; Reference Ordering Information for Details
Pin Style “L” is only available SS and MM port types.
Pin Style “C” is only available SS,
TP and MM port types.
BLOCK DIAGRAM
SENSOR SOLUTIONS
/// MS4525DO
09/2017
Page 2
MS4525DO
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage
Output Current
Storage Temperature
Humidity
Overpressure
Burst Pressure
ESD
Solder Temperature
Conditions
T
A
= 25 °C
T
A
= 25°C
T
A
= 25°C
T
A
= 25 °C, both Ports
T
A
= 25 °C, Port 1
HBM
Min
2.7
Max
5.5
3
-40
+125
95
Not to Exceed 300
-4
+4
250°C, 5 sec max.
Unit
V
mA
°C
%RH
psi
psi
kV
Notes
Non Condensing
See Table 1
EN 61000-4-2
TABLE 1- BURST PRESSURE BY RANGE AND PACKAGE STYLE
Range
001
002
005
015
030
050
100
150
DS
20
20
15
45
90
150
300
300
SS, TP, MM
20
20
20
90
200
300
300
300
Unit
psi
psi
psi
psi
psi
psi
psi
psi
ENVIRONMENTAL SPECIFICATIONS
Parameter
Mechanical Shock
Mechanical Vibration
Thermal Shock
Life
MTTF
Conditions
Mil Spec 202F, Method 213B, Condition C, 3 Drops
Mil Spec 202F, Method 214A, Condition 1E, 1Hr Each Axis
100 Cycles over Storage Temperature, 30 minute dwell
1 Million FS Cycles
>10Yrs, 70 ºC, 1.188 Million Pressure Cycles, 120%FS Pressure
SENSOR SOLUTIONS
/// MS4525DO
09/2017
Page 3
MS4525DO
PERFORMANCE SPECIFICATIONS
Supply Voltage
1
: 5.0V or 3.3 V
DC
Reference Temperature: 25°C (unless otherwise specified)
PARAMETERS
Accuracy
Total Error Band
Burst pressure
Common mode pressure
Load Resistance (R
L
)
Long term stability (offset & span)
Compensated Temperature
Operating Temperature
Weight
Update time
Start time to data ready
Solder temperature
Media
-10
-25
3
0.5
8.4
250
o
C MAX 5 SEC.
Non-Corrosive Dry Gases Compatible with Ceramic, Silicon, Borosilicate Glass,
RTV, Gold, Aluminum and Epoxy. See “Wetted Material by Port Designation” chart
below.
10
±0.5
85
105
MIN
-0.25
-1
SEE TABLE 1
NOT TO EXCEED 300 PSI
kΩ
% SPAN
o
o
TYP
MAX
0.25
1
UNITS
% SPAN
% SPAN
NOTES
2
3,7
C
C
6
6
grams
ms
ms
Notes
1. Proper operation requires an external capacitor placed as shown in Connection Diagram. Output is not ratiometric to supply voltage.
2. The maximum deviation from a best fit straight line (BFSL) fitted to the output measured over the pressure range at 25C. Includes all
errors due to pressure non linearity, hysteresis, and non repeatability.
3. Total pressure error band includes all accuracy errors, thermal errors over the compensated temperature range and span and offset
calibration tolerances. For ideal sensor output with respect to input pressure and temperature, reference Transfer Function charts below.
TEB values are valid only at the calibrated supply voltage.
4. The deviation from a best fit straight line (BFSL) fitted to the output measured over the compensated temperature range.
5. For errors beyond the compensated temperature range, see Extended Temperature Multiplier chart below.
6. Start time to data ready is the time to get valid data after POR (power on reset). The time to get subsequent valid data is then specified
by the update time specification.
7. This product can be configured for custom OEM requirements, contact factory for lower power consumption or higher accuracy.
CONNECTION DIAGRAM
Notes
1.
Place 100nF capacitor between Supply and GND to within 2 cm of sensor.
SENSOR SOLUTIONS
/// MS4525DO
09/2017
Page 4
MS4525DO

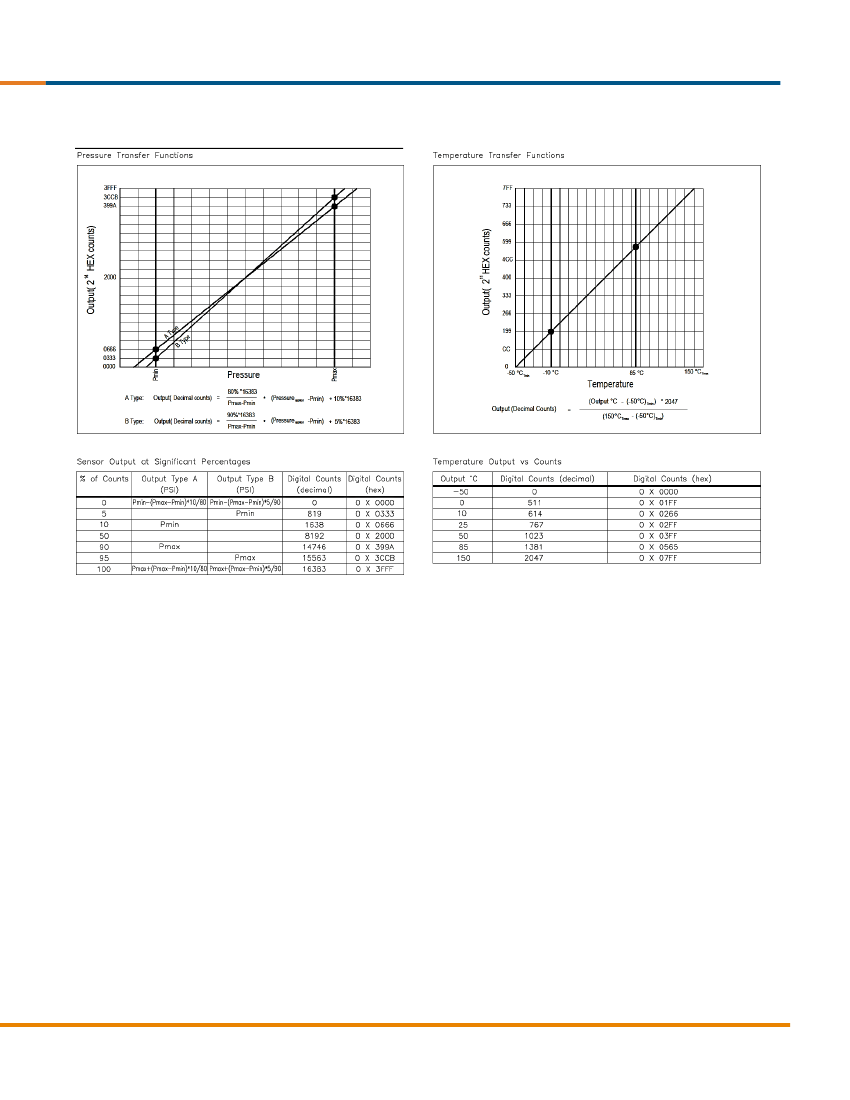

PRESSURE AND TEMPERATURE TRANSFER FUNCTION
Gage, Differential and Compound Pressure Types
SENSOR SOLUTIONS
/// MS4525DO
09/2017
Page 5
