X: Tape and reel packing (picked from 1/2/3/4 pin side)
Z: Tape and reel packing (picked from 5/6/7/8 pin side)
0
ASCTB7E 201209-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
GQ (AGQ)
TYPES
1. Standard PC board terminal
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
Single side stable
Part No.
AGQ2001H
AGQ20003
AGQ2004H
AGQ20006
AGQ20009
AGQ20012
AGQ20024
1 coil latching
Part No.
AGQ2101H
AGQ21003
AGQ2104H
AGQ21006
AGQ21009
AGQ21012
AGQ21024
High sensitivity single side stable
Part No.
AGQ2601H
AGQ26003
AGQ2604H
AGQ26006
AGQ26009
AGQ26012
AGQ26024
2. Surface-mount terminal
1) Tube packing
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
AGQ200 1H
AGQ200 03
AGQ200 4H
AGQ200 06
AGQ200 09
AGQ200 12
AGQ200 24
1 coil latching
Part No.
AGQ210 1H
AGQ210 03
AGQ210 4H
AGQ210 06
AGQ210 09
AGQ210 12
AGQ210 24
High sensitivity single side stable
Part No.
AGQ260 1H
AGQ260 03
AGQ260 4H
AGQ260 06
AGQ260 09
AGQ260 12
AGQ260 24
: For each surface-mounted terminal identification, input the following letter. A type: A, S type: S
Standard packing: Tube: 50 pcs.; Case: 1,000 pcs.
2) Tape and reel packing
Nominal coil voltage
1.5V DC
3V DC
4.5V DC
6V DC
9V DC
12V DC
24V DC
Single side stable
Part No.
AGQ200 1HZ
AGQ200 03Z
AGQ200 4HZ
AGQ200 06Z
AGQ200 09Z
AGQ200 12Z
AGQ200 24Z
1 coil latching
Part No.
AGQ210 1HZ
AGQ210 03Z
AGQ210 4HZ
AGQ210 06Z
AGQ210 09Z
AGQ210 12Z
AGQ210 24Z
High sensitivity single side stable
Part No.
AGQ260 1HZ
AGQ260 03Z
AGQ260 4HZ
AGQ260 06Z
AGQ260 09Z
AGQ260 12Z
AGQ260 24Z
: For each surface-mounted terminal identification, input the following letter. A type: A, S type: S
Standard packing: Tape and reel: 900 pcs.; Case: 1,800 pcs.
Notes: 1. Tape and reel packing symbol “-Z” is not marked on the relay. “X” type tape and reel packing (picked from 1/2/3/4-pin side) is also available.
2. Please inquire if you require a relay, between 1.5 and 24 V DC, with a voltage not listed.
2 A 30 V DC, 1 A 30 V DC, 0.3 A 125 V AC (resistive load)
60 W (DC), 30 W (DC), 37.5 V A (AC) (resistive load)
110 V DC, 125 V AC
2A
10µA 10 mV DC
140mW (1.5 to 12 V DC), 230mW (24 V DC)
100mW (1.5 to 12 V DC), 120mW (24 V DC)
Min. 1,000MΩ (at 500V DC)
Measurement at same location as “Initial breakdown voltage” section.
750 Vrms for 1min. (Detection current: 10mA)
1,500 Vrms for 1min. (Detection current: 10mA)
1,000 Vrms for 1min. (Detection current: 10mA)
1,500 V (10×160µs) (FCC Part 68)
2,500 V (2×10µs) (Telcordia)
Max. 50°C
(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 1A.)
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
Max. 4 ms [Max. 4 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)
(without diode)
Min. 750 m/s
2
(Half-wave pulse of sine wave: 6 ms; detection time: 10µs.)
Min. 1,000 m/s
2
(Half-wave pulse of sine wave: 6 ms.)
10 to 55 Hz at double amplitude of 3.3 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 5 mm
Min. 5
×
10
7
(at 180 cpm)
Min. 5
×
10
4
(2 A 30 V DC resistive), Min. 10
5
(1 A 30 V DC resistive),
Min. 10
5
(0.3 A 125 V AC resistive) (at 20 cpm)
Ambient temperature:
(Single side stable, 1 coil latching type) –40°C to +85°C
–40°F to +185°F
(High sensitivity single side stable type) –40°C to +70°C
–40°F to +158°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 cpm
Approx. 1 g
.035 oz
Rating
Temperature rise (at 20°C
68°F)
Operate time [Set time] (at 20°C
68°F)
Release time [Reset time] (at 20°C
68°F)
Functional
Destructive
Functional
Vibration resistance
Destructive
Mechanical
Shock resistance
Electrical
Mechanical
characteristics
Expected life
Conditions
Conditions for operation, transport and storage*
2
Max. operating speed (at rated load)
Unit weight
Notes: *1 This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2 Refer to 6. Conditions for operation, transport and storage mentioned in AMBIENT ENVIRONMENT (Page 24).

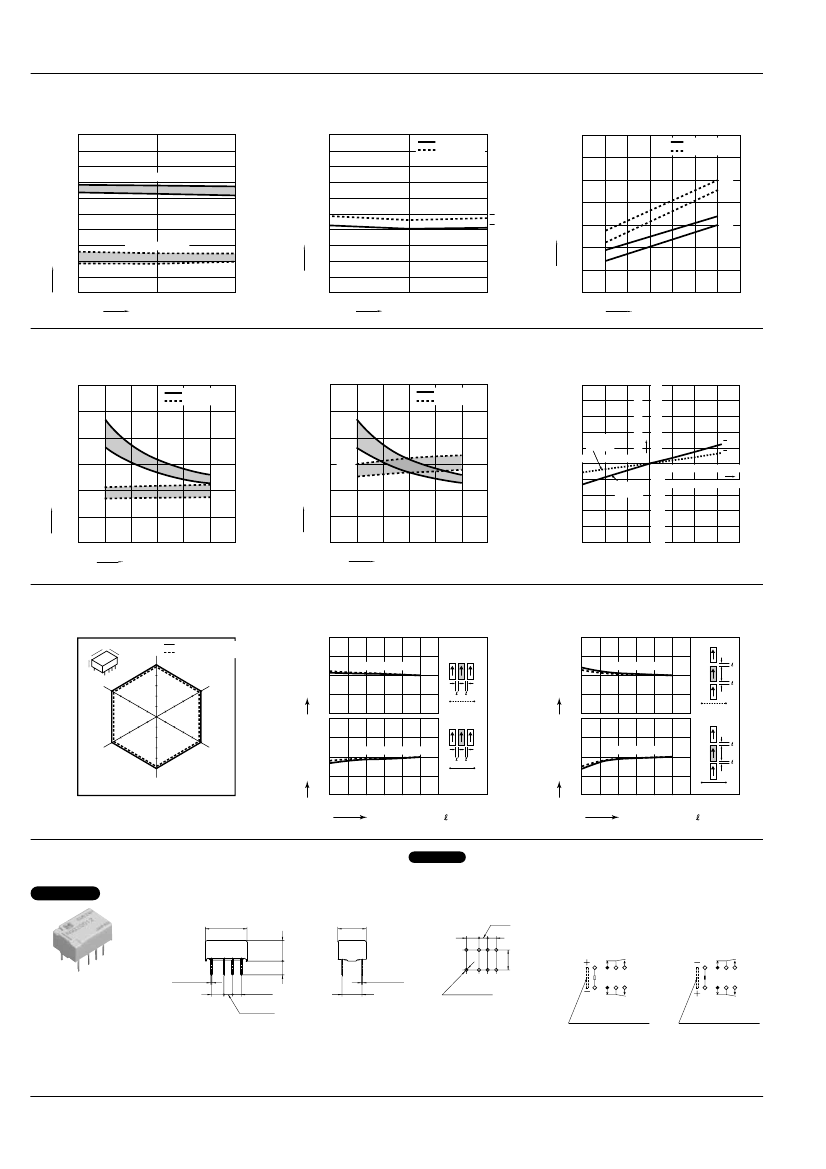

REFERENCE DATA
1. Max. switching capacity
* Max. switching capacity is 2A 30V DC.
100
No. of operations,
×
10
4
DC resistive load
AC resistive load
4
50
40
30
DC 30V resistive load
20
Pick-up voltage
3
Max.
Min.
2
AC 125V
resistive load
2. Life curve
3. Mechanical life
Tested sample: AGQ200A4H, 6 pcs.
Operating speed: 180 cpm
Switching current, A
1.0
0.3
Voltage, V
10
1
Drop-out voltage
Max.
Min.
30
100
Contact voltage, V
0
0.2
0.4
0.6
0.8
1.0
1.2
0
0
10
30
50
Switching current, A
No. of operations,
×10
4
ASCTB7E 201209-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
GQ (AGQ)
4. Electrical life (1A 30V DC resistive load)
Tested sample: AGQ200A4H, 6 pcs.
Operating speed: 20 cpm
5. Coil temperature rise
Change of contact resistance
100
90
Contact resistance, mΩ
80
70
60
50
40
30
20
10
10
5
No. of operations,
×10
4
10
0
100
110
120
130
140
150
X
X
N.C. contact
N.O. contact
Temperature rise,
°C
Change of pick-up and drop-out voltage
Ratio against the rated voltage, %V
100
90
80
70
60
50
40
30
20
10
0
0
5
No. of operations,
×10
4
Tested sample: AGQ200A4H, AGQ200A24, 6 pcs.
Point measured: Inside the coil
Ambient temperature: Room temperature
70
60
50
40
30
20
1A
0A
4.5V DC type
24V DC type
Pick-up voltage
Max.
Min.
1A
0A
Drop-out voltage
Max.
Min.
10
0
0
Coil applied voltage, %
6-(1). Operate and release time (without diode)
Tested sample: AGQ2004H, 10 pcs.
3
Operate and release time, ms
6-(2). Operate and release time (with diode)
Tested sample: AGQ2004H, 10 pcs.
3
Operate and release time, ms
7. Ambient temperature characteristics
Tested sample: AGQ200A4H, 6 pcs.
50
40
30
20
10
x
x
Operate time
Release time
Max.
Operate time
Release time
Max.
2
Min.
2
Min.
Max.
Min.
Drop-out
voltage
-40 -20
0
Rate of change, %V
1
Max.
Min.
1
Pick-up
voltage
60
80 100
20 40
-10
Ambient temperature,
°C
-20
-30
-40
0
70
80
90
100
110
120
130
0
70
80
90
100
110
120
130
-50
Coil applied voltage, %V
Coil applied voltage, %V
8. Malfunctional shock
Tested sample: AGQ200A4H, 6 pcs.
9-(1). Influence of adjacent mounting
Tested sample: AGQ20012, 6 pcs.
Rate of change, %V
10
5
Pick-up voltage
0
-5
-10
10
5
0
-5
-10
0
Drop-out voltage
OFF
2
4
6
8 10 12
.079 .157 .236 .315 .394 .472
Inter-relay distance , mm
inch
ON
OFF
OFF
ON
ON
9-(2). Influence of adjacent mounting
Tested sample: AGQ20012, 6 pcs.
Rate of change, %V
10
5
Pick-up voltage
0
-5
-10
10
5
0
-5
-10
0
Drop-out voltage
OFF
ON
ON
Z X
Z'
Y
Y'
X'
Y
1,000m/s
2
Deenergized condition
Energized condition
X
1,000m/s
2
Z
1,000m/s
2
ON
OFF
1,000m/s
2
Z'
1,000m/s
2
Y'
1,000m/s
2
X'
Rate of change, %V
Rate of change, %V
OFF
2
4
6
8 10 12
.079 .157 .236 .315 .394 .472
Inter-relay distance , mm
inch

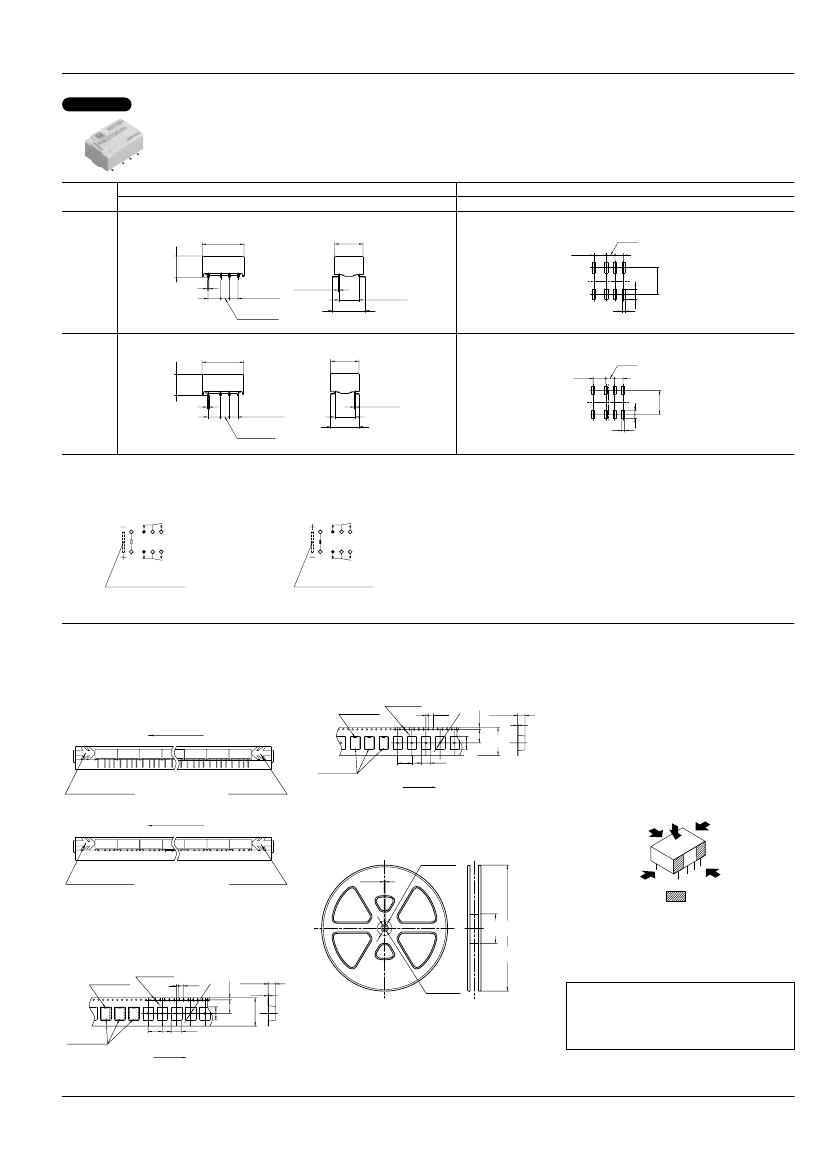

DIMENSIONS
(mm
inch)
1. PC board terminal
CAD Data
10.60±0.3
.417±.012
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
5.20±0.2
.205±.008
7.20±0.3
.283±.012
PC board pattern
2.20
.087
3.20
.126
2.20
.087
5.08
.200
0.85 dia.
.033 dia.
Schematic (Bottom view)
Single side stable
High sensitivity
single side stable
1
2 3 4
1 coil latching
1
2 3 4
0.40±0.1
.016±.004
3.20±0.15
.126±.006
2.20±0.15
.087±.006
3.50±0.3
2.20±0.15
.138±.012
.087±.006
0.20±0.1
.008±.004
5.08±0.15
.200±.006
Tolerance:
±0.1
±.004
8
7 6 5
8
7 6 5
Direction indication
Direction indication
(Deenergized condition)
(Reset condition)
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB7E 201209-T
GQ (AGQ)
2. Surface-mount terminal
CAD Data
Type
External dimensions
Single side stable/1 coil latching/High sensitivity single side stable
10.60±0.3
.417±.012
7.20±0.3
.283±.012
Suggested mounting pad (Tolerance:
±0.1
±.004)
Single side stable/1 coil latching/High sensitivity single side stable
